10 mm slot sensor with LM393 comparator
search
  • 10 mm slot sensor with LM393 comparator
ID: 1196398
zł5.90
Tax included

zł4.80 tax excl.

The modPhotoelectric sensor with an LM393 comparator and a 10 mm slot width enables reliable detection of interrupters in applications requiring pulse counting, position detection, and speed measurement. Thanks to its digital TTL output and mounting holes, it is suitable for direct integration with microprocessor systems. modPhotoelectric

4 weeks
Awaiting delivery

Description

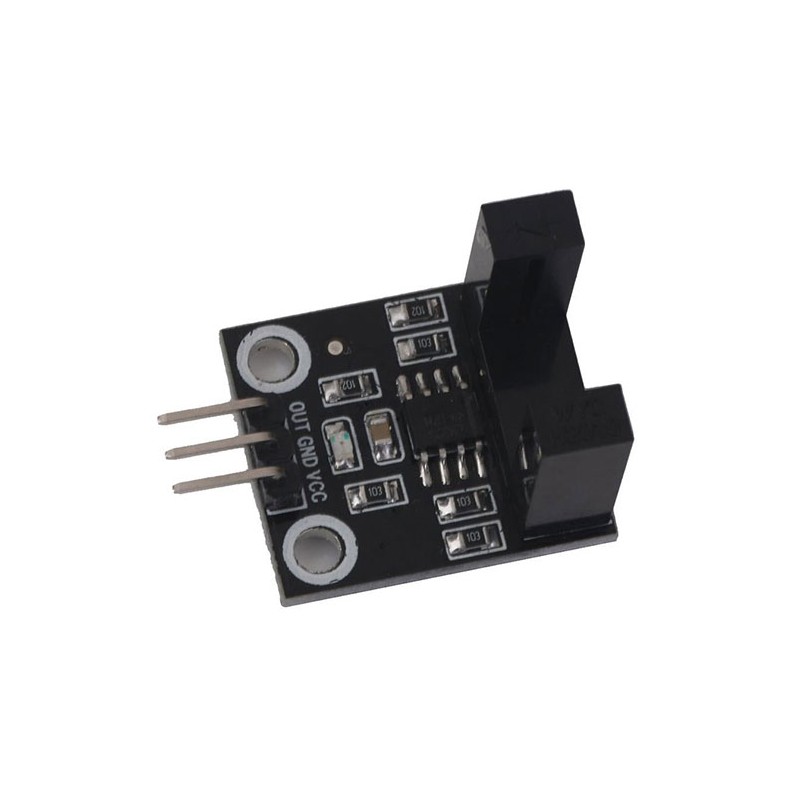

Slot-type optoelectronic sensor with a 10 mm slot width, designed for rotational speed detection, pulse counting, and limit switch functions in automation and robotics systems. The module is based on an optoelectronic sensor with a built-in LM393 comparator, ensuring stable operation within a supply voltage range of 3.3–5 V. The digital (0/1) output signal can be directly connected to a microcontroller. A built-in LED indicates the module's output state. The design with mounting holes facilitates installation in mechanical assemblies.

Properties

  • Sensor type: slot-type optoelectronic
  • Slot width: 10 mm
  • Detection system: LM393 comparator (operates over a wide voltage range)
  • Supply voltage: 3.3–5 V DC
  • Output: digital TTL signal (0/1)
  • Maximum output current: >15 mA
  • Logic state:
    • no interrupter – output low (LED on)
    • interrupter present – output high (LED off)
  • Board dimensions: 23×20 mm
  • Mounting holes: 2 pcs
  • Applications: rotational speed measurement, pulse counting, limit switches, position detection
