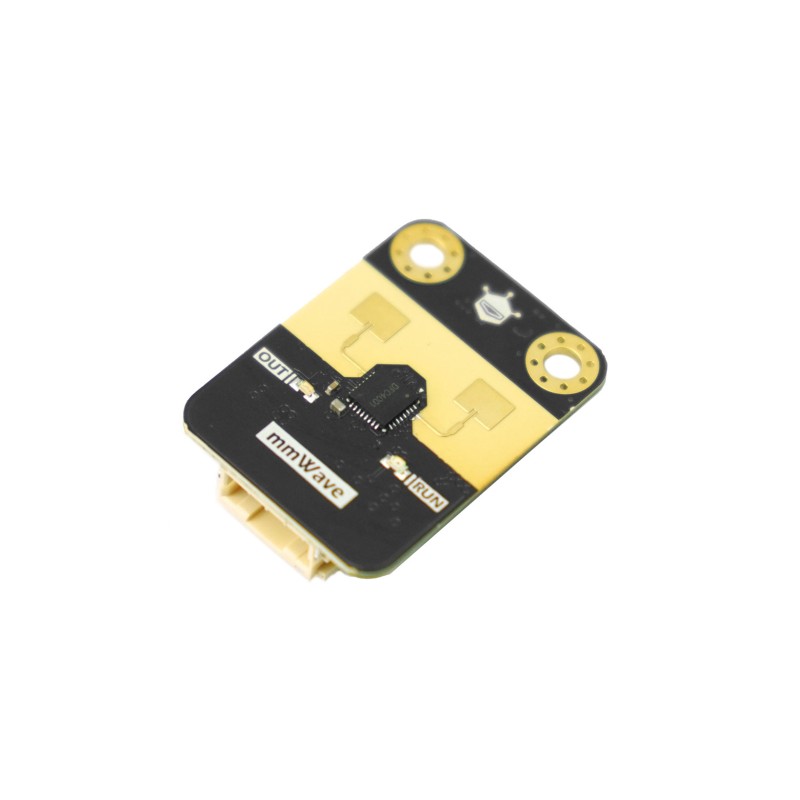

Gravity: mmWave C4001 24GHz Human Presence - module with human presence sensor
ID: 1196973
5902186309135
zł55.71
Tax included
zł45.29 tax excl.
The Gravity Occupancy Sensor uses 24 GHz FMCW radar technology, enabling precise presence detection at a distance of up to 8 meters and movement and distance measurement up to 12 meters. Thanks to its high resistance to environmental interference, it works reliably regardless of light, temperature or dust, effectively detecting both static and dynamic objects. Compatibility with Arduino, ESP32, Raspberry Pi and a simple Gravity interface make it an ideal solution for intelligent lighting, building automation and security systems. DFRobot SEN0610
Description
The Gravity: C4001 presence sensor is a modern device utilizing 24 GHz millimeter-wave radar technology. It offers a horizontal detection angle of 100°, with presence detection range of up to 8 meters and motion detection and distance measurement up to 12 meters. By employing FMCW (Frequency Modulated Continuous Wave) modulation, the sensor accurately detects both distance and speed of moving objects.
Unlike traditional infrared sensors, the C4001 can effectively detect both static and moving objects regardless of environmental conditions such as light, temperature, dust, or noise. It is ideal for applications requiring reliable human presence detection such as smart lighting, building automation, and security systems.
The device is compatible with popular development platforms like Arduino, Raspberry Pi, ESP32, and ESP8266, and communicates via I2C or UART interfaces. Thanks to the Gravity (PH2.0) connector, integration is fast and convenient. The sensor can be installed in various orientations—horizontal, ceiling-mounted, or at an angle—allowing flexible deployment. Its compact size makes it suitable for IoT and embedded system applications.
Features
- Operating frequency: 24 GHz (FMCW)
- Detection angle: 100° × 80°
- Presence detection range: up to 8 m
- Motion and distance detection range: up to 12 m
- Speed measurement range: 0.1 – 10 m/s
- Communication interface: I2C (address 0x2A/0x2B) and UART (baud rate 9600)
- Connector: Gravity PH2.0
- Operating voltage: 3.3V / 5V
- Operating temperature: -40°C to +85°C
- Resistant to interference: dust, light, temperature, noise, humidity
- Compact dimensions: 22 × 30 mm
Kit contains
- Gravity: mmWave 24GHz Human Presence Sensor
- Gravity-4P I2C/UART cable
1196973
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
