2x1.2A DC Motor Driver - DC motors driver with Gravity connectors
ID: 570406
5902186313552
zł40.02
Tax included
zł32.54 tax excl.
2x1.2A DC Motor Driver is a dual controller of DC motors with a Gravity connector, supplied with 2.5 ... 12V voltage with a maximum current consumption of 1.2A (3.2A peak) per channel. DFRobot DRI0044-A
Description

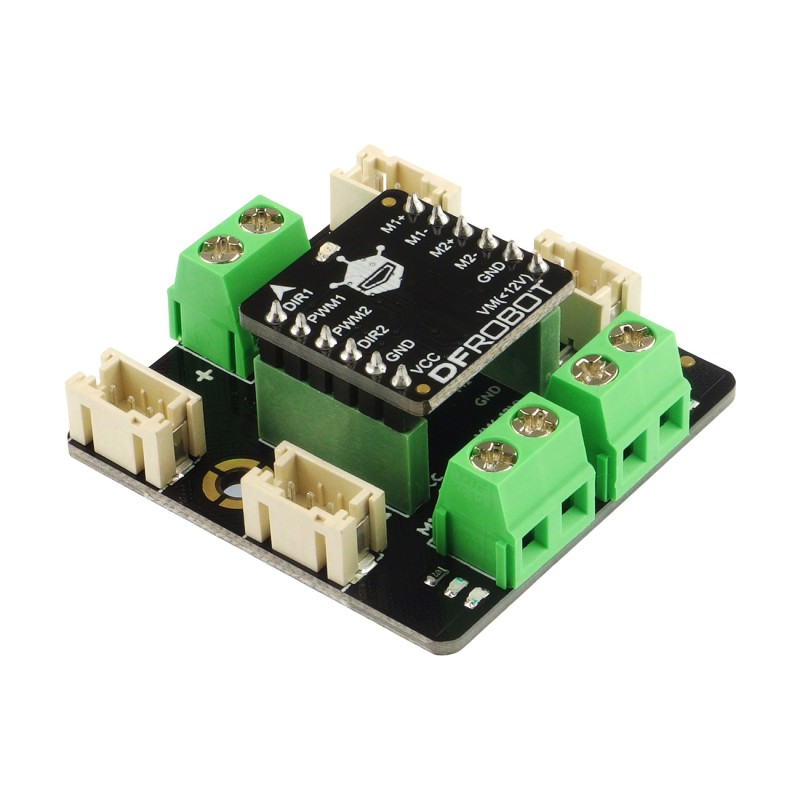

2x1.2A DC Motor Driver with Gravity Connector is a double driver for DC motors with a Gravity connector. The module contains a two-channel TB6612FNG H bridge. It can control motors powered with a voltage of 2.5 ... 12 V with a maximum current consumption of 1.2 A (3.2 A at peak) on each of the two channels. At Gravity, signals were output to control the direction and speed of each of the engines. The module consists of a 2x1.2A DC Motor Driver with goldpin connectors and stands with signal connectors and screw connectors for connecting motors.
properties
- Based on the TB6612FNG chip
- Supply voltage for motors: 2.5 ... 12 V
- Number of channels: 2
- Maximum current: 1.2A (per channel, continuous operation)
- Inrush current / peak current: 2A (continuous pulse) / 3.2A (single pulse)
- Module power supply: 2.7 ... 5.5 V
- Dimensions: 40 × 40 mm
Included
- 2x1.2A DC Motor Driver module
- Expansion board with connectors
- 4 Gravity connection cables
570406
Data sheet
- Output current
- 1,2 A
- Number of channels
- 2
- Supply voltage min
- 2,5 V
- Supply voltages max
- 12 V
