modL298N
ID: 205079
5906623475988
zł12.60
Tax included
zł10.24 tax excl.

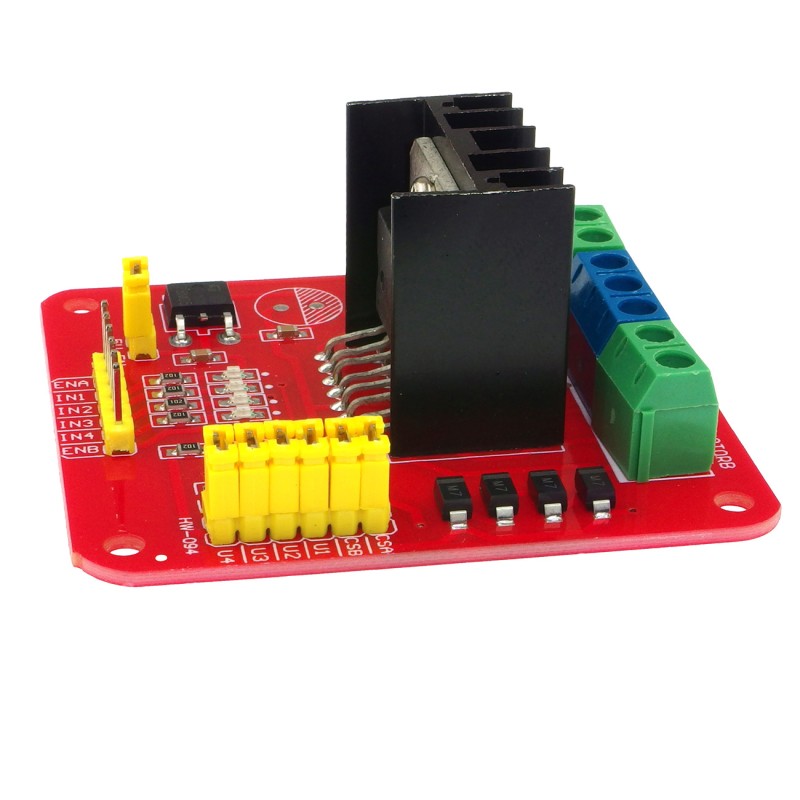

Dual H-Bridge motor driver board, 2A, 36V max, L298N, RoHS
modL298N
Dual H-Bridge motor driver board, L298N, RoHS
This Dual H-Bridge Motor Driver Shield, which based on H-bridge driver Chip L298N Motor Driver Integrated Circuit, is a usefull module for controlling of robotics and mechanics. It can drive two brushed DC motors or one 4-wire two-phase stepper motor. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors.Both motors can be driven simultaneously while set to a different speed and direction. All driver lines are diode protected from back EMF.
Features:
- Driver power supply: +6V to +35V
- Driver peak current: 2A
- Max drive power: 25W
- FWD protection
- Heavy load Heat sink
- Power selection switch
- 4 pull up resistor switch
- 2 DC motor/ 4 coil dual phrase stepper motor output
- Motor direction indication LED
- Dimension: 60mm*54mm
- Driver weight: ~48g
Contents:
- modL298N Board
Download:
205079
Data sheet
- Output current
- 2A
- Number of channels
- 2
- Supply voltage min
- 5 V
- Supply voltages max
- 35 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
