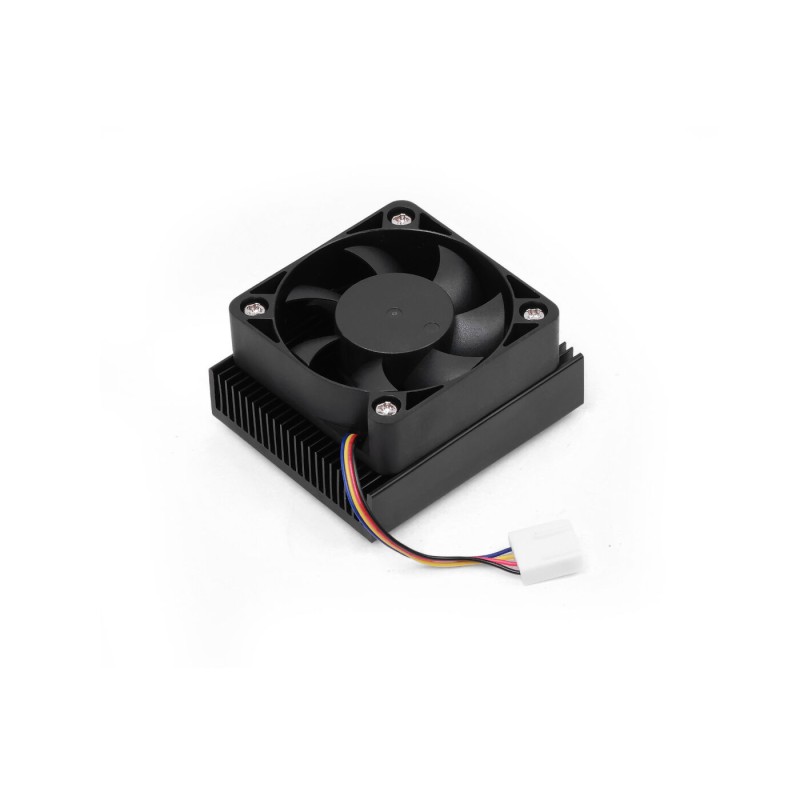

Aluminum Heatsink with Fan - radiator with fan for Jetson Orin - SeeedStudio 100021109
ID: 1203700
zł134.27
Tax included
zł109.16 tax excl.
Aluminum heatsink with fan for NVIDIA Jetson Orin NX/Nano, designed for use with modules with increased power up to 40W. It provides effective heat dissipation thanks to a solid aluminum heatsink and a 16.6 CFM fan, enabling stable operation in ambient temperatures up to 50°C. Powered by 12V via a 4-pin JST-XH connector, it is compatible with reComputer Super J401 and reComputer Robotics J401 boards. SeeedStudio 100021109
Description
Aluminum heatsink with fan for NVIDIA Jetson Orin NX/Nano (Super Mode) is a high-performance cooling solution designed for operating modules in enhanced performance mode. The system is optimized for use with Jetson Orin™ NX and Jetson Orin™ Nano modules in Super Mode, where power consumption and heat generation are significantly higher than in standard configurations. Thanks to its solid aluminum construction, the heatsink effectively dissipates heat from the SoC, ensuring stable and safe system operation. The high-efficiency fan provides an airflow of up to 16.6 CFM, enabling effective cooling even at maximum power consumption of up to 40W.
The solution is designed to maintain full module performance at ambient temperatures of up to 50°C. This makes it ideal for industrial, robotics, and edge AI applications operating in demanding environmental conditions. The heatsink is compatible with the reComputer Super J401 Carrier Board and the reComputer Robotics J401 Carrier Board, ensuring seamless integration with popular development platforms. The fan is powered via a JST-XH 4-pin (2.54 mm) connector at 12 V. Its compact dimensions allow installation in enclosures with limited space. The kit includes all necessary mounting components, enabling quick and convenient installation without additional accessories. This is a reliable solution for projects requiring maximum operational stability and sustained high computing performance in Super Mode.
Features
- Module compatibility: Jetson Orin™ NX / Jetson Orin™ Nano (Super Mode)
- Compatible carrier boards: reComputer Super J401 Carrier Board, reComputer Robotics J401 Carrier Board
- Maximum power dissipation: up to 40 W
- Supported ambient temperature: up to 50°C
- Rated voltage: 12 V
- Rated current: 180 mA
- Maximum airflow: 16.6 CFM
- Connector: JST-XH-4pin (2.54 mm)
- Heatsink material: aluminum
- Dimensions: 59 × 51 × 30 mm
Kit contains
- Heatsink with fan
- Heatsink bracket
- Thermal pad
- 5 × Mounting screws
