New products
New products
zł609.76 tax excl.
Portable instrument for measuring inductance, capacitance and resistance. It is equipped with a 2.8-inch TFT LCD display. Hantek 1832C
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Portable instrument for measuring basic parameters of electronic components, such as inductance, capacitance and resistance. It is equipped with a 2.8-inch TFT LCD display, which shows the measured parameters and the operating status of the device. It offers manual and automatic modes with measurement rates of 4 times/s, 2 times/s or 1 time/s. It has relatively wide measurement ranges - the user can measure inductance up to 2000 H, capacitance up to 20 mF and resistance up to 20 MΩ. The instrument has a built-in rechargeable battery and is charged via a USB Type C connector. It is useful as a mobile tester in workshops and in the field.
Features
- Test frequency: 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz
- Accuracy: 0.30%
- Equivalent circuit: serial, parallel
- Test level: 0.6Vrms
- Measurement method: manual, automatic
- Display screen: 2.8 inch TFT LCD
- Main parameter L/C/R/Z
- Equivalent parameter X/D/Q/θ/ESR
- Inductance measurement (L): 0 to 2000 H
- Capacitance measurement (C): 0 to 20 mF
- Resistance measurement (R): 0 to 20 MΩ
- Measurement speed: high (4 times/s), intermediate (2 times/s), low (1 time/s)
- Function: reset, open circuit calibration, short circuit calibration
- Test terminal configuration: 3 terminals, 5 terminals
- Power supply: built-in rechargeable battery
- Charging: USB type C
Kit contains
- Hantek 1832C LCR meter
- Cover
- Short circuit board
- Crocodile cables
- USB type C power supply
You might also like
Portable digital oscilloscope with built-in multimeter. It has two measurement channels with a bandwidth of 40 MHz and a sampling rate of 250 MSa/s. Hantek 2C42
Digital oscilloscope. It has two measurement channels with 150 MHz bandwidth. Hantek DSO2C15
Other products in the same category (16)
Vector network analyzer with two ports. It can perform measurements at frequencies from 50 kHz to 3 GHz. Equipped with an IPS LCD display, it can be connected to a computer via a USB connector. Seeed Studio 113991034
No product available!
Quick 492G station designed for testing personal grounding in industrial conditions
No product available!
A detector that can detect hidden objects behind walls, such as metals, live electrical cables and wood. Equipped with a display with indicators and an audible alarm. Fnirsi WD-02
No product available!
The PZEM-031 energy consumption meter is a device for internal use with a large LCD display that measures voltage, current, active power and energy in the voltage range of 6.5-100V DC and current 0-20A. It comes with power alarm, data memory and backlight control functions, but does not include additional cables or accessories.
The meter measures the earth resistance and soil resistivity. Uni-T UT572
No product available!
Sound level meter (sonometer). Used to measure industrial and environmental noise levels. Uni-T UT352
No product available!
Portable hardness tester using the Richter hardness principle to measure the hardness of metals. Equipped with a 2.8-inch display and Bluetooth communication. Hantek HT360C
Test probes with silver-plated brass tips are a high-quality tool for every electronics professional. Their precision, durability and resistance to high temperatures make them a reliable choice for specialists requiring the highest accuracy and reliability in their measurement work. YT-73077

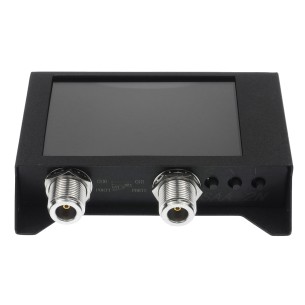

Vector network analyzer with two ports. It can perform measurements for frequencies from 50 kHz to 3 GHz. Equipped with an LCD display, it can be connected to a computer via USB. Nano V2 2.8"
