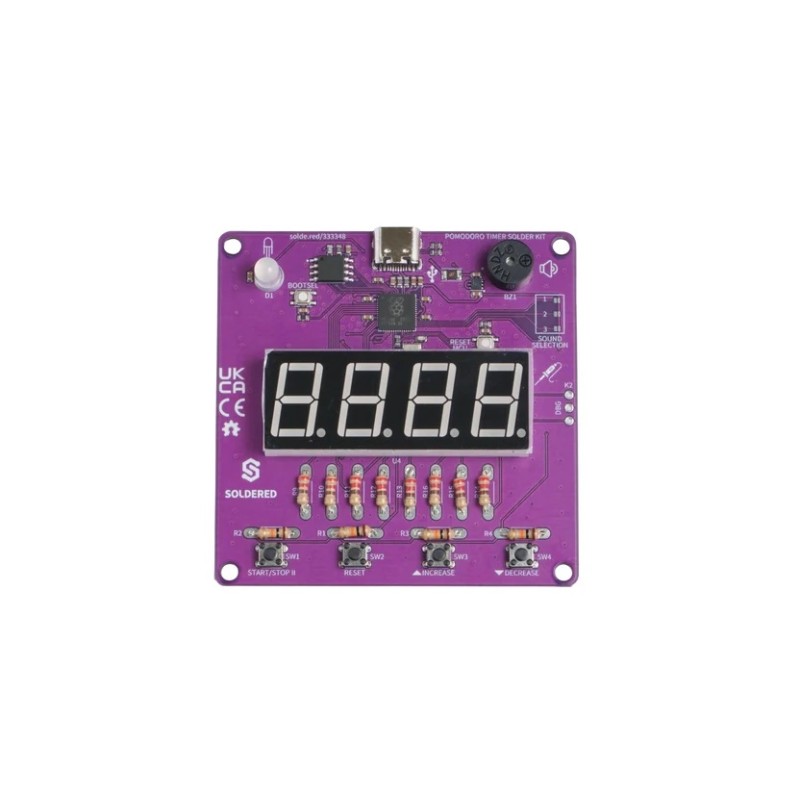

DIY soldering kit for building a programmable Pomodoro timer based on the RP2040 microcontroller. Features a 4-digit 7-segment display, WS2812B RGB LED, piezo buzzer, four control buttons and USB-C. Programmable in MicroPython. Soldered 333348

Delivery date unknown
Out-of-Stock

Description

The device Pomodoro Timer Solder Kit by Soldered is a DIY soldering kit for building a programmable timer based on the Pomodoro technique. The circuit is built around the RP2040 microcontroller with two Arm Cortex-M0+ cores running at up to 133MHz and 264KB of SRAM. Time is displayed on a 4-digit 7-segment display, while the default configuration uses a 25-minute work period followed by a 5-minute break.

Work and break times can be adjusted in 5-minute increments. Four buttons provide start and pause, reset, and time increase and decrease functions. A WS2812B RGB LED indicates the current timer state, while the onboard buzzer provides audible notifications. One of four melodies can be selected using jumpers.

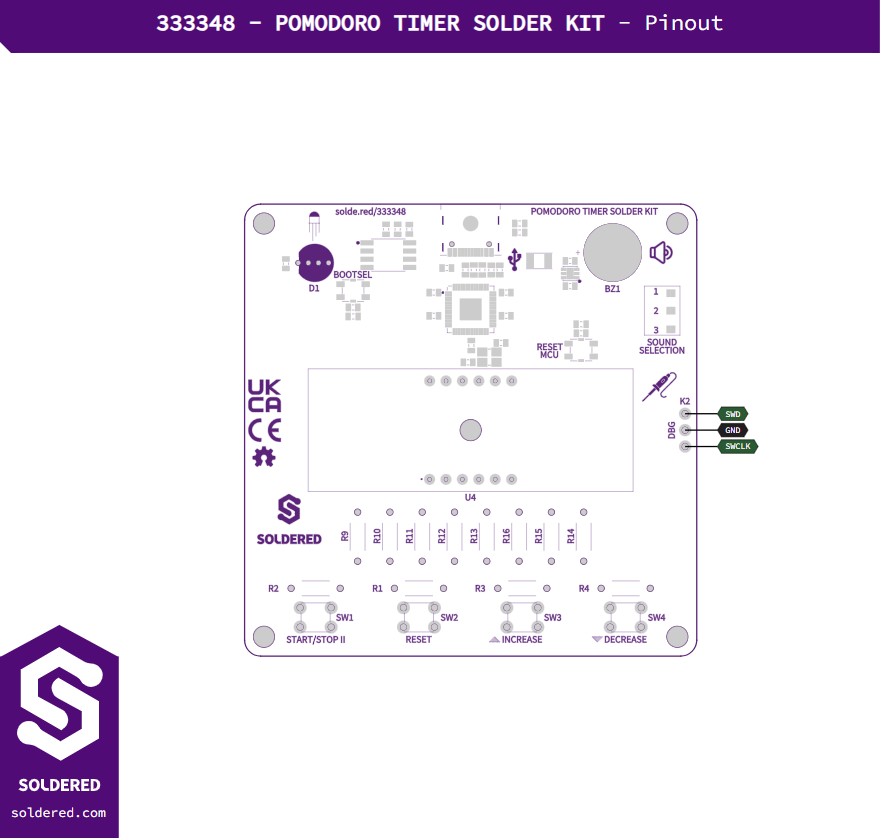

Soldered Pomodoro Timer Solder Kit - component layout and pinout

The timer is powered and programmed through USB-C. The firmware is based on MicroPython and can be modified by the user, including session duration, indication behavior and melodies. The board measures 70 × 70mm, and the manufacturer rates the assembly difficulty as Level 2. An assembly guide, project documentation and files for a 3D-printable enclosure are also available.

Features

  • Type: DIY soldering kit
  • Function: programmable Pomodoro timer
  • Microcontroller: RP2040
  • Processor: 2 × Arm Cortex-M0+
  • Clock frequency: up to 133MHz
  • SRAM: 264KB
  • Pre-programmed microcontroller
  • Programming environment: MicroPython
  • Display: 4-digit 7-segment LED
  • Default work time: 25 minutes
  • Default break time: 5 minutes
  • Time adjustment: 5-minute increments
  • Number of buttons: 4
  • Button functions: Start / Pause, Reset, increase and decrease time
  • RGB LED: WS2812B
  • Status indication: work, break and stage change
  • Audio indication: piezo buzzer
  • Selectable melodies: 4
  • Melody selection: via jumpers
  • Power and programming connector: USB-C
  • Board dimensions: 70 × 70mm
  • Difficulty level: Level 2
  • Open-source design
  • Assembly guide available
  • 3D-printable enclosure files available
  • Manufacturer: Soldered Electronics
  • Product code: 333348

Kit includes

  • Pomodoro Timer PCB
  • Pre-programmed RP2040 microcontroller
  • 4-digit 7-segment display
  • WS2812B RGB LED
  • Piezo buzzer
  • 4 × pushbutton
  • 4 × 10kΩ resistor
  • 8 × 220Ω resistor
  • Resistors and capacitors required for assembly
  • Pin headers and jumpers
  • Other components required to assemble the circuit
