AddOn Display Out - HDMI Output Module for PoE-P4
ID: 1210001
zł56.47
Tax included
zł45.91 tax excl.
Expansion module for the M5Stack Unit PoE-P4, converting MIPI DSI signals to HDMI using the LT8912B chip; HDMI Type-A output supporting 1280 x 720 px at 60 Hz and 1920 x 1080 px at 30 Hz; TP touch panel connector; USB Type-A port; microSD card slot; connection via a 24-pin FPC cable with 0.5 mm pitch; 5 V DC power supply; dimensions of 20.3 x 62.9 x 15.5 mm. M5Stack U221
Description

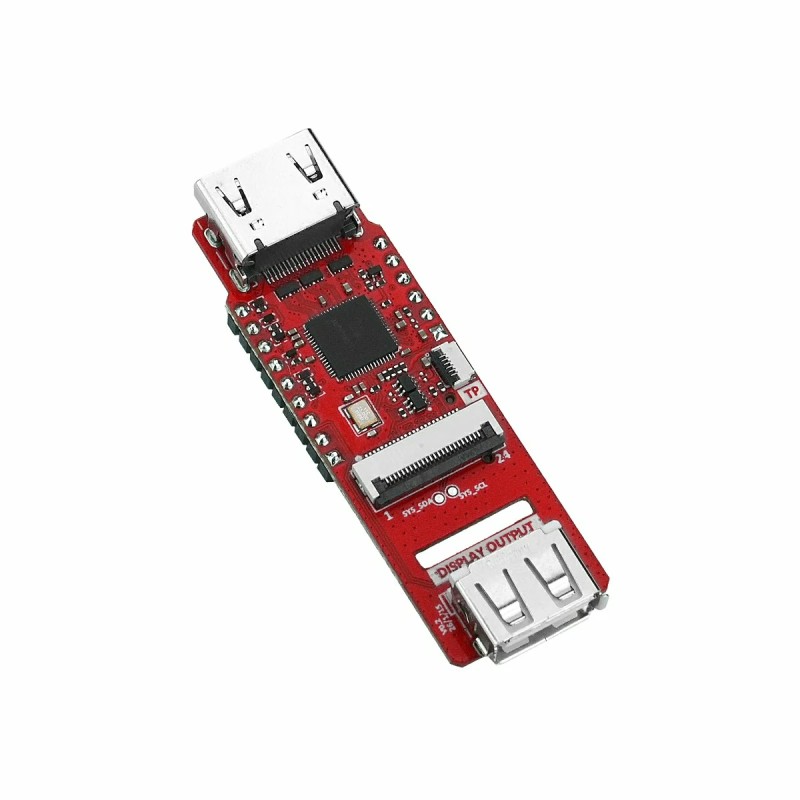

HDMI display output expansion module designed for use with the M5Stack Unit PoE-P4 controller. The M5Stack AddOn Display Out For PoE-P4 (U221) uses the LT8912B chip to convert MIPI DSI signals to HDMI, allowing an external monitor to be connected through a standard HDMI Type-A connector. Supported resolutions include 1280 x 720 px at 60 Hz and 1920 x 1080 px at 30 Hz. The module connects to the main unit through a 24-pin FPC cable with 0.5 mm pitch.
Building information display terminals - enables data and messages to be presented on an external monitor connected to the Unit PoE-P4.
Developing industrial HMI panels - allows local interfaces to be created for visualizing operating parameters of equipment and installations.
Supporting touch interfaces - enables a touch panel controller to be connected and control signals to be transmitted to the main unit.
Expanding local user interfaces - enables the use of USB peripherals, such as a keyboard and mouse, and the storage of graphical resources and configuration files on a microSD card.
The module features a TP connector for connecting a touch controller, providing I2C communication, reset and interrupt signals.
The built-in microSD card slot communicates with the main unit via the SDIO bus, allowing images, graphical interface resources and configuration files to be stored.
The USB Type-A port is used to connect peripheral devices.
A 5 V DC power supply is provided through the Unit PoE-P4 expansion connector. Current consumption for the entire assembly is 74.55 mA in standby mode and 186.83 mA during operation, according to the manufacturer's measurement conditions. The module measures 20.3 x 62.9 x 15.5 mm and weighs 7.9 g.

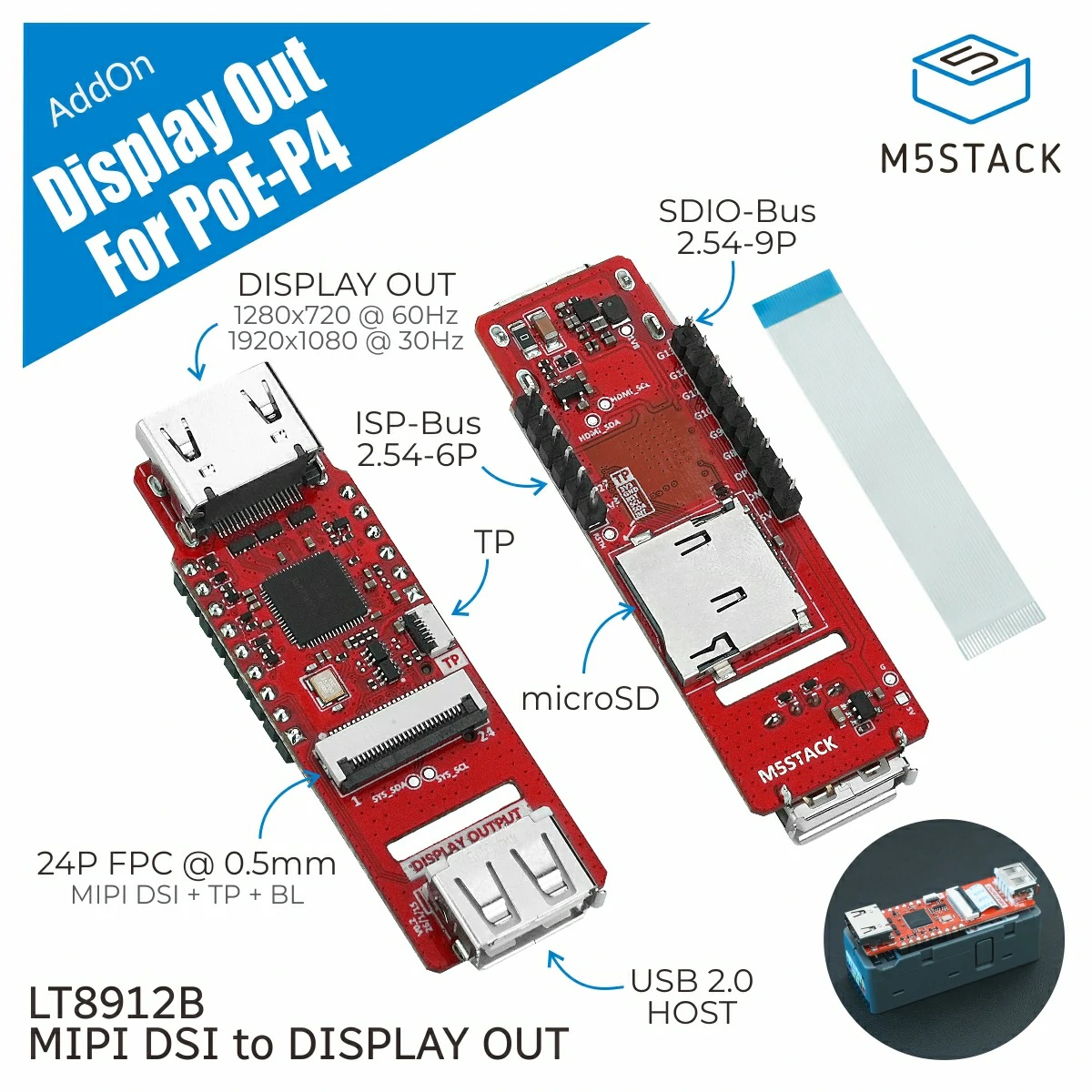

Features
- Video conversion and HDMI output
- Signal conversion chip: LT8912B
- Video input signal: MIPI DSI, 2 data lanes
- Video output: 1 x HDMI Type-A
- Supported resolution: 1280 x 720 px at 60 Hz
- Supported resolution: 1920 x 1080 px at 30 Hz
- Compatibility: M5Stack Unit PoE-P4
- Interfaces and connectors
- Main input connector: 24-pin FPC, 0.5 mm pitch
- Main connector signals: MIPI DSI 2-Lane, SYS SDA, SYS SCL, TP_INT, TP_RST, USB1_DP, USB1_DN, SDIO, RESET_N
- Touch panel connector: 1 x 0.55-6P
- Touch controller communication: I2C
- Touch control signals: reset and interrupt
- USB port: 1 x USB Type-A
- Memory card slot: 1 x microSD
- microSD card interface: SDIO
- Power supply and current consumption
- Supply voltage: 5 V DC
- Power source: Unit PoE-P4 expansion connector
- Standby current consumption: 74.55 mA for the entire assembly
- Operating current consumption: 186.83 mA for the entire assembly
- Mechanical specifications
- Dimensions: 20.3 x 62.9 x 15.5 mm
- Weight: 7.9 g
- Package dimensions: 138 x 93 x 14 mm
- Gross weight: 11.2 g
Kit includes
- M5Stack AddOn Display Out For PoE-P4 (U221) module
- 24-pin FPC cable, 0.5 mm pitch
