ID: 1208976
4779051840960
zł43.27
Tax included

zł35.18 tax excl.

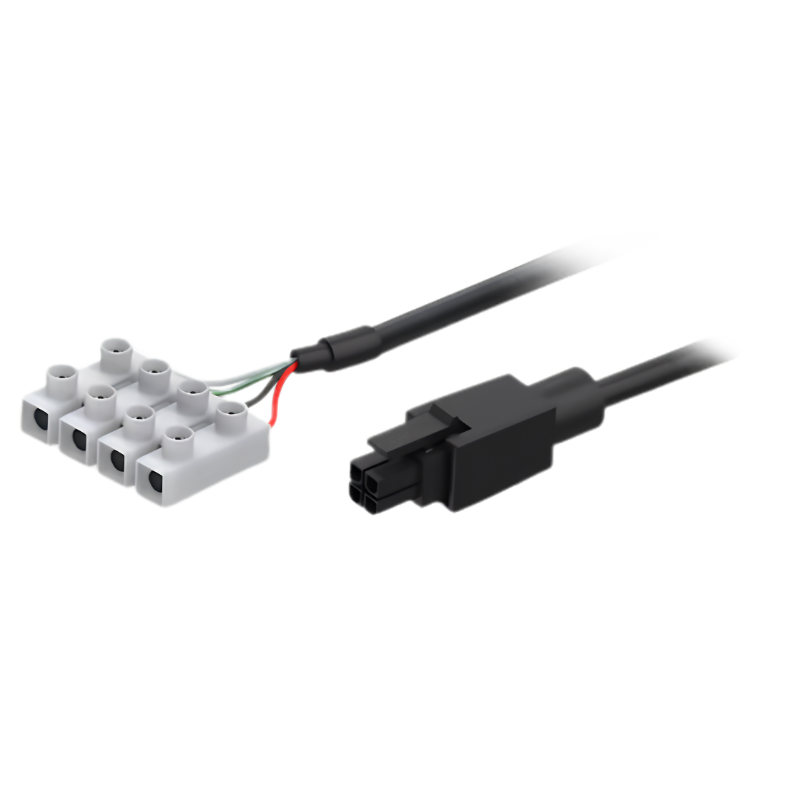

Cable designed for powering and using input/output lines in compatible Teltonika Networks devices. One end features a 4-pin connector with 3 mm pitch, while the other is equipped with a 4-way screw terminal for solderless connections. The cable length is 2 m. Teltonika PR2FK20M

24h
Available
Available quantity: 10

Description

The cable allows compatible Teltonika Networks devices to be connected to a power source using a 4-way screw terminal, while two additional wires can handle input/output lines depending on the functions available on the connected device. The device side features a 4-pin connector with 3 mm pitch. The cable consists of four 0.129 mm² (26 AWG) wires and has a total length of 2000 mm. The color coding includes red for Power +, black for Ground -, green for Input / Output / NC and white for Input / Output / NC. The manufacturer's documentation also confirms RoHS compliance.

PR2FK20M is compatible with a wide range of Teltonika Networks routers, gateways, modems and switches from the RUT, RUTM, TRB, TRM, TSW and RUTC families, as well as the Oxa device. The cable allows power to be supplied from installations using screw terminal connections, making it suitable for automation cabinets, telemetry systems and industrial installations.

Features

  • Input connector: 4-way screw terminal
  • Output connector: 4-pin
  • Connector pitch: 3 mm
  • Cable: 4 x 0.129 mm²
  • Wire size: 26 AWG
  • Total length: 2000 mm
  • Red wire: Power +
  • Black wire: Ground -
  • Green wire: Input / Output / NC
  • White wire: Input / Output / NC
  • RoHS compliant

Compatibility

  • Compatible Teltonika Networks devices: Oxa, RUT200, RUT202, RUT241, RUT260, RUT261, RUT271, RUT301, RUT361, RUT901, RUT906, RUT951, RUT951 PoE+, RUT956, RUT976, RUT981, RUTC40, RUTC41, RUTC42, RUTC50, RUTC54, RUTM08, RUTM09, RUTM10, RUTM11, RUTM16, RUTM20, RUTM30, RUTM50, RUTM50 Japan, RUTM51, RUTM52, RUTM54, RUTM56, RUTM59, TRB140, TRB141, TRB142, TRB143, TRB145, TRB160, TRB501, TRM142, TRM282, TRM500, TSW100, TSW110
1208976

Data sheet

Plug
4-pin plug with 3 mm pitch
Cable length (m)
2 m
