- New

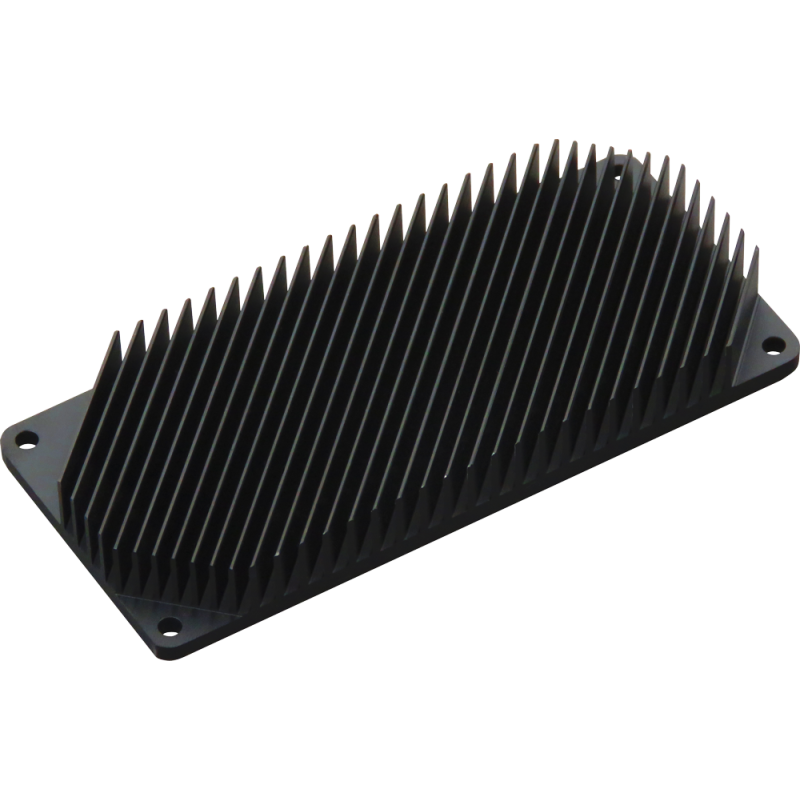

SL-HEATSINK-85x40x10-AB – Aluminum heatsink 85×40×10mm black anodized
ID: 1201018
zł29.90
Tax included
zł24.31 tax excl.
SL-HEATSINK-85x40x10-AR is a black anodized aluminum heatsink designed for cooling SoMLabs SoM modules in embedded systems. Thanks to its low thermal resistance and simple installation, it provides efficient passive cooling in compact systems.
Description
Heatsink made of extruded aluminum, black anodized, designed for passive cooling of SoM modules manufactured by SoMLabs. The compact design with dimensions of 85 × 40 × 10 mm provides a large heat dissipation surface while maintaining low weight. The heatsink features low thermal resistance, enabling efficient heat transfer both from the processor and to the surroundings. Mounting is done using four screws, with the recommended use of 1 mm thick spacers. A 3D model in STEP format is available for download, allowing easy integration with CAD projects.
Features
- Dimensions: 85 × 40 × 10 mm
- Material: extruded aluminum
- Surface: black anodized
- Thermal resistance MPU-heatsink: 1.4 °C/W
- Thermal resistance heatsink-ambient: 8.7 °C/W
- Mounting: 4 screws
- Recommended spacer thickness: 1 mm
- 3D model available in STEP format
1201018
Manufacturer SOMLABS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Lwowska 5 05-120 Legionowo Poland somlabs@somlabs.com
Responsible person SOMLABS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Lwowska 5 05-120 Legionowo Poland somlabs@somlabs.com
