Kitronik Line Following add-on - module with line sensors for :MOVE mini V2
ID: 1198632
zł75.58
Tax included
zł61.45 tax excl.
The :MOVE mini MK2 robot kit allows for automatic line tracking, enhancing the interactivity of educational projects. The kit is easy to assemble, requires no soldering, and adjustable sensors allow for precise sensitivity adjustments for the left and right sides of the robot. The module can track both a dark line on a light background and a light line on a dark background, and backward compatibility with the original :MOVE mini makes it easy to use in older projects. Kitronik 5659
Description
Kitronik Line Following add-on is a kit that allows you to add line-following functionality to :MOVE mini MK2 robots controlled by BBC micro:bit. With this add-on, your robot can autonomously follow a line, greatly enhancing the possibilities for educational and recreational projects. The kit is easy to assemble and requires no soldering, making it ideal for beginners and those who want to experiment quickly with robotics. Once assembled, you can adjust the sensitivity of the left and right sensors for smooth and precise line tracking.
By default, the robot follows a dark line on a light background, but the code can be easily modified for the opposite configuration. The kit is backward compatible with the first version of :MOVE mini. It includes all components needed to implement line-following functionality, including the sensor interface and line-following board. The mechanical assembly ensures the kit is sturdy and durable. It is an excellent tool for learning programming, robotics, and interactive electronics in STEM education. The kit allows experimentation with different settings and line-following scenarios, fostering creativity and technical skills.
Features
- Two line sensors
- Adds line-following functionality to :MOVE mini MK2
- Can follow a dark line on a light background or a light line on a dark background
- Sensor sensitivity adjustable with a screwdriver
- No soldering required
- Backward compatible with the first version of :MOVE mini
- Detection distance: max. 5 mm
- Operating voltage: 3 V
- Current consumption: 38 mA
- Dimensions: 30.7 x 43.7 mm

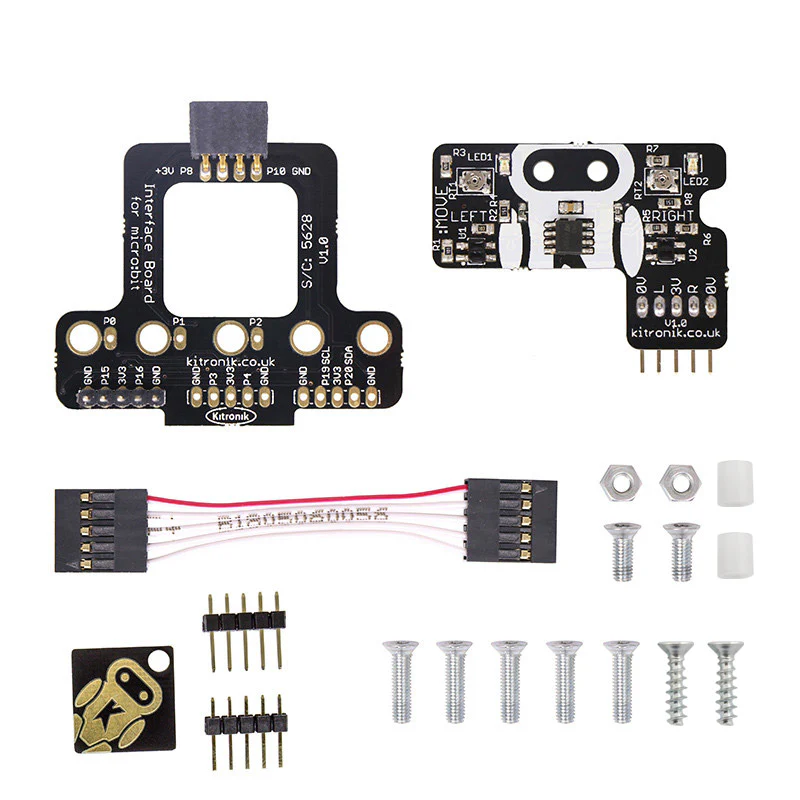

Kit contains
- MOVE Sensor Interface for BBC micro:bit
- MOVE Line Following board for BBC micro:bit
- Connection cable
- 2 × CS M3 8mm screws
- 2 × M3 nuts
- 5 × CS M3 12mm screws
- 2 × 6mm washers
- 2 × CS 12mm screws
1198632
Data sheet
- Type of sensor
- inny
- Output type
- digital
- Number of sensors
- 2
- Power supply voltage
- 3 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Educational micro:bit module with 32-bit ARM Cortex-M4 microcontroller. Manufactured to interest the youngest in computer engineering. SparkFun DEV-17287
zł72.90
24h
Available quantity: 77
Available
Starter kit with micro:bit v2. In addition to the micro:bit v2 board, the set includes a microUSB-USB cable, a battery basket and two AAA batteries. SparkFun DEV-17288
zł94.89
24h
Available quantity: 19
Available
Starter kit with micro:bit v2. The set includes the most necessary elements needed to implement micro:bit projects: LEDs, buttons, potentiometer, servo, prototype board and a set of cables. SparkFun KIT-17362
zł321.01
Delivery date unknown
No product available!

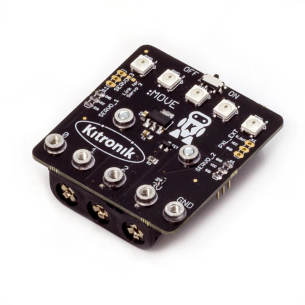

An expansion board for the BBC micro:bit, allowing easy connection and control of low-power servos. It supports two servos by default, and up to three by disabling the built-in ZIP LEDs. Powered by three AAA batteries, it simultaneously supplies power to the micro:bit, while a power switch protects against unnecessary discharge. With five RGB ZIP LEDs and the ability to connect additional ones, the board allows for attractive lighting effects and is ideal for robotic projects like the :MOVE mini. Kitronik 5623
