Line Following board - module with line sensors for MOVE motor
ID: 1193889
5906623488704
zł19.45
Tax included
zł15.81 tax excl.
A module with line sensors designed to work with the Kitronik kit. It has two sensors in the form of phototransistors that generate an analog voltage that can be read by the microcontroller. The module is equipped with a 4-pin connector (3V, 0V, L, R), which allows for power supply and reception of signals from the sensors, and the output voltage changes depending on the detected surface, which allows it to be used not only with the Kitronik kit, but also with platforms such as Arduino or Raspberry Pi Pico. Kitronik 56111
Description
The module with line sensors is designed to work with the Kitronik :MOVE Motor set. It is equipped with two LED/phototransistor sensors that generate an analog voltage, readable by the microcontroller's ADC channel. The module features a 4-pin connector with a standard 2.54mm pitch. The pins provide connections for power (3V and 0V) and two sensor outputs, labeled L (left sensor) and R (right sensor). It requires a power supply ranging from 3V to 5V and ground connection to the pin header, which are marked on the board as 3V and 0V.
The sensor's output voltage varies from the supply voltage to 0V, depending on whether the sensors detect a light or dark surface. Different surfaces reflect varying amounts of light. A typical light surface may generate a voltage around 0.5V, while a dark surface may generate approximately 2.5V (assuming a 3V power supply). Although the module is designed to work with the Kitronik set, it can also be used with other platforms such as Arduino, Raspberry Pi Pico, and in other robotics and autonomous vehicle projects based on the micro:bit.
Features
- 2 reflective sensors (phototransistor)
- ADC output 0-3V
- Allows adding line-following functionality to a robot/buggy
- Can be directly mounted on the underside of the :MOVE motor chassis
- No soldering required
- Can also be used with other boards such as Arduino and Raspberry Pi Pico
- Pin pitch: 2.54mm
- Power supply: 3 to 5 V
- Dimensions: 23.75 x 10.3 mm
1193889
Data sheet
- Type of sensor
- Fototranzystor
- Output type
- analog
- Number of sensors
- 2
- Power supply voltage
- 3 - 5 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Educational micro:bit module with 32-bit ARM Cortex-M4 microcontroller. Manufactured to interest the youngest in computer engineering. SparkFun DEV-17287
zł72.90
24h
Available quantity: 78
Available
Module with the RP2040 microcontroller with two ARM Cortex-M0 + cores operating at 133 MHz, 256 kB RAM and 30 GPIO. The board also has 2 MB of external QSPI flash memory. Module can be programmed in C/C++ or microPython. Raspberry Pi Pico
zł19.31
24h
Available quantity: 697
Available
Discover the latest revision of Arduino Uno - the most popular development kit in the world. The Arduino Uno in its newest iteration impresses with a three-fold increase in clock speed, eight-fold larger flash capacity, and a sixteen-fold increase in SRAM capacity. But that\'s just the beginning, as Arduino Uno also offers a wide range of additional peripherals, powered by a 32-bit Renessas RA4M1 microcontroller with an ARM M4 core. With the new Arduino Uno, you don\'t have to worry about compatibility, as the board is compatible with all shields from previous revisions. Thanks to the elaborate security systems and compatibility with existing guides and projects, Arduino Uno becomes the ideal solution for both beginners and advanced electronics enthusiasts. Arduino ABX00080
Regular pricezł94.89zł75.92
24h
Available quantity: 75
Available
A programming and robotics learning kit that lets you build a micro:bit-controlled robotic buggy. It is equipped with two DC motors, ultrasonic sensors to detect obstacles, and programmable LEDs. Powered by four AA batteries, the kit can be programmed in the Microsoft MakeCode or MicroPython environment, making it a great solution for beginners and more advanced users. Kitronik 5683
zł185.63
24h
Available quantity: 1
Available
Other products in the same category (16)
Module with 16 QTR type optocoupler with RC (digital) output. The module operates from 2.9 V to 5.5 V, detects objects at a distance of up to 50 mm. The sensor will be used in projects that require detection of changes in the ground, e.g. in linefollower robots. Pololu 4156
zł84.71
24h
Available quantity: 1
Available

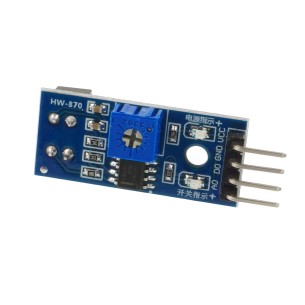

Diffuse sensor with digital output. The threshold can be adjusted with the built-in potentiometer
