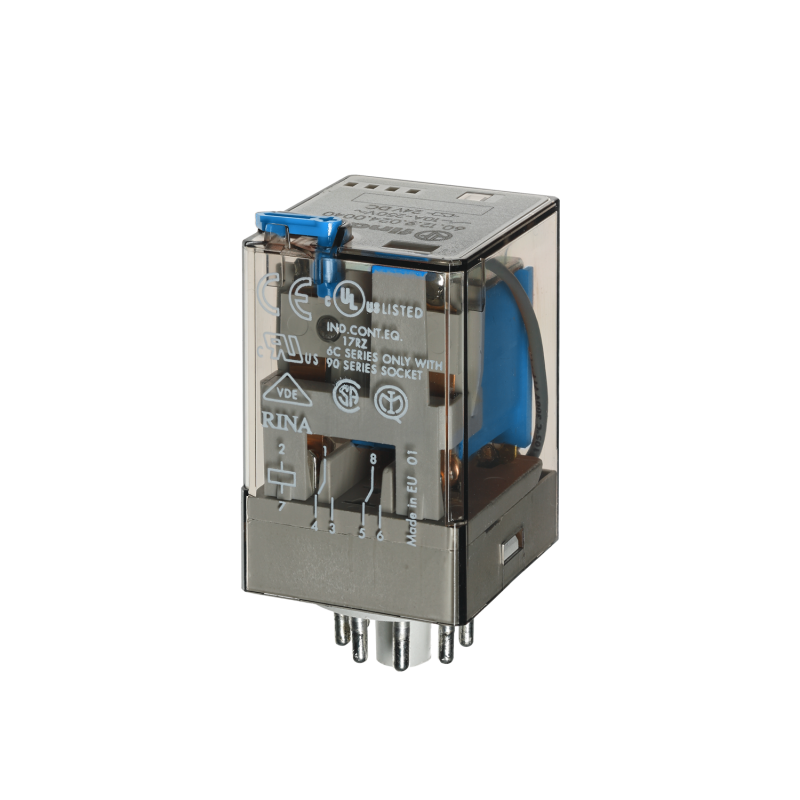

Finder 60.12.9.024.0040 - electromagnetic relay 24V 10A 2xCO plug-in
ID: 1203905
zł44.90
Tax included
zł36.50 tax excl.
Finder electromagnetic relay with 24 V DC coil, two changeover contacts rated 10 A for mounting in 8-pin socket. Finder 601290240040
Description
Industrial electromagnetic relay from Finder Series 60 designed for mounting in 8- or 11-pin sockets, equipped with two changeover contacts rated up to 10 A. The design allows use in automation systems, control circuits and industrial installations requiring reliable switching of signals and loads.
The 24 V DC coil operates within a range of 19.2 V to 26.4 V, ensuring stable performance in low-voltage systems. AgNi contact material and 4 kV insulation between coil and contacts enable safe operation in demanding environments. The relay includes a test button with locking function and a mechanical status indicator, simplifying diagnostics and maintenance.
Features
- Series: Finder 60
- Relay type: Electromagnetic
- Contact configuration: 2 changeover contacts
- Contact material: AgNi
- Rated contact current: 10 A
- Rated contact voltage: 250 V AC
- Coil voltage: 24 V DC
- Coil voltage range: 19.2 - 26.4 V
- Coil power: 1.3 W
- Coil resistance: 445 Ω
- Current consumption: 53.9 mA
- Holding voltage: 12 V
- Drop-out voltage: 2.4 V
- Coil-contact insulation: 4 kV
- Mounting: 8/11-pin socket
- Options: Test button with lock, mechanical indicator
- Electrical life: 200000 cycles
- Operating temperature: -40°C ~ 70°C
- Dimensions: 32.5 x 54.2 x 36.4 mm
1203905
Data sheet
- Output current
- 10A
- Number of channels
- 2
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 24 VDC
