KINETIS FREEboard
ID: 234139
Development board with microcontroller from the Freescale KINETIS L family (Cortex-M0+) and MEMS 7DoF sensors.
Description
FREEboard is a richly equipped development board with microcontroller from family Freescale KINETIS L (core ARM Cortex-M0+ @48 MHz), compatible with Arduino R3 and evaluation boards Freescale FREEDOM (FRDM).
Features
- Two boards: base with microcontroller and expander 7DoF
- Microcontroller MKL25Z128VLK
- Core Cortex-M0+, clocked up to 48 MHz
- Memory Flash/SRAM: 128 kB/16 kB
- Sensors MEMS 7DoF: MAG3110, MPL3115, MMA8451
- MicroSD slot card
- LED RGB + 2 x LED
- USB2.0
- 54 lines GPIO (LV-TTL – 3,3 V)
- Microswitch
- I2C and SPI connectors in Kamod system
- JTAG/SWD connector (standard J-Link, uLink itp.)
- Power supply from USB or external power supply 3,5...6 VDC
- Jumper for current consumption measurement
Kit content
- Assembled module board
234139
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Andrzej Gromczyński
zł78.90
24h
Available quantity: 36
Available

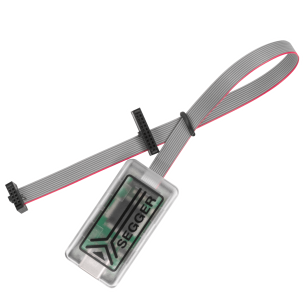

J-LINK EDU Mini is a version of the J-Link EDU (8.08.90) in a reduced form factor with identical functionality for Cortex-M based targets. It has been designed to allow students and educational facilities as well as hobbyists access to top of the line debug probe technology. Version for non-commercial use only. J-Link EDU mini
