RPLiDAR S1 - ToF laser scanner with a range of 40m
ID: 575141
5906623477227
Portable set of ToF laser scanner with a range of 40m, characterized by high resolution (9,200 samples per second) and high stability and accuracy of measurements. Seeed Studio 114090021
Description
RPLiDAR S1 is the next generation of the SLAMTEC RPLIDAR laser scanner. The scanner performs measurements in one plane (2D). By default, the sensor performs measurements at a frequency of 10 Hz and a resolution of 0.391 degrees. The rangefinder has a range of up to 40 m and is ideally suited for use in SLAM algorithms to determine the orientation of the robot in space, to create maps of the terrain in which it is located, to detect objects before the robot and to plan the route of the robot. The user can define the frequency of measurements in the range of 5-15 Hz. The module is characterized by a thin structure, it is compact and portable.
properties
- Rangefinder range: up to 40 m (white objects) and up to 10 m (black objects)
- Visibility of the measurement field: 360 degrees
- Measuring resolution: 0.391 degrees and 1 cm
- Sampling frequency: 9200 samples / second
- Scan frequency: 5-15 Hz
- Interface: UART TTL (3.3 V) 256000 bps
- Dimensions: 55.5 x 55.5 x 51 mm
- Weight: 105 g
575141
Data sheet
- Interface
- UART
- Type of sensor
- ToF
- Minimum distance
- 0 cm
- Maximum distance
- 40 m
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like

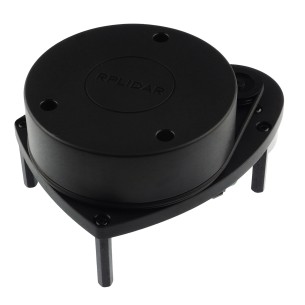

360-degree laser scanner (LIDAR), with a range of up to 12 meters and measurement frequency up to 10 Hz (optimal value 5.5 Hz). DFRobot DFR0315
