ArduCAM 5MP Wide Angle USB Camera - 5MP USB camera with OV5648 sensor
ID: 586951
5902186324442
Camera with a resolution of 5 MPx with a USB interface. Equipped with an OV5648 CMOS sensor with a wide angle lens with a 90° angle of view. ArduCAM UB0233
Description
Camera with USB interface equipped with a CMOS sensor OV5648 1/4” with a resolution of 5 MPx. It has an integrated IR filter and a lens with a 90° field of view. The camera can take photos with a resolution of 2592x1944 and record videos at 15fps@2592x1944. It is powered from the USB port. The module works with native drivers (compatible with UVC) built into Windows, Linux, Mac and Android, making the installation of the camera easy and intuitive. It will be used for monitoring 3D printing, videoconferences or in projects of mobile robots.
Features
- Sensor: 1/4” CMOS OV5648
- Resolution: 5MP 2592x1944
- Data format: MJPG / YUY2
- Frame rate: MJPG 15fps @ 2592 x 1944/2048 x 1536; 30fps @ 1080P / 720P / 1024 x 768/800 x 600; YUY2 5fps @ 720P / 1080P; 10fps @ 1024 x 768; 15fps @ 800 x 600
- Field of View (FOV): 90° (H)
- Lens mount: M12
- Integrated IR filter, only visible light
- Automatic calibration of saturation, contrast, sharpness, white balance, exposure
- System Compatibility: Windows, Linux, Mac and Android with UVC
- USB 5V power supply
- Working current: 250 mA
- Working temperature: -20 to 70°C
- Dimensions: 32 x 32 mm
- USB cable length: 1 m
Kit contains
- ArduCAM 5MP Wide Angle USB Camera module
- USB 2.0 cable 1 m
586951
Data sheet
- Resolution
- 5MPx
- Interface
- USB 2.0
- Sensor
- OV5648
- IR filter
- Yes
- Lens assembly
- M12
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like

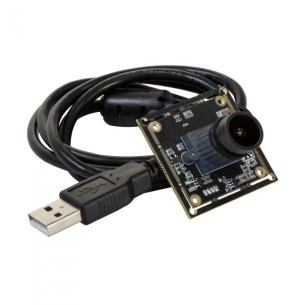

Camera module with USB interface with a resolution of 2MP. Camera with Sony CMOS IMX291 sensor, the module is equipped with two microphones. ArduCAM B0201
