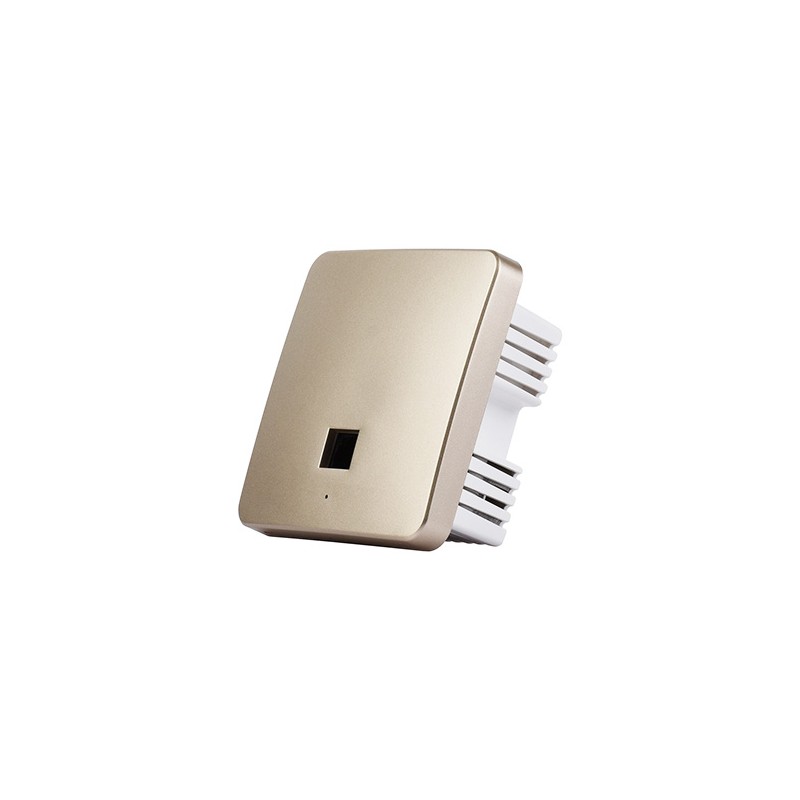

Wall-mounted 86-type WiFi access point with a total wireless throughput of 1500 Mbps, powered via PoE, intended for home and commercial applications. Waveshare AP-AX1500G-POE

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare AP-AX1500G-POE is designed for building wireless networks in home, office, and commercial environments. The 86-type mounting standard allows installation directly into a wall back box, enabling a clean appearance and saving space. Power over Ethernet (PoE) simplifies installation and eliminates the need for additional power cabling.

The device supports a total wireless throughput of up to 1500 Mbps across the 2.4 GHz and 5 GHz bands, with a maximum channel width of up to 80 MHz. The integrated processor and optimized antenna and RF design provide stable connections and even signal coverage. The access point supports Fit AP and Fat AP operating modes and can operate in centrally managed systems using a compatible PoE router.

The AP-AX1500G-POE is equipped with a Gigabit Ethernet WAN port with PoE support, status indicator LEDs, and a hidden reset button. The device is designed to operate over a wide range of environmental conditions, making it suitable for various installation scenarios.


Features

  • Model: AP-AX1500G-POE
  • Manufacturer: Waveshare
  • Device type: wall-mounted WiFi access point
  • Mounting standard: 86 type
  • Total wireless throughput: 1500 Mbps
  • 2.4 GHz band: up to 300 Mbps
  • 5 GHz band: up to 1201 Mbps
  • Maximum channel width: 80 MHz
  • Operating modes: Fit AP, Fat AP
  • Network port: 1 x Ethernet 10/100/1000 Base-T (PoE)
  • Power supply: PoE
  • Antenna type: built-in, high-performance
  • Maximum transmit power 2.4 GHz: 21.5 ±1.5 dBm
  • Maximum transmit power 5 GHz: 23.5 ±1.5 dBm
  • Recommended number of connected devices: up to 40
  • Maximum number of connected devices: 128
  • Button: hidden reset
  • Indicators: status and activity LEDs
  • Color: light gold
  • Dimensions: 86 x 86 x 42 mm
  • Device weight: 155 g ±10%
  • Operating temperature: 0°C – 40°C
  • Storage temperature: -40°C – 70°C
  • Operating humidity: 10%–90% RH, non-condensing
