zł81.71 tax excl.
RS485-WiFi converter that provides easy communication between the RS485 interface and the WiFi wireless network. The set includes elements for mounting on an industrial DIN rail
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

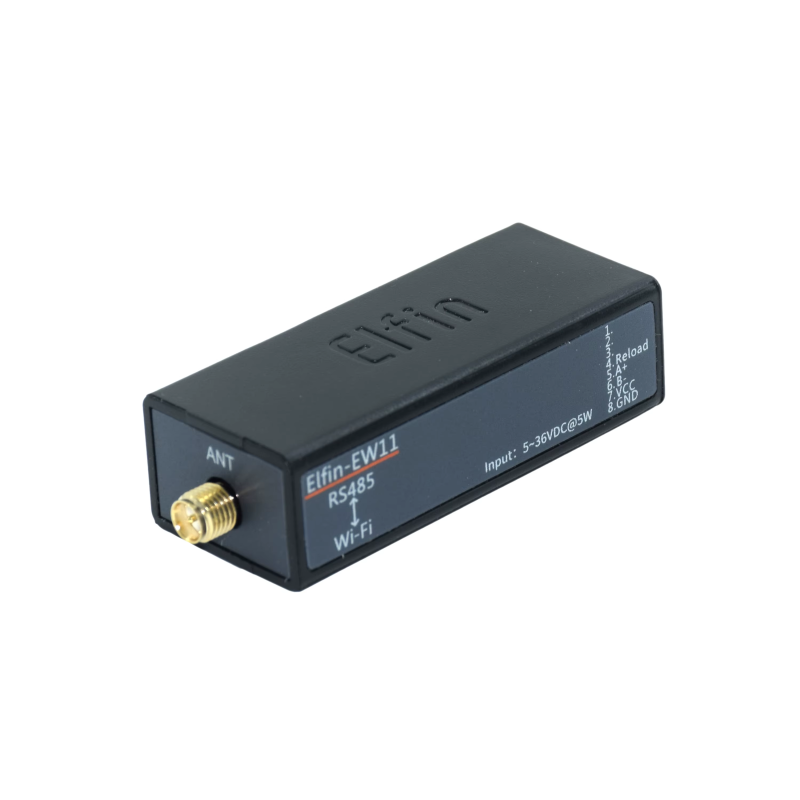

Industrial RS485-WiFi converter that provides easy communication between the RS485 interface and a wireless WiFi network. The module is based on a 32-bit microcontroller with the ARM-Cortex M3 core. The device supports TCP, UDP, Telnet and Modbus TCP protocols and supports encryption based on the AES standard. The converter has a built-in PCB antenna and an RJ45 connector with RS485 interface pins. It ensures efficient wireless communication with industrial devices.
Features
- Microcontroller with ARM Cortex-M3 core, 160 MHz
- Connector: RJ45 (RS485 interface)
- Transmission speed: 600 bps to 460.8 kbps
- Interface protection: overvoltage protection, overload protection
- WiFi wireless communication: 802.11b/g/n
- Frequency band 2.412 to 2.484 GHz
- STA/AP/AP+STA network mode
- WPA-PSK/WPA2-PSK security mechanism
- AES type encryption
- Protocol: IP, TCP, UDP, DHCP, DNS, HTTP server/client, ARP, BOOTP, AutoIP, ICMP, Telnet, uPNP, NTP, Modbus TCP
- Configuration: host, browser, CLI
- XML import, Telnet, IOTService
- Transmission power:
- 802.11b: +18dBm
- 802.11g: +16dBm
- 802.11n: +15dBm
- Receiving Sensitivity:
- 802.11b: -89dBm
- 802.11g: -81dBm
- 802.11n: -73dBm
- Internal PCB antenna
- Support OTA web update
- Voltage: 5 to 18V
- Current consumption: 200 mA
- Operating temperature: -40 to 85°C
- Storage temperature: -40 to 105°C
- DIN rail mounting
- Dimensions: 61 x 26 x 17.8mm
Kit contains
- RS485-WiFi converter
- Wire
- Elements for DIN mounting
