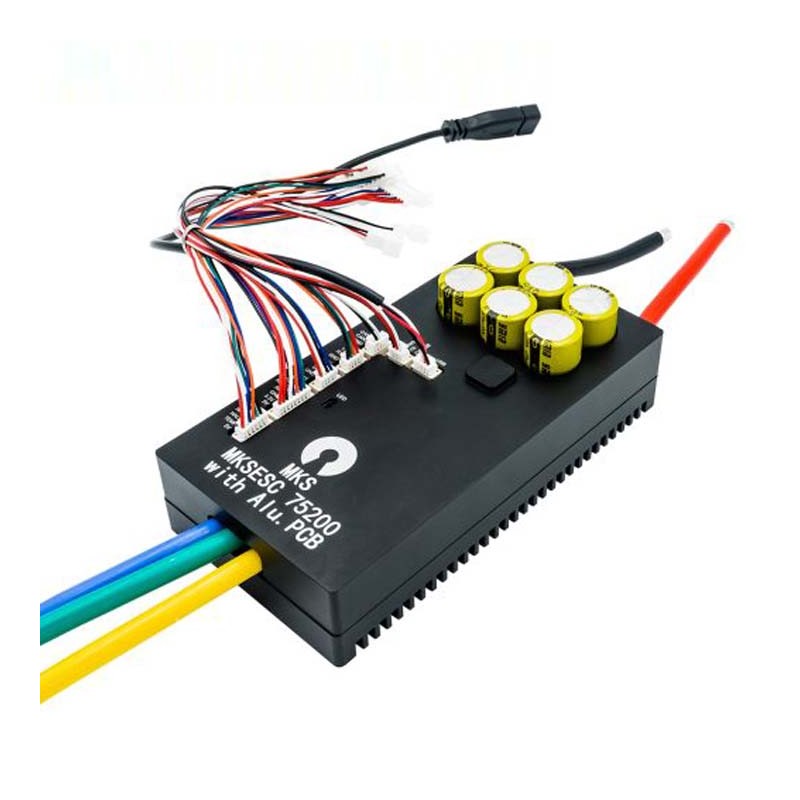

Makerbase VESC 75200 V2 - BLDC Brushless Motor ESC Controller 4-20S, 200A
ID: 1187447
zł764.78
Tax included
zł621.77 tax excl.
This speed controller is designed for high voltage and high current applications, ideal for electric vehicles, e-foils, and robotics. It supports voltages up to 84 V and continuous currents up to 200 A. Its ARM Cortex-M4 STM32F405RG processor ensures precise control and fast signal processing. It supports various control modes, works with BLDC and DC motors in both sensored and sensorless versions, and is configured via USB or Bluetooth using the VESC Tool. Makerbase VESC 75200 V2
Description
The Makerbase VESC 75200 V2 is a modern speed controller designed for applications requiring high voltage and large currents, such as e-foils, mobile robots, or electric vehicles. Compared to the VESC6 and VESC4 series, it offers significantly higher load-handling capabilities, supporting voltages up to 84 V and continuous current up to 200 A. The integrated ARM Cortex-M4 STM32F405RG processor with an FPU unit ensures fast and precise signal processing. The controller supports multiple operation modes, including duty cycle, speed, and current control, making it a versatile solution for different motor types.
With support for PPM, UART, USB, CAN, I²C protocols and analog inputs, it provides wide integration possibilities with various control systems. The device works with both sensor-equipped motors (ABI, HALL, AS5047, AS5048A) and sensorless mode. The speed limit reaches 150,000 ERPM, allowing stable operation at high RPM. The controller features a built-in USB port for easy configuration via VESC Tool software and real-time monitoring through a Bluetooth module. Thanks to its aluminum PCB and 8AWG wiring, the unit is designed for heavy-duty use and ensures durability. It also includes advanced current compensation algorithms and RPM limiting, enhancing safety and protecting components from overload. Its compact dimensions and robust housing make installation easy in both industrial and hobbyist applications.
Features
- Processor: ARM Cortex-M4 STM32F405RG with FPU
- Supply voltage: DC 14 to 84 V (4S–20S)
- Continuous current: up to 200 A at 50 V / 150 A at 75 V (depending on cooling)
- Maximum peak current: 300 A
- Maximum speed: 150,000 ERPM
- Supported control modes: duty cycle, speed, current
- Supported motors: FOC, BLDC, DC, GPD
- Communication interfaces: PPM, Analog (ADC), UART, I²C, USB, CAN
- Sensors: ABI, HALL, AS5047, AS5048A, sensorless mode
- USB port for configuration (compatible with VESC Tool)
- Real-time monitoring and configuration via Bluetooth
- PCB: aluminum, 3 oz
- Firmware: V6.02 (VESC Tool V6.02)
- 8 AWG wires
- Dimensions: 130 × 67.7 × 28.1 mm
Kit contains
- MKSESC 75200 V2 module
- USB Type-C cable
1187447
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
