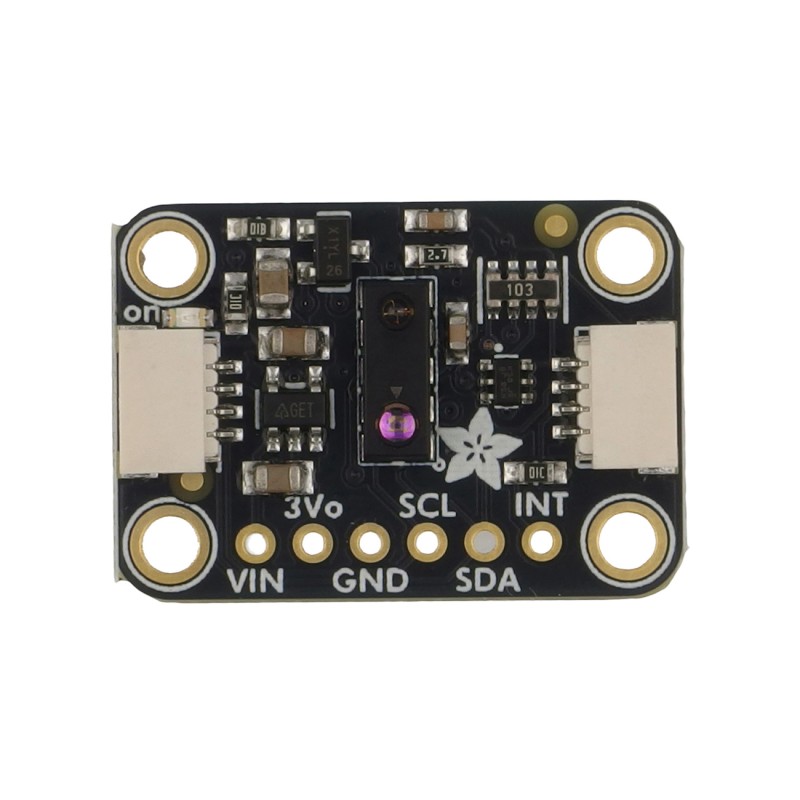

STEMMA QT VCNL4200 Sensor - module with proximity and light sensor VCNL4200
ID: 1195185
5906623498819
zł34.99
Tax included
zł28.45 tax excl.
The VCNL4200 sensor module combines distance detection and ambient light measurement, ideal for applications such as robotics and home automation. Thanks to infrared technology, the detection range is up to 1.5 meters, and the built-in ALS sensor allows you to measure light intensity in the range of 0.003 to 1570 lux, making it a versatile solution for monitoring lighting conditions. Adafruit 6064
Description
The VCNL4200 sensor module combines the functions of distance detection and ambient light measurement. This makes it an ideal solution for many applications such as robotics, motion detection, and home automation. The sensor operates using infrared (IR) technology, enabling accurate distance measurement up to 1.5 meters, one of the longest ranges available for IR sensors, while maintaining ease of integration with popular platforms like Raspberry Pi, Arduino, or Feather via the I2C interface.
The VCNL4200 features a built-in ambient light sensor (ALS) that allows light intensity measurement in the range from 0.003 to 1570 lux. This makes the sensor suitable for monitoring lighting conditions in the surrounding environment, making it an excellent choice for applications related to smart lighting, automatic brightness adjustment, or monitoring device operating conditions.
One of the advantages of this sensor is its ease of integration into projects. It has connectors compatible with the STEMMA QT system, allowing for quick connection without soldering. With simple wires and available libraries in CircuitPython, Python, and Arduino, configuring the sensor is fast and hassle-free. This is an ideal solution if you are looking for a low-cost, easy-to-setup, and functional device in one package.
Features
- Range: up to 1.5 meters depending on lighting conditions
- Light measurement range: 0.003 to 1570 lux, with selectable ranges (197, 393, 786, 1573 lux)
- Light wavelength (940 nm IRED)
- High resistance to fluorescent light flicker
- Excellent measurement stability under various lighting conditions
- Programmable interrupt feature
- Ability to set upper and lower thresholds
- Ability to set light detection range
- Easy integration with I2C interface:
- STEMMA QT connector compatible with Qwiic system
- Operating temperature range: –40°C to +125°C
- Simple setup process: available libraries for CircuitPython, Python, and Arduino
- Low power consumption
- Dimensions: 25.6 x 17.7 x 4.8mm
- Weight: 1.9g
Kit contains
- STEMMA QT VCNL4200 Sensor Module
- Goldpin connector
1195185
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
