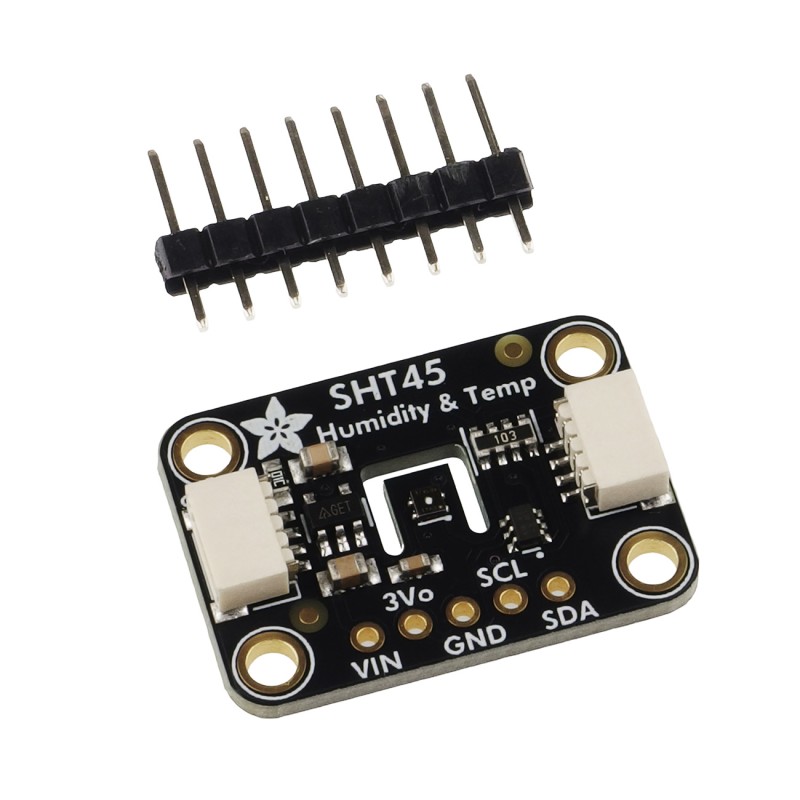

STEMMA QT Sensirion SHT45 - module with temperature and humidity sensor SHT45
ID: 1196819
5902186300842
zł67.79
Tax included
zł55.11 tax excl.
High-end temperature and humidity sensor module, offering ±1.0% RH and ±0.1°C precision and full I2C communication. With 3.3 to 5V voltage compatibility, STEMMA QT connectors and IP67 protection, it is easy to integrate and resistant to harsh environmental conditions. Ideal for IoT projects, weather stations and automation systems requiring accurate measurements. Adafruit 6174
Description
The Sensirion SHT45 temperature and humidity sensor is one of the most accurate and advanced measurement solutions available on the market. Based on the fourth-generation SHT sensor, it delivers exceptional precision: ±1.0% RH in the 25% to 75% humidity range and ±0.1°C in the 0 to 75°C temperature range. Unlike older models, the SHT45 communicates via a full I2C interface, simplifying integration with most microcontrollers and single-board computers. The breakout board includes a built-in voltage regulator and logic level shifter, allowing it to operate with 3.3V to 5V systems. Thanks to the STEMMA QT connectors (Qwiic compatible), the sensor can be quickly connected without soldering – just use a QT cable (sold separately). Additionally, each kit includes a fully assembled PCB and a header strip for optional soldering – perfect for breadboard use. An integrated PTFE membrane offers extra protection against dust, liquids, and particles, achieving IP67-rated sealing, making it suitable even for harsh environments. The sensor is tested according to JEDEC JESD47, comes with a calibration certificate compliant with ISO 17025:2017, and supports heater power and full NIST traceability. It’s an excellent choice for precision measurement applications, IoT projects, weather stations, or home automation systems.
Features
- Accuracy: ±1.0 %RH, ±0.1 °C
- Operating range: 0–100 %RH, −40 to 125 °C
- Communication: I2C FM+ interface, default address 0x44, CRC
- Integrated PTFE membrane, IP67 protection
- Supports heater power, full NIST traceability
- ISO 17025:2017 calibration certificate (3-point temperature calibration)
- STEMMA QT / Qwiic connectors for quick I2C connection
- Power/logic voltage: 3.3V to 5V
- Average current consumption: 0.4 µA, standby: 80 nA
- Dimensions: 25.5 mm x 17.7 mm x 4.8 mm
Kit contains
- Sensirion SHT45 STEMMA QT module
- Pin header
1196819
Data sheet
- Interface
- I2C
- Type of sensor
- SHT45
- Power supply voltage
- 3,3 - 5 V
- Sensor type
- Temperature and humidity
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
