X-NUCLEO-NFC10A1 – NFC/RFID Expansion Board with ST25R200 for STM32 Nucleo
ID: 1195738
5902186308718
zł214.16
Tax included
zł174.11 tax excl.
X-NUCLEO-NFC10A1 is an NFC/RFID expansion board for STM32 Nucleo systems, based on the ST25R200 chip. With support for multiple communication standards, an integrated 13.56 MHz antenna, and power-saving features, it is ideal for IoT applications, access control systems, contactless payments, and wireless identification.
Description
The X-NUCLEO-NFC10A1 expansion board is based on the ST25R200 chip and designed for handling NFC card readers and HF RFID standards. It supports communication protocols ISO/IEC 14443A/B and ISO/IEC 15693, enabling detection, reading, and writing of NFC Forum tags type 1, 2, 4, and 5.

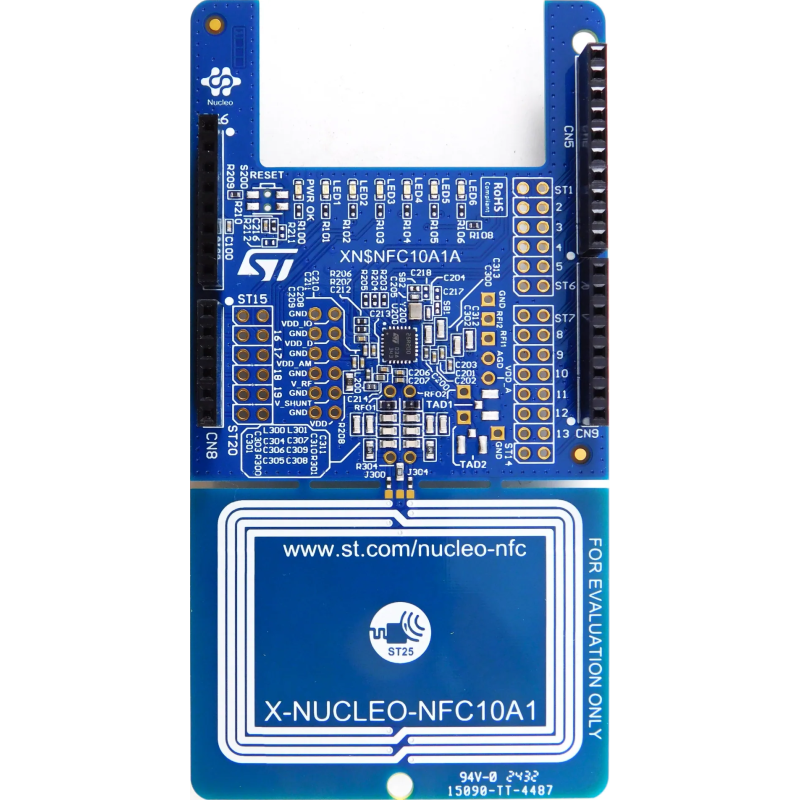

The module features a 13.56 MHz PCB antenna, six general-purpose LEDs, and an Arduino UNO R3 connector for easy integration with STM32 Nucleo boards. The built-in low-power wake-up mechanism allows detection of approaching tags with minimal energy consumption.
Properties
- NFC IC: ST25R200
- Supported standards:
- ISO/IEC 14443A/B (NFC, proximity RFID)
- ISO/IEC 15693 (long-range RFID)
- Supported tag types: NFC Forum type 1, 2, 4, 5
- PCB antenna: 13.56 MHz, four turns, dimensions 47 × 34 mm
- Support for two antennas in single-ended configuration
- Low power wake-up function – tag detection with low energy consumption
- Low-power RC oscillator and auto wake-up timer
- Features: 6 × user LEDs
- Connector: Arduino UNO R3 compatible
- Software: STM32Cube firmware library for ST25R200 + usage examples
- Scalable solution – possibility of cascading multiple boards
- Certification: FCC, RoHS, and WEEE compliant
