STM32H745I-DISCO - development kit with STM32H745XIH6 microcontroller
ID: 575660
5906623436323
zł516.00
Tax included
zł419.51 tax excl.
A development kit that allows the development of applications using the STM32H7 microcontroller with ARM Cortex-M7 core and Cortex-M4 (dual core). The STMod + and Arduino Uno V3 connectors allow you to add external peripherals. STMicroelectronics STM32H745I-DISCO
Description
STM32H745I-DISCO is an evaluation set with a STM32H7 microcontroller in a TFBGA240 + 25 housing. A set of hardware functions available on the board helps users to develop applications through the availability of almost all peripherals (such as USB OTG_FS, Ethernet 10 / 100Mb, eMMC, USART, SAI Audio DAC stereo with audio input and output JACK, MEMS digital microphone, SDRAM, memory Flash Quad-SPI and RGB LCD interface with capacitive multi-touch panel). Arduino Uno V3 connectors provide easy connection to expansion boards. STLINK-V3E is integrated into the board as a built-in debugger and programmer for MCU STM32 and USB Virtual COM. The STM32H745I-DISCO kit is available with the STM32CubeH7 package, which provides a complete HAL STM32 software library, as well as various application examples.
Specification
- STM32H745XIH6 microcontroller in the TFBGA240 + 25 housing
- Flash memory: 2 MB
- RAM memory: 1 MB
- Built-in ST-LINK / V3 programmer and debugger
- Programmer mode as a virtual COM port, mass storage, program debugging port
- 4.3 inch RGB LCD interface with touch panel connector
- Ethernet compatible with IEEE-802.3-2002 and POE
- USB OTG FS with Micro-AB connector
- Audio SAI codec
- ST-MEMS digital microphone
- 2 x 512-Mbit Quad-SPI NOR Flash memory
- 128-bit SDRAM memory
- 4GB eMMC memory
- User and reset button
- Fanout motherboard
- 2 x FDCAN
- Connectors:
- FS Micro-AB USB connectors
- ST-LINK Micro-B USB connector
- USB Micro-B power connector
- RJ45 Ethernet
- Stereo headphone jack with analog microphone input
- Audio connector for external speakers
- TAG-Connect 10-pin
- Arm-Cortex® 10-pin debug connector with a spacing of 1.27 mm STDC14
- Arduino ™ Uno V3 expansion connectors
- STMod +
- Flexible power options:
- USB STLINK-V3 connector, USB FS connector
- 5 V supplied by RJ45 (Power Over Ethernet)
- 5 V supplied by Arduino ™ or an external connector
- USB charger
- USB power supply
- Full compatibility with versatile HAL libraries containing many examples of the use of microcontroller peripherals and STMicroelectronics
- Supported a wide range of development software such as: IAR, Keil, GCC-based IDEa, ARM mbed
575660
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7 core.
zł301.42
24h
Available quantity: 7
Available
The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontrollers based on the ARM®Cortex®-M7 core.
zł488.01
24h
Available quantity: 20
Available
STM32F723E-DISCO Discovery kit allows users to develop applications with the microcontrollers of the STM32F7 Series, based on ARM®Cortex®-M7 core. The PMOD, STMod+ and Arduino™Uno V3 connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.
zł202.02
Delivery date unknown
No product available!
Other products in the same category (16)
A development kit that allows the development of applications using the STM32H7 microcontroller with ARM Cortex-M7 core and Cortex-M4 (dual core). The STMod + and Arduino Uno V3 connectors allow you to add external peripherals. STMicroelectronics STM32H745I-DISCO
zł516.00
24h
Available quantity: 6
Available
Development kit allowing the development of applications using the STM32H7 microcontroller with ARM Cortex-M7 core and Cortex-M4 (dual core). The Pmod, STMod + and Arduino Uno V3 connectors allow you to add external peripherals. STMicroelectronics STM32H747I-DISCO
zł549.77
1 weeks
No product available!
zł58.51
24h
Available quantity: 1
Available
Evaluation kit with STM32H7B3LIH6QU microcontroller with 2MB Flash memory and 1.4MB RAM memory. Equipped with a TFT display with a touch screen, WiFi module and numerous peripherals and connectors. STMicroelectronics STM32H7B3I-DK
zł399.38
1 weeks
No product available!
Development platform for the STM32L4P5AGI6PU microcontroller based on Arm Cortex-M4 core with I2C, SPI and USART, CAN, SAI, 12-bit ADC and DAC, Octo-SPI, USB OTG, LCD TFT controller and FMC. It has a built-in STLINK-V3E programmer. STMicroelectronics STM32L4P5G-DK
zł190.34
24h
Available quantity: 1
Available
Demo kit for prototyping applications and devices based on NFC ST25DV64KC tags. STMicroelectronics ST25DV64KC-DISCO
zł377.81
24h
Available quantity: 2
Available
Discovery kit based on STM32G431CB microcontroller, L6387 controller and STL180N6F7 MOSFET power transistors. Designed to drive a 3-phase brushless motor (BLDC/PMSM) and implement both sensorless FOC or 6-step algorithm. STMicroelectronics B-G431B-ESC1
zł110.93
24h
Available quantity: 8
Available
The STM32C0116-DK Discovery Kit helps you discover the features of the STM32C0 series microcontroller in the UFQFPN20 package
zł54.29
24h
Available quantity: 3
Available
The STM32C0316-DK Discovery provides alternative features to the dedicated NUCLEO-C031C6 board. All 20 pins common to all STM32C0 series microcontrollers are available to the user
zł96.70
24h
Available quantity: 2
Available
Demonstration and development platform with the STM32H573IIK3Q microcontroller based on the ARM Cortex-M33 core. Equipped with numerous connectors and peripheral systems, including a touch LCD display, USB Type C, Ethernet, WiFi and a MicroSD card slot. It has a built-in STLINK-V3EC programmer and debugger. Perfect for device development and prototyping. STMicroelectronics STM32H573I-DK
zł511.67
24h
Available quantity: 3
Available
Development platform for cellular IoT devices. The kit includes a Discovery motherboard equipped with the LBAD0ZZ1SE module, which includes an STM32L462REY6TR microcontroller, an LTE Cat M/NB LBAD0XX1SC-DM modem and a built-in SIM card. STMicroelectronics B-L462E-CELL1
zł427.92
1 weeks
No product available!
STM32H7S78-DK is an advanced evaluation board featuring the STM32H7S7L8H6H microcontroller, offering a wide range of functions and interfaces. With high computational power, ample memory, and versatile expansion capabilities, this board is ideal for prototyping advanced IoT, multimedia, and industrial applications. STMicroelectronics STM32H7S78-DK
zł552.47
24h
Available quantity: 1
Available
STM32U5G9J-DK2 is an advanced evaluation board featuring the STM32U5G9ZJT6Q microcontroller, offering versatile wireless and graphical functions. With high computational power, ample memory, and a wide range of interfaces, this board is an excellent solution for IoT and graphical applications. STMicroelectronics STM32U5G9J-DK2
zł401.10
24h
Available quantity: 2
Available
An evaluation platform based on the STM32MP257FAK3 chip, featuring a dual-core Arm Cortex-A35 processor (1.5 GHz) and a Cortex-M33 real-time core (400 MHz), enabling the simultaneous execution of Linux and RT applications. The kit features 32 Gbit LPDDR4 and 64 Gbit eMMC memory, as well as numerous interfaces, including Ethernet, USB 2.0/3.0, HDMI, and MIPI CSI-2. Built-in Wi-Fi and Bluetooth Low Energy modules facilitate integration with IoT systems, and the STLINK-V3EC debugger ensures convenient programming and debugging. Extensive expansion capabilities, Raspberry Pi compatibility, and support for frameworks such as Yocto, Buildroot, and STM32CubeIDE make the kit ideal for advanced embedded projects.
zł471.02
1 weeks
No product available!

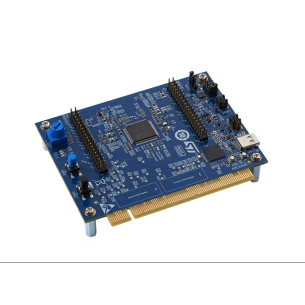

A development platform based on the STM32G473QET6 microcontroller with a Cortex-M4 core, designed for designing motor control systems. The kit enables the implementation of modern control algorithms and interoperability with STM32 power modules and extensions. The built-in STLINK-V3EC programmer allows for convenient programming and debugging without additional hardware. A rich set of interfaces, user components, and support for popular IDE environments facilitate rapid prototyping and application development. STMicroelectronics B-G473E-ZEST1S
