- New
USB-C Power Meter 0.96 - USB-C voltage and current meter - Waveshare 33266
ID: 1202972
zł43.06
Tax included
zł35.01 tax excl.

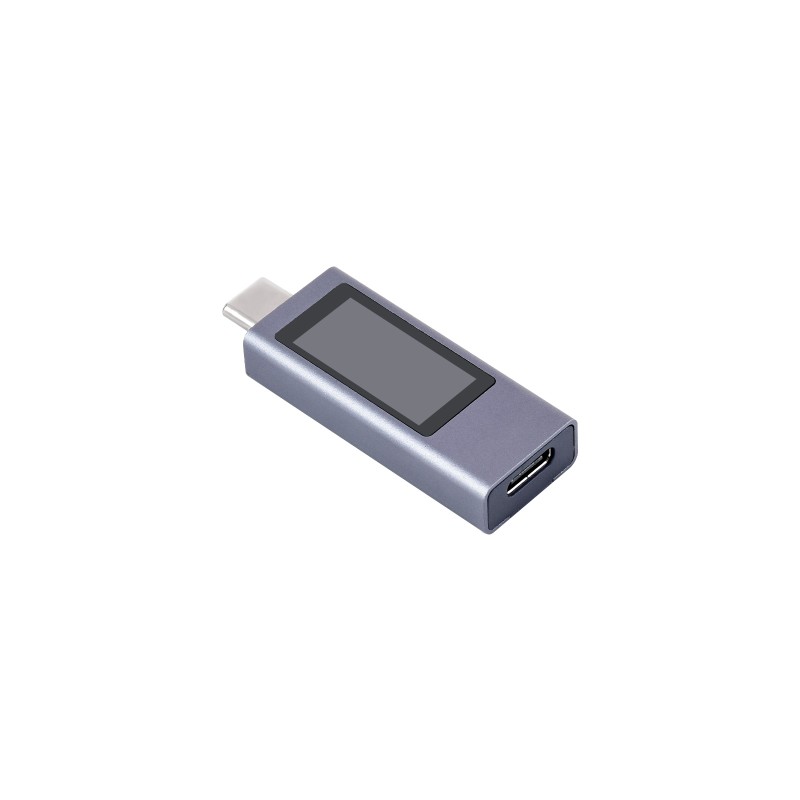

Compact USB-C power meter with a 0.96-inch display and onboard USB Type-C ports, enabling measurement of voltage, current, and power, with data storage after power-off. Waveshare USB-C Power Meter
Description
The USB-C Power Meter 0.96 by Waveshare is designed for monitoring power parameters of devices using the USB Type-C interface. The module enables real-time measurement of voltage, current, power, and energy, allowing analysis of power consumption for chargers, power banks, development boards, and other USB-C powered devices.
The 0.96-inch display provides a clear view of current operating parameters. The power-off data storage function allows measurement data to be retained after disconnecting the power, making it easier to test and compare different power sources. Built-in USB Type-C connectors allow easy inline installation without the need for additional cables or adapters.
The meter is suitable for service work, laboratory testing, educational projects, and diagnostics of electronic devices where fast and accurate measurement of USB-C power parameters is required.

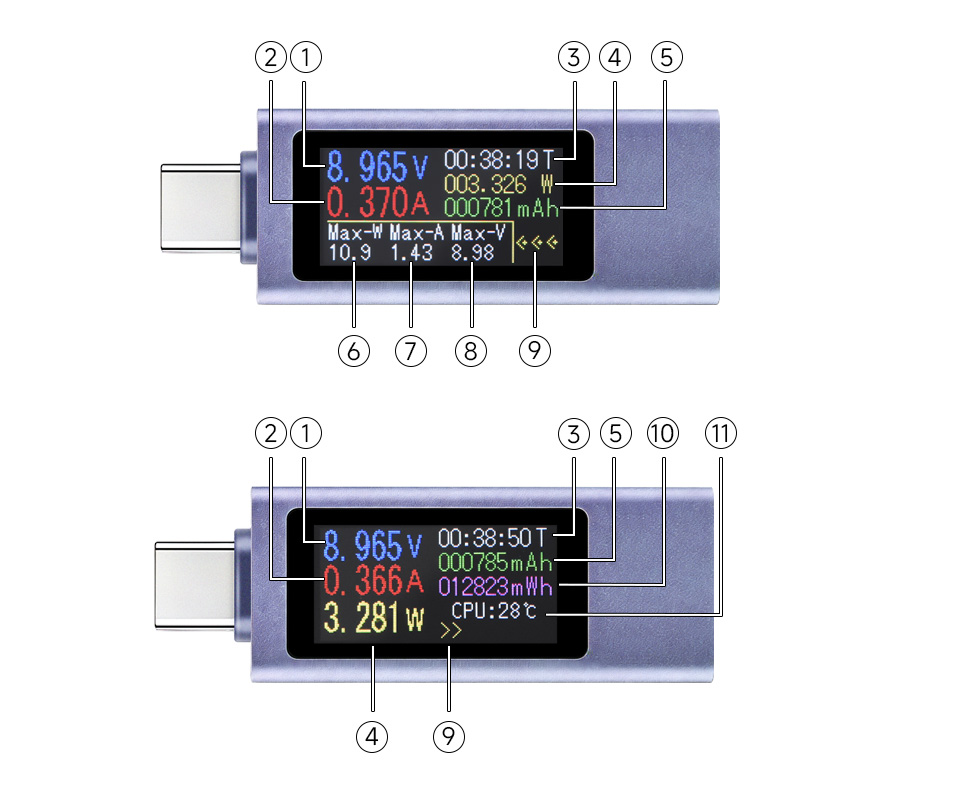

- Voltage: 4~30V
- Current: 0~12A
- Timing: 099 hours
- Power: 0 ~ 360W
- Capacity: 0~99999mAh
- Record single maximum power
- Record single maximum current
- Record single maximum voltage
- Current direction marker
- Energy: 0~99999Wh
- CPU temperature
Features
- Display: 0.96 inch
- Connectors: USB Type-C
- Voltage measurement: yes
- Current measurement: yes
- Power measurement: yes
- Energy measurement: yes
- Power-off data storage: yes
- Parameter monitoring: real time
- Application: USB-C power measurement
