zł46.26 tax excl.

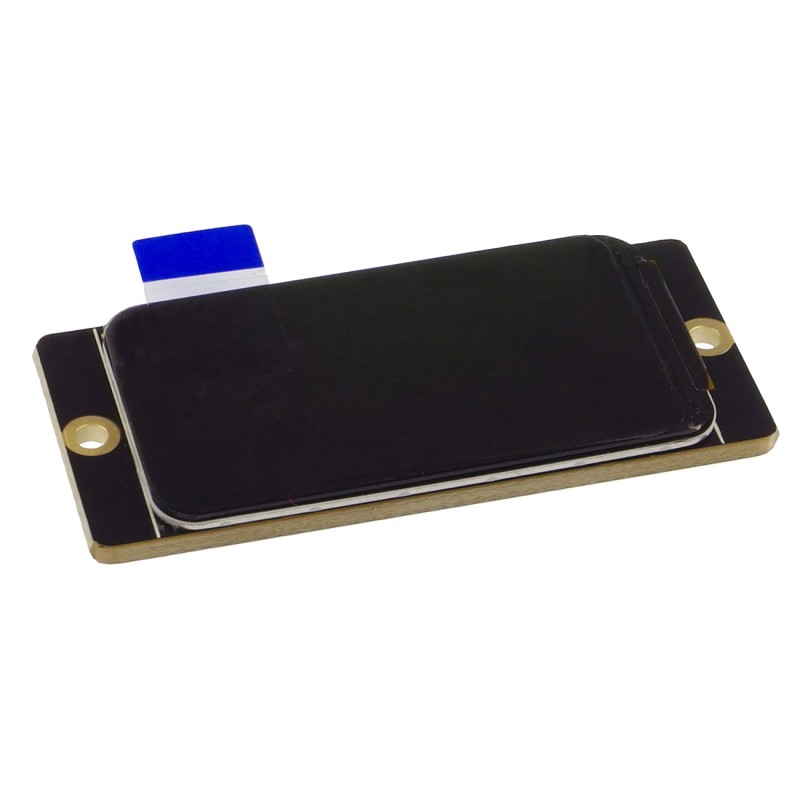

IPS color LCD display module with a diagonal of 1.47" and a resolution of 172x320 pixels. The display has a built-in ST7789V controller and communicates via SPI interface. DFRobot DFR0995
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
IPS color LCD display module with a screen diagonal of 1.47" and a resolution of 172x320 pixels. It has a narrow bezel of 1 mm and rounded corners. It can be used to display text messages, images or animations. In addition, with supported Arduino GLD and LVGL libraries, interesting graphic effects can be achieved. The display has a built-in ST7789V driver and communicates via an SPI interface. A GDI connector is also available on the board. It will find use as a display in small device projects, such as a weather station, watch or video player. Full documentation is available on the product page.
Features
- Diagonal: 1.47"
- Resolution: 172x320 pixels
- Display type: LCD IPS
- Wide viewing angle
- Display controller: ST7789V
- Communication: SPI
- GDI interface
- LED backlight, white
- Brightness: 600Cd/m2
- Supply voltage: 3,3 V
- Operating temperature: -20℃ to 70℃
- Display dimensions: 19.1 x 33.8 mm
- Module dimensions: 19.5 x 44.5 mm
Kit contains
- IPS 1.47" 172×320 LCD display
- 8-pin straight goldpin strip
- FPC cable
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 1,47
- Resolution
- 320 x 172 px
- Interface
- SPI
- Touch
- No
