SEQURE ELRS 868/915 MHz Dual RX - True Diversity Receiver with Two 120mm Antennas
ID: 1207252
5902186340565
zł112.18
Tax included
zł91.20 tax excl.
ExpressLRS receiver operating in the 868 MHz / 915 MHz bands, designed for FPV drones and RC models requiring stable communication over longer distances. It uses two SX1276 RF chips and two 120 mm antennas in a True Diversity configuration, while 50 mW (17 dBm) × 2 telemetry power and a TCXO support reliable data transmission. SEQURE ELRS 868/915 MHz Dual RX & 120mm*2
Description
The SEQURE ELRS 868/915 MHz Dual RX uses an ESP32-PICO-D4 microcontroller and two SX1276 RF chips. Two 120 mm antennas operate in a True Diversity configuration, providing two independent receiving paths and reducing the impact of antenna orientation and temporary interference on signal reception. The receiver supports the ExpressLRS system in the 868 MHz / 915 MHz bands and is suitable for FPV drones, fixed-wing models, and other RC systems requiring communication over longer distances.
The temperature-compensated TCXO stabilizes the operating frequency under changing temperature conditions. Two RF paths enable telemetry transmission with a power of 50 mW (17 dBm) × 2, allowing data to be transmitted from the model back to the transmitter.
Communication with the flight controller uses the CRSF protocol. An SH1.0-4P connector and 2.54-4P solder pads are provided for connection, while the antennas connect through IPEX1 connectors. An RGB LED indicates the receiver operating status, while the 5 V supply voltage allows integration with compatible RC electronics.
Features
- Manufacturer: SEQURE
- Model: ELRS 868/915 MHz Dual RX
- Radio system: ExpressLRS
- Frequency band: 868 MHz / 915 MHz
- RF mode: True Diversity
- Number of receiving paths: 2
- Microcontroller: ESP32-PICO-D4
- RF chips: 2 × SX1276
- Oscillator: temperature-compensated crystal oscillator (TCXO)
- Telemetry power: 50 mW (17 dBm) × 2
- Communication protocol: CRSF
- Antenna interface: IPEX1
- Number of antennas: 2
- Antenna length: 120 mm
- Receiver connector: SH1.0-4P
- Solder pads: 2.54-4P
- Status indicator: RGB LED
- Supply voltage: 5 V
- Dimensions: 24.8 × 13.8 × 5 mm
- Weight: 1.6 g

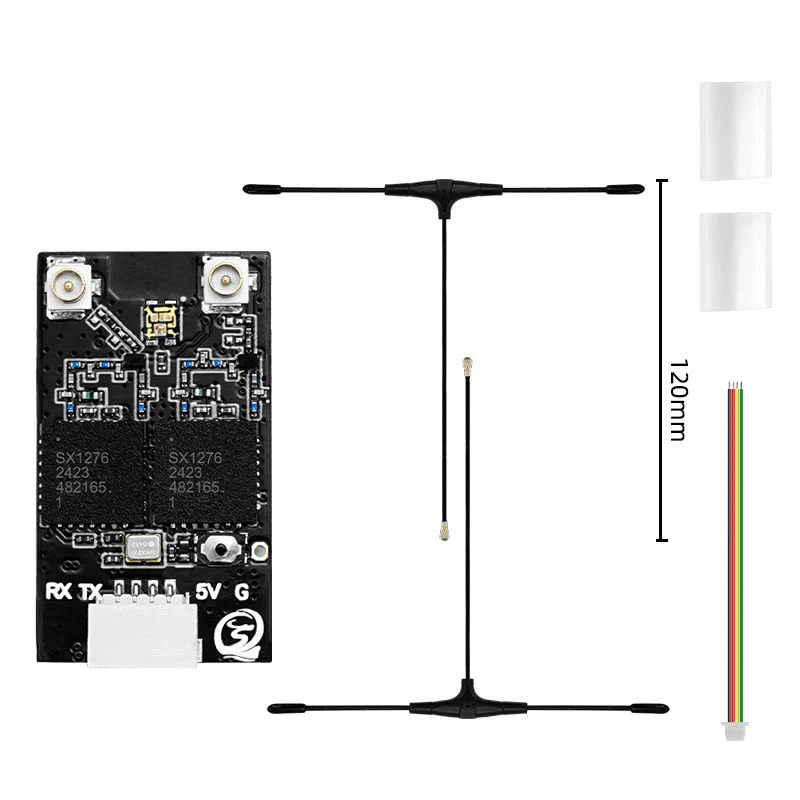

Kit includes
- SEQURE ELRS 868/915 MHz Dual RX receiver × 1
- 120 mm antenna × 2
- 30 AWG 100 mm cable with a single-ended SH1.0-4P connector × 1
- 12 × 30 mm heat-shrink tube × 2
