Advanced 4G LTE CAT4 modem with GNSS function, supporting GPS, Beidou and GLONASS, ideal for localization and communication applications. With support for multiple LTE, WCDMA and GSM bands and UART and USB interfaces, the module is compatible with platforms such as Raspberry Pi, Arduino or LattePanda. It enables data transmission, voice calls and SMS messages, and also supports TCP/IP, HTTPS and FTP network protocols, making it a versatile solution for IoT projects, vehicle tracking and security systems. DFRobot TEL0162

4 weeks
Awaiting delivery
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

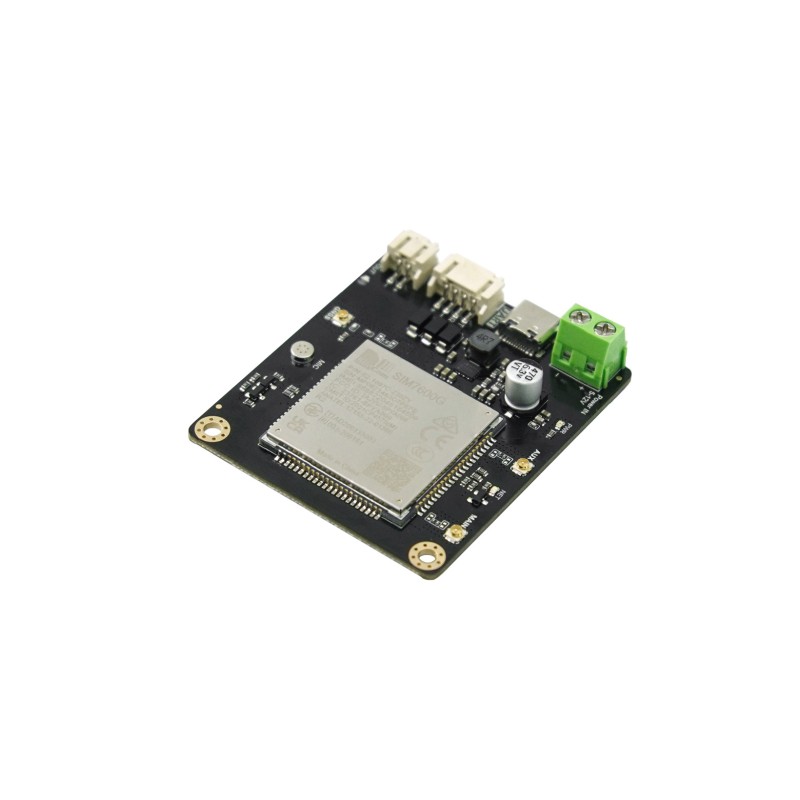

The SIM7600G-H module is an advanced communication device that offers 4G LTE CAT4 connectivity along with integrated GNSS positioning, supporting GPS, Beidou (BD), and GLONASS systems. With support for a wide range of bands including LTE-FDD, LTE-TDD, WCDMA, and GSM, the module ensures global compatibility with most network operators. It can be easily integrated with popular single-board computers such as Raspberry Pi, Arduino, and LattePanda, making it ideal for use as a 4G modem.

The SIM7600G-H communicates via UART and USB interfaces, allowing seamless connection with microcontrollers or PCs. It is compatible with Windows, Linux, and Android systems. The module supports data transmission, SMS messaging, and voice calls. Built-in audio amplifier and microphone capabilities enable full voice functionality.


Thanks to its support for a wide range of network protocols (including TCP/IP, FTP, HTTPS, DNS), the device can be fully controlled via AT commands without requiring knowledge of complex communication protocols. The module is ideal for logistics systems, anti-theft applications, vehicle tracking, and various IoT projects. Its compact size and high temperature tolerance make it suitable even for demanding environments.

Features

  • Communication standard: 4G LTE CAT4 (Uplink: 50 Mbps, Downlink: 150 Mbps)
  • GNSS support: GPS, Beidou (BD), GLONASS
  • Supported bands:
    • LTE-TDD: B34/B38/B39/B40/B41
    • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
    • UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
    • GSM/GPRS/EDGE: 850/900/1800/1900 MHz
  • Supported protocols: TCP/IP, FTP, FTPS, HTTP, HTTPS, DNS, Multi-PDP, IPV4
  • Command set: AT commands
  • SMS support: MT, MO, CB, Text and PDU modes

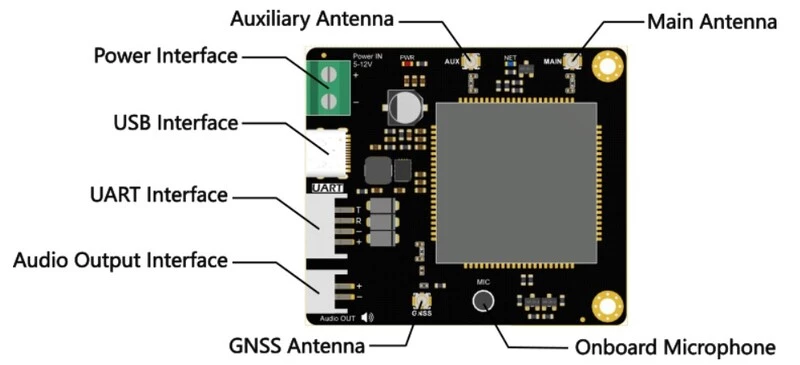

  • Interfaces: UART (3.3V–5V, PH2.0-4P), USB
  • Audio output: PJ2.0-2P
  • Antenna connectors:
    • 4G antenna (MAIN, AUX): 2 × male IPEX
    • GNSS antenna: 1 × male IPEX
  • SIM card slot: push-lock type
  • Status LEDs: red (power), blue (network status)
  • Power supply:
    • Terminal block: 5 to 12V
    • USB Type-C: 5V
  • Operating temperature: -40°C to +85°C
  • Dimensions: 60 × 52 mm

Kit contains

  • SIM7600G-H (CAT4) 4G communication module
  • 4G antenna + GPS antenna
  • 3-in-1 SIM card adapter
  • PH2.0-4P (Gravity) communication cable
