5G module SIM8262E-M2 with expansion board for Jetson Orin – Waveshare 32255
ID: 1201195
zł1,130.75
Tax included
zł919.31 tax excl.
SIM8262E-M2 5G for Jetson Orin is a ready-made solution for implementing 5G connectivity in embedded systems using Jetson Orin. The module supports GNSS positioning, dual SIM, data transmission and voice calls. The SIM8262E-M2 version is intended for use outside the Americas and provides flexibility and high performance in advanced communication applications.
Description
The SIM8262E-M2 5G for Jetson Orin set is a communication module intended for the Jetson Orin platform, enabling access to high-speed data transmission in 5G NSA/SA, 4G LTE and 3G networks. It uses the SIM8262E-M2 module based on the Qualcomm platform, designed to operate in Sub-6G bands in regions outside the Americas. The device supports multi-system GNSS positioning (GPS, GLONASS, Beidou, Galileo, QZSS) and a wide range of data transmission protocols.

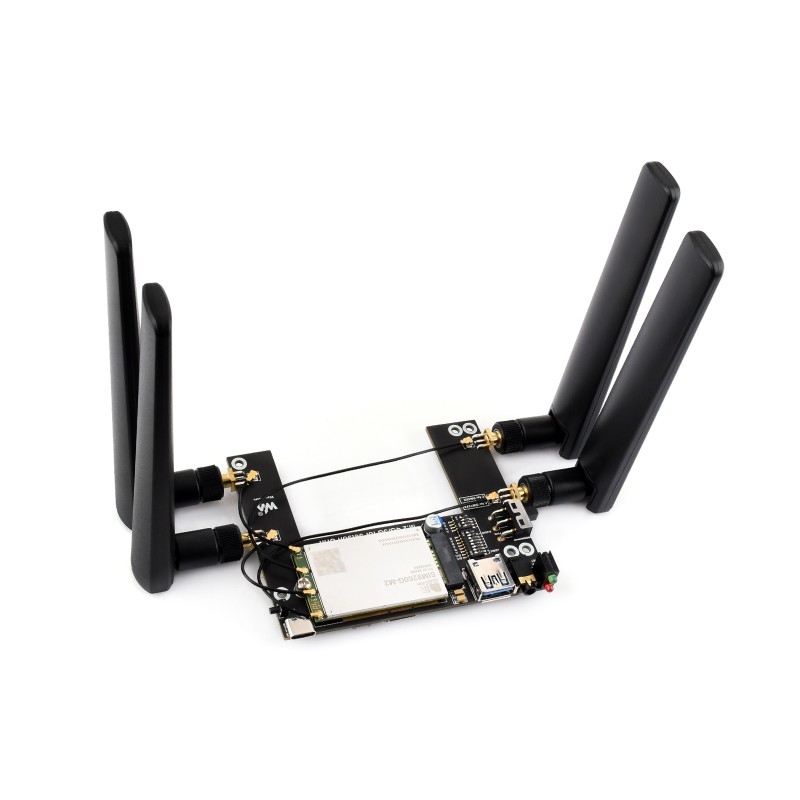

The expansion board includes an M.2 B-Key connector, USB 3.1 interface, USB-C power supply, antenna connectors, audio circuit with headphone output and nanoSIM and eSIM (QFN-8) card slots. The module works with Windows, Ubuntu, Raspberry Pi OS and OpenWRT systems, making it a flexible solution for edge computing, IoT and industrial communication projects.
Properties
- 5G SIM8262E-M2 module (Sub-6G, use outside the Americas)
- Network support: 5G NSA/SA, LTE, WCDMA
- GNSS positioning: GPS, GLONASS, BeiDou, Galileo, QZSS
- Host interface: USB 3.1 (compatible with USB 2.0)
- M.2 B-Key slot, compatibility with SIM8262X-M2 / SIM8260X-M2 / RM5XX / SIM7600
- Four SMA antenna connectors + IPEX1–IPEX4 adapters
- NanoSIM + eSIM slot (QFN-8, 5×6 mm), switched using AT commands
- Integrated audio codec (for SIM82XX / SIM7600X) – voice call support
- Power supply via USB-C (5 V / 3 A) or USB 3.1 port (power switch)
- Power button, reset button, status LED
- Supported systems: Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT
- Protocol support: TCP/IP, FTP(S), HTTP(S), MQTTS, DNS, IPv4/IPv6, SSL3.0
- Support for voice calls and SMS via AT commands
- 5 V fan connector for active cooling
Included
- SIM8262E-M2 module ×1
- M.2 4G/5G expansion board for Jetson Orin ×1
- 5G SMA antennas ×4
- External GPS antenna ×1
- IPEX1 to IPEX4 cables (~13 cm ×2, ~5 cm ×2)
- SMA covers (5 pcs)
- Heatsink ×1
- USB 3.0 (C) adapter ×1
- USB 3.0 type-A cable (with dual plug) ×1
- Screwdriver ×1
- Mounting screw set ×1
