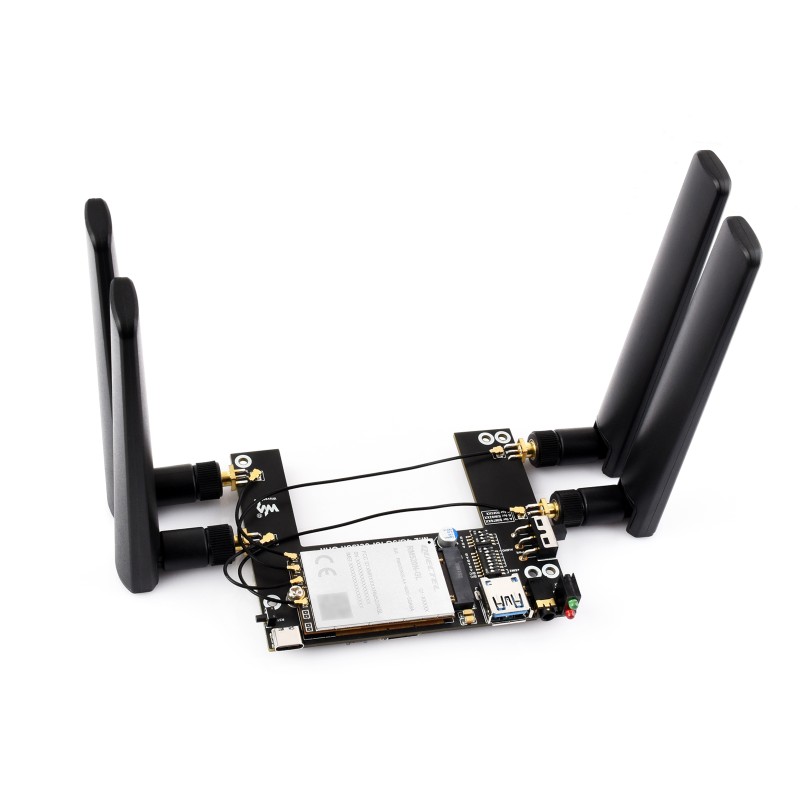

5G/4G/3G module for Jetson Orin with RM520N-GL – Waveshare 32256
ID: 1201194
zł1,201.19
Tax included
zł976.58 tax excl.
5G/4G/3G module with RM520N-GL modem designed for Jetson Orin enables high-speed network connectivity and precise GNSS positioning. Thanks to support for multiple operating systems and compatibility with various M.2 modems, it is suitable for advanced communication and IoT projects.
Description
Communication module 5G/4G/3G designed to work with the Jetson Orin platform. It uses the global Quectel RM520N-GL modem based on the Qualcomm X62 platform, compliant with 3GPP Release 16. It supports 5G NSA and SA network modes and GNSS positioning systems: GPS, GLONASS, BeiDou, Galileo and QZSS. Communication is provided through a USB 3.1 connector (compatible with USB 2.0), allowing connection to Jetson Orin, PCs and Raspberry Pi.
The integrated M.2 B-KEY socket allows the use of various Quectel and SIMCom modems, and configuration switches enable selection of the compatible model. The module is equipped with four SMA antenna connectors, two SIM slots (nano SIM and eSIM in QFN-8 package), power switch, reset button, LED indicator and an efficient 5 V / 3 A power system.
Compatibility with Windows (7/8/10/11), Ubuntu, Raspberry Pi OS and OpenWRT enables wide use in networking, communication and IoT projects. Supports cloud communication and data transmission via UART.
Properties
- Support for 5G NSA/SA, 4G, 3G networks
- RM520N-GL modem based on Qualcomm X62
- 3GPP Release 16 compliant
- GNSS support: GPS, GLONASS, BeiDou, Galileo, QZSS
- USB 3.1 port (compatible with USB 2.0)
- M.2 B-KEY connector compatible with many 4G/5G modems
- 4 SMA antenna connectors
- Nano SIM slot and eSIM slot (QFN-8)
- Configuration switches compatible with various modem series
- Support for Windows, Ubuntu, Raspberry Pi OS, OpenWRT
- Reset button, LED indicator, power switch
- Power from USB or external source via USB Type-C
- Reserved pads for UART and audio
- Support for active cooling (5 V fan connector)
Included
- 4G/5G expansion board for Jetson Orin ×1
- Quectel RM520N-GL modem ×1
- 5G antennas ×4
- External GPS antenna ×1
- IPEX1 to IPEX4 cables (13 cm) ×2
- IPEX1 to IPEX4 cables (5 cm) ×2
- USB 3.0 Type-A cable (dual plug) ×1
- USB 3.0 Type-C adapter ×1
- Heatsink ×1
- Screwdriver ×1
- Mounting screw kit ×1
- SMA caps (5 pcs) ×1
