5G module SIM8260G-M2 with expansion board for Jetson Orin – Waveshare 32317
ID: 1201196
zł1,172.85
Tax included
zł953.54 tax excl.

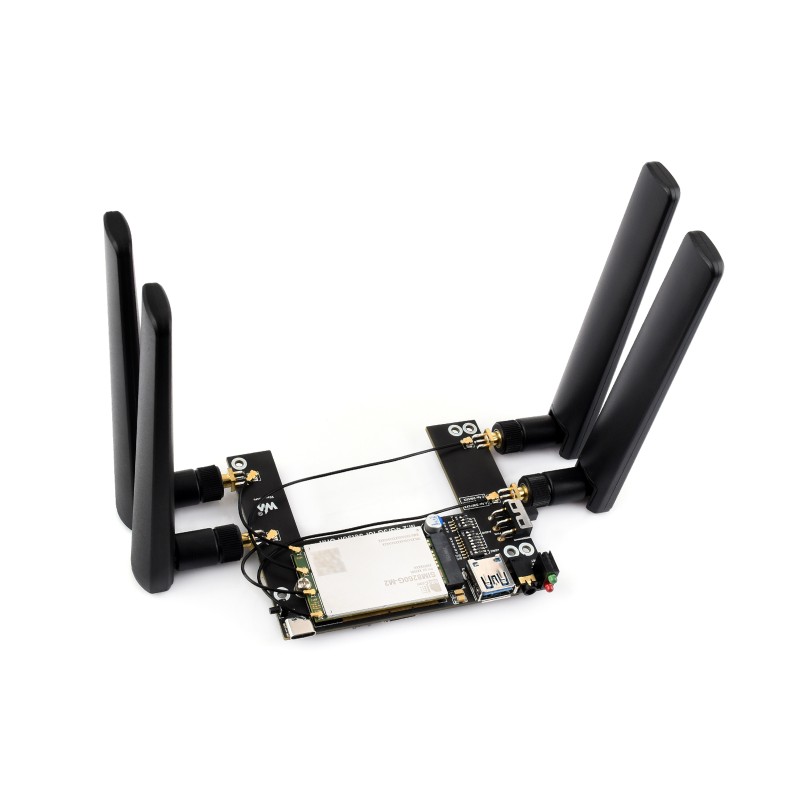

SIM8260G-M2 5G for Jetson Orin is a complete kit for integrating 5G connectivity with the Jetson Orin platform, offering global Sub-6G band coverage, GNSS positioning, eSIM/nanoSIM support, and the ability for voice and data connections. Ideal for use in edge computing systems, IoT, HMI, and in projects requiring fast and stable Internet connection.
Description
The SIM8260G-M2 5G for Jetson Orin set is a complete communication module designed for the Jetson Orin platform, enabling access to high-speed data transmission in 5G NSA/SA, 4G LTE and 3G standards. It is based on the SIM8260G-M2 module built on the Qualcomm platform, supporting global Sub-6G bands and multi-system GNSS positioning (GPS, GLONASS, Beidou, Galileo, QZSS). The expansion board includes an M.2 B-Key slot, integrated power and audio circuits, antenna connectors and SIM card sockets (nanoSIM + eSIM).
The module communicates with hosts such as Jetson Orin, Raspberry Pi and PC via a USB 3.1 interface. The built-in audio codec allows voice calls (with compatible SIMCOM modules), and with extensive system support the device is suitable for data transmission, voice communication, IoT systems, monitoring and cloud platform integration.
Properties
- 5G SIM8260G-M2 module (Sub-6G, global bands)
- Network support: 5G NSA/SA, LTE, WCDMA
- GNSS positioning: GPS, GLONASS, BeiDou, Galileo, QZSS
- Host interface: USB 3.1 (compatible with USB 2.0)
- M.2 B-Key slot, compatibility with SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 modules
- SMA antenna connectors ×4 + IPEX1–IPEX4 adapters
- Support for 1× nanoSIM and 1× eSIM (QFN-8, 5×6 mm, switching via AT commands)
- Audio circuit with codec (support for SIM82XX / SIM7600X voice calls)
- Power supply: USB-C 5 V / 3 A or USB 3.1 port (switchable)
- Power and reset button, status LED
- Supported systems: Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT
- Network protocols: TCP/IP, IPv4/IPv6, FTP(S), HTTP(S), MQTTS, DNS, SSL3.0
- SMS sending and voice calls via AT commands
- Support for active cooling (5 V fan connector)
- Dimensions: 100 × 79 mm
Included
- SIM8260G-M2 module ×1
- M.2 4G/5G expansion board for Jetson Orin ×1
- 5G SMA antennas ×4
- External GPS antenna ×1
- IPEX1 to IPEX4 cables (~13 cm ×2, ~5 cm ×2)
- SMA covers (5 pcs)
- Heatsink ×1
- USB 3.0 (C) adapter ×1
- USB 3.0 type-A cable (dual plug) ×1
- Screwdriver ×1
- Mounting screws set ×1
