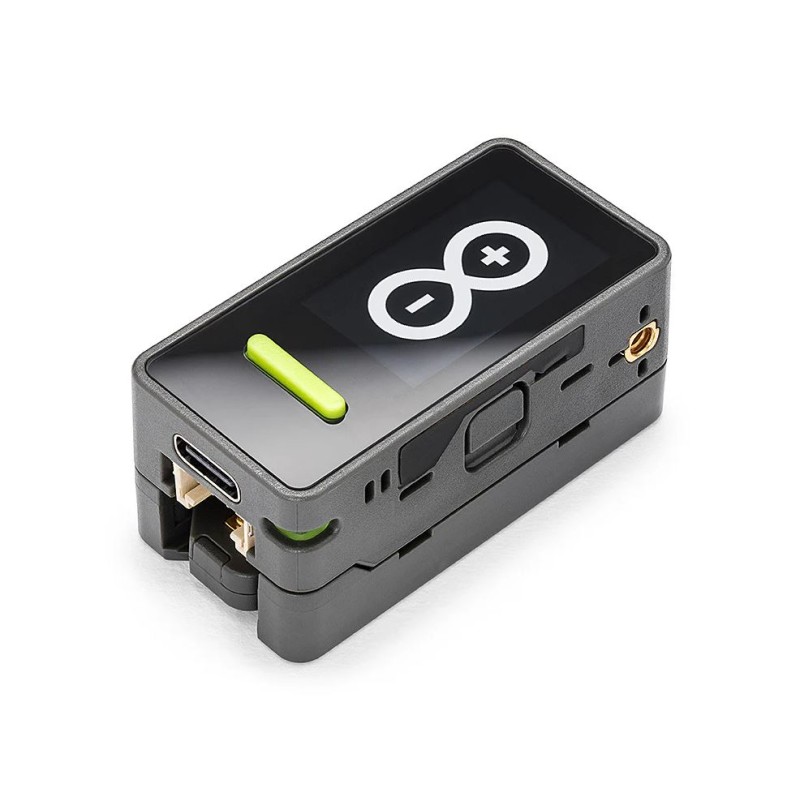

  • Main view
  • Device with detached antenna
  • Device with mounted antenna
  • Disassembled device - top view
  • Disassembled device - pin description
  • Disassembled device - angled view
  • HAT port
  • Connectors and LoRa antenna socket
  • Qwiic connector (I2C) view
ID: 1203248
zł216.46
Tax included

zł175.98 tax excl.

Compact IoT development kit based on the ESP32-C6 microcontroller with support for WiFi6, Bluetooth 5.3, Thread, and LoRa, featuring a 1.14" touch display, LiPo battery, and Grove and Qwiic connectors. Arduino TPX00227

24h
Available
Available quantity: 10
Kamami is the official distributor of Arduino development kits and accessories. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Arduino Nesso N1 is designed for the development and prototyping of IoT devices that require support for multiple wireless communication standards within a single hardware platform. The integrated ESP32-C6 microcontroller based on the RISC-V architecture enables applications using WiFi6, Bluetooth 5.3, Thread, Zigbee, and LoRa, allowing integration of devices operating in both local networks and long-range, low-power communication systems.

The module features a 1.14" IPS touch display that enables local data visualization, device configuration, and user interface operation without the need for additional peripherals. Programmable buttons, an RGB LED, a passive buzzer, and an infrared transmitter support the development of interactive control projects and automation systems using IR-enabled devices.


The integrated 6-axis IMU allows motion detection, orientation tracking, and mechanical event sensing, making the device suitable for mobile applications, monitoring systems, and edge IoT solutions. The built-in 250 mAh lithium-polymer battery enables autonomous operation, while the power management system supports simultaneous charging and operation via the USB-C connector.

Functionality can be expanded using Grove and Qwiic connectors, as well as a HAT port compatible with M5StickC accessories, allowing connection of sensors, actuators, and communication expansion modules. Support for Arduino IDE, MicroPython, and integration with Arduino Cloud simplifies programming, remote monitoring, and data visualization in educational, industrial, and research projects.

Features

  • Microcontroller: ESP32-C6 RISC-V 32-bit up to 160 MHz
  • Flash memory: 16 MB
  • SRAM: 512 kB
  • Wireless connectivity: WiFi6 2.4 GHz, Bluetooth 5.3, Thread 1.4, Zigbee 3.0, LoRa 850-960 MHz
  • LoRa module: SX1262
  • Display: 1.14" IPS LCD 135 x 240 px with touch panel
  • Sensors: 6-axis IMU
  • Expansion interfaces: Grove, Qwiic, HAT connector compatible with M5StickC
  • User interface elements: 2 programmable buttons, power button, RGB LED, passive buzzer, IR transmitter
  • Power supply: USB-C 5 V, built-in LiPo battery 250 mAh
  • Operating voltage: 3.3 V
  • Operating temperature: 0°C ~ 40°C
  • Dimensions: 48 x 24 x 14 mm

Kit includes

  • Arduino Nesso N1 module with built-in battery
  • LoRa antenna
1203248

Data sheet

Microcontroller
ESP32-C6
