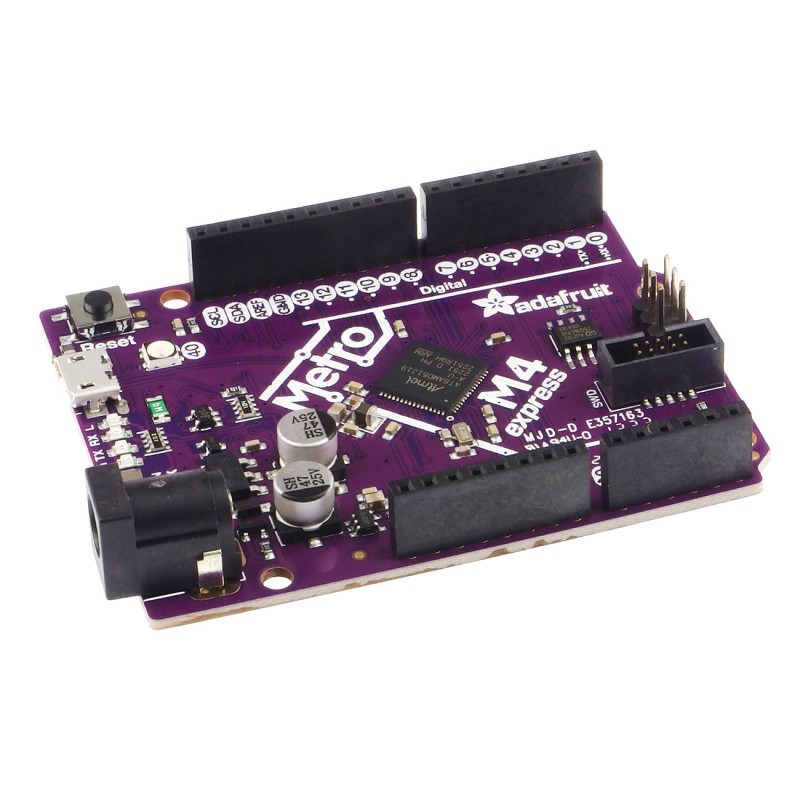

Metro M4 - ATSAMD51 microcontroller board
ID: 565917
5906623429615
zł170.13
Tax included
zł138.32 tax excl.
The board is equipped with ATSAMD51 microcontroller with ARM Cortex-M4 core and SPI Flash memory, communication interfaces and RGB diode. Adafruit 3382
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Development kit equipped with ATSAMD51G19 microcontroller with ARM Cortex-M4 core operating at frequency up to 120 MHz. On the board, the user will find a 3.3 V and 5 V voltage stabilizer, a reset button, an RGB diode, a microUSB connector for powering and programming the module and 25 GPIO outputs, on which such peripherals as ADC inputs, DAC outputs, PWM outputs and interfaces were led out communication I2C, UART and SPI. The platform supports the CircuitPython and Arduino IDE programming environments. Programs can be loaded to the memory via the USB interface using the built-in UF2 bootloader or via the SWD interface. The board can be powered via USB or DC socket with voltage from 7 to 9 V. Full documentation with examples is available on the product page.
Features
- ATSAMD51 32-bit microcontroller with Cortex M4 core, operating at 120 MHz
- Support for floating point calculations with Cortex M4 DSP instructions
- 512 kB flash, 192 kB RAM
- 2 MB SPI FLASH
- Stabilizer 3.3 V, 5 V
- Native USB support, with USB bootloader
- SWD interface for debugging
- 25 x GPIO:
- 12-bit digital-to-analog converter
- 12-bit ADC (6 analog pins)
- SPI, I2C and UART
- PWM outputs
- 8 bit controller for camera / video input
- 4 LEDs: Power, TX, User RX
- LED RGB NeoPixel
- Reset button
- Power supply: microUSB or external source from 7 to 9 V
- Dimensions: 72 x 54 x 15 mm
Kit contains
- METRO M4
- 4 x rubber stand
565917
Data sheet
- Microcontroller
- ATSAMD51
- Core
- Cortex-M4
- Frequency
- 120MHz
- Flash memory
- 512kB
- RAM
- 192kB
- EEPROM memory
- none
- Number of digital pins
- 25
- Number of PWM channels
- 22
- Ilość wejść analogowych
- 8
- ADC
- 1x 12bit
- DAC
- 1x 10bit
- CAN
- none
- USB
- 1
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- GSM/GPRS module
- No
- Logic voltage
- 3,3 V
- MicroSD slot
- No
- Supply voltage min
- 7
- Supply voltages max
- 9
