The stepper motor driver with Allegro A4988 (A4988 Stepper Motor Driver Carrier) allows you to supply a bipolar current of up to 2A per phase. The system can be supplied with voltage up to 35V, in the set there is a heat sink. It is compatible with Polol 1182

24h
Available
Available quantity: 88


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

Stepper motor driver plate (bipolar) with Allegro MicroSystems A4988. It allows you to supply the stepper motor with current consumption of up to 2A per phase. It is compatible with Polol 1182.

properties

  • Built-in A4988 system from Allegro MicroSystems
  • Possibility to configure the working mode: full step, half step, 1/4 step, 1/8 step, 1/16 step
  • Power supply: 8 - 35 V
  • The voltage of the logic part: 3-5,5 V
  • Adjustable motor current using a potentiometer
  • Intelligent control, automatically selects the correct slope rise mode (fast rise or slow rise)
  • Protection against too low input voltage
  • Overheating protection
  • Protection against short-circuit to ground and short-circuit of the load

Configuration

Dependence of the operating mode on the state of the MS1 ... MS3 line
MS1 MS2 MS3 Operating mode
Short Short Short Full steps
Tall Short Short Half-steps
Short Tall Short 1/4 step-
Tall Tall Short 1/8 step-
Tall Tall Tall 1/16-step

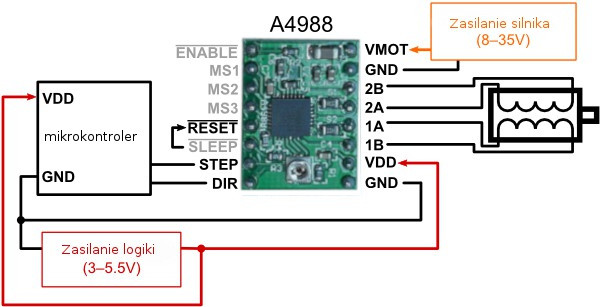

The minimum configuration of the driver's peripherals

Included

  • Driver module with A4988 system
  • Radiator with dimensions of 9 mm x 9.2 mm with an adhesive layer
561437

Data sheet

Output current
2A
Number of channels
2
Supply voltage min
8 V
Supply voltages max
35 V
