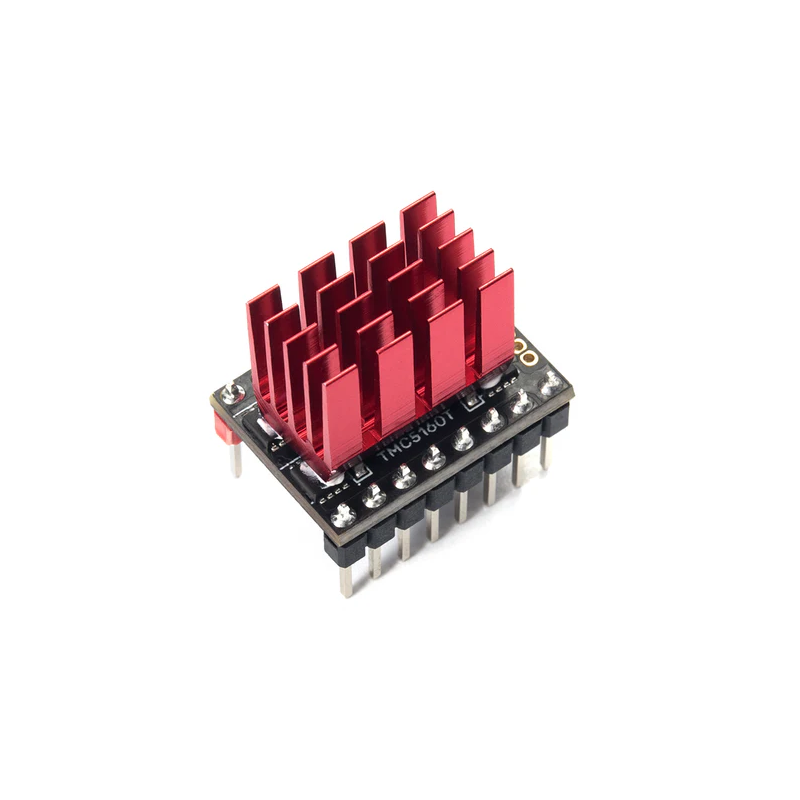

The BIGTREETECH TMC5160T Pro V1.0 is an advanced stepper motor driver based on the TMC5160-TA chip by Trinamic, designed for precise and quiet motor control in 3D printers, CNC machines, and automation systems. The module supports a motor supply voltage of 8–56 V, microstepping up to 1/256, and operation in SPI and SD (Standalone) modes, providing high performance and stable operation of stepper motors. BIGTREETECH TMC5160T Pro V1.0

24h
Available
Available quantity: 5
Kamami is the official distributor of advanced 3D printing controllers and BigTreeTech accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The BIGTREETECH TMC5160T Pro V1.0 is a high-performance stepper motor driver utilizing the TMC5160-TA chip from Trinamic, designed for applications requiring high precision, stability, and quiet motor operation. Thanks to the wide 8–56 V supply voltage range, the module can work with many types of stepper motors used in 3D printers, CNC plotters, and automation systems.

The driver features external MOSFET transistors, which increase current handling capability and improve motor driving efficiency. The maximum operating current reaches up to 3 A, allowing control of more demanding motors used in systems with higher mechanical loads.

The chip supports microstepping up to 1/256, ensuring smooth motion and very precise positioning. The driver can operate in SPI mode, allowing full configuration of parameters via a controller, or in SD (Standalone) mode, enabling operation without SPI communication.

The module follows the StepStick form factor, making it compatible with many popular controller boards used in 3D printers and RepRap projects, such as BIGTREETECH SKR, RAMPS, and GEN.

Features

  • Driver IC: TMC5160-TA (Trinamic)
  • Operating modes: SPI, SD (Standalone)
  • Motor supply voltage: 8–56 V
  • Logic voltage: 3.3 V or 5 V
  • Maximum output current: up to 3 A
  • Maximum microstepping: 1/256
  • External MOSFET transistors for higher current capability
  • Module format: StepStick
  • Module dimensions: 64 × 56 × 32.55 mm
  • Compatibility: SKR, RAMPS, GEN, and other RepRap controllers

Kit includes

  • Assembled BIGTREETECH TMC5160T Pro V1.0 stepper motor driver module
1185555

Data sheet

Output current
3A
Number of channels
1
Supply voltage min
8 V
Supply voltages max
56 V
