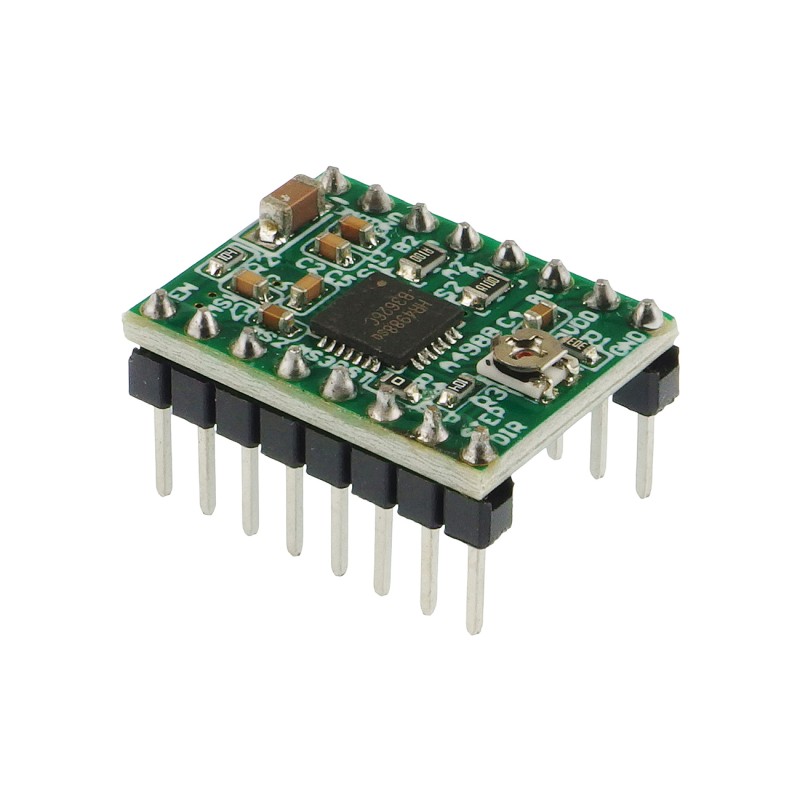

The stepper motor driver with Allegro A4988 (A4988 Stepper Motor Driver Carrier) allows you to supply a bipolar current of up to 2A per phase. The system can be supplied with voltage up to 35V, in the set there is a heat sink. It is compatible with Polol 1182

6 weeks
Awaiting delivery

Description

Stepper motor driver plate (bipolar) with Allegro MicroSystems A4988. It allows you to supply the stepper motor with current consumption of up to 2A per phase. It is compatible with Polol 1182.

properties

  • Built-in A4988 system from Allegro MicroSystems
  • Possibility to configure the working mode: full step, half step, 1/4 step, 1/8 step, 1/16 step
  • Power supply: 8 - 35 V
  • The voltage of the logic part: 3-5,5 V
  • Adjustable motor current using a potentiometer
  • Intelligent control, automatically selects the correct slope rise mode (fast rise or slow rise)
  • Protection against too low input voltage
  • Overheating protection
  • Protection against short-circuit to ground and short-circuit of the load

Configuration

Dependence of the operating mode on the state of the MS1 ... MS3 line
MS1 MS2 MS3 Operating mode
Short Short Short Full steps
Tall Short Short Half-steps
Short Tall Short 1/4 step-
Tall Tall Short 1/8 step-
Tall Tall Tall 1/16-step
The minimum configuration of the driver's peripherals

Included

  • Driver module with A4988 system
  • Radiator with dimensions of 9 mm x 9.2 mm with an adhesive layer
