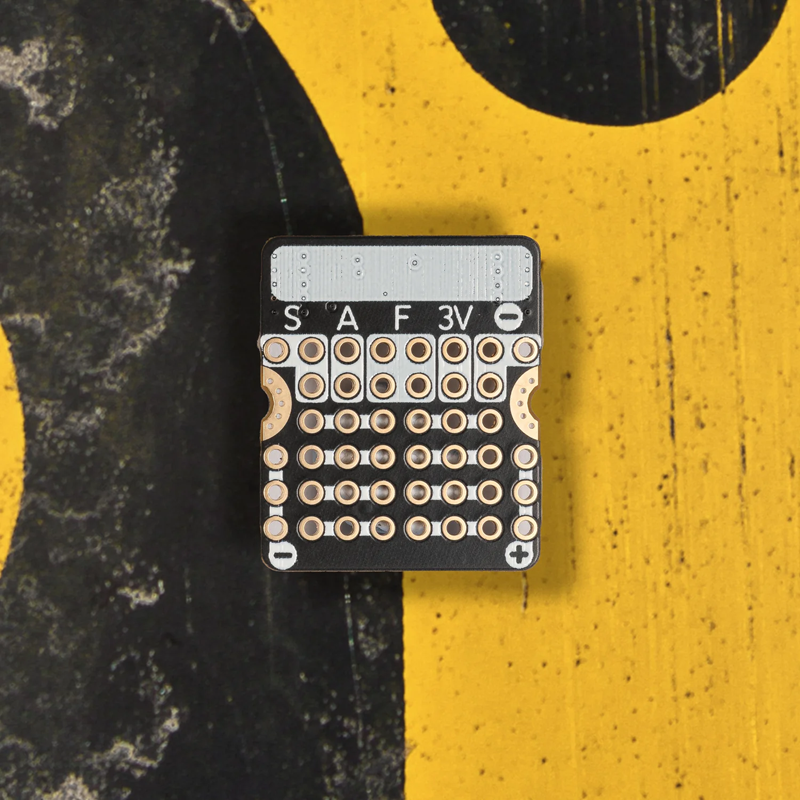

Proto Module - prototyping board for Yukon
ID: 1202076
zł21.75
Tax included
zł17.68 tax excl.
A prototyping module that allows you to quickly create custom extensions for the Pimoroni Yukon system. All power lines and I/O headers are provided as 2.54mm pitch pads, making it easy to connect THT components. The 6x4 pad prototyping area allows you to commission and test your solution without designing your own PCBs. Pimoroni PIM698
Description
A practical prototyping module that enables fast and convenient creation of custom extensions for the Yukon system. The product is designed for hobbyists, engineers, and electronics learners who want an easy way to test new ideas. The module exposes all power lines and input/output signals of the Yukon connector as convenient solder pads. This makes it easy to connect components without the need to design a custom PCB. The 2.54 mm pad pitch ensures full compatibility with popular THT components and goldpin connectors.
The 6 × 4 pad prototyping area allows for building small test and experimental circuits. The module is ideal for rapid prototyping, sensor testing, or creating custom interfaces. Additional space on the board allows you to label the module name or function, making project organization easier. The board is fully assembled, so it can be used immediately after unpacking. Compact dimensions ensure the module takes up minimal space inside an enclosure. The product is prepared for seamless cooperation with the system. It is a reliable tool for anyone who wants to develop their own electronic projects in a flexible way.
Features

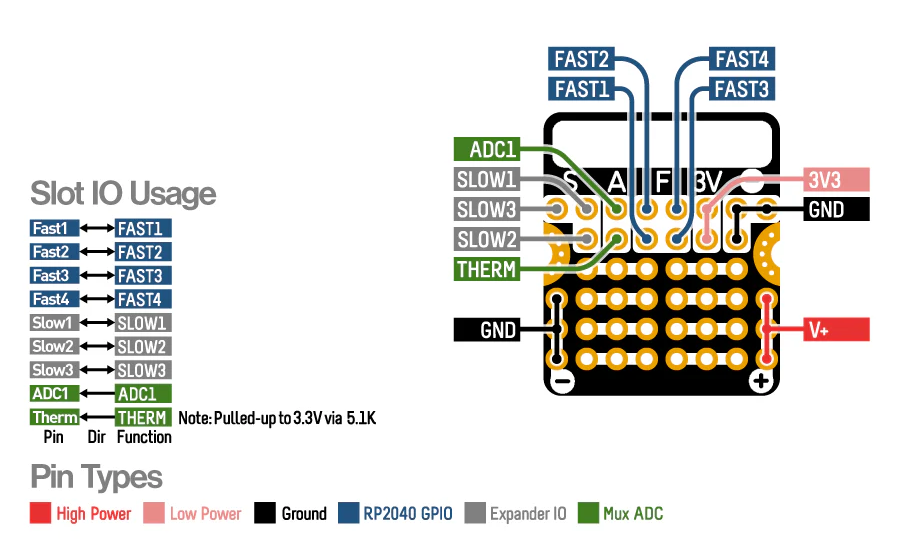

- Exposure of all IO lines and power supply of the Yukon connector
- 2.54 mm solder pad pitch
- 6 × 4 pad prototyping area
- Space for labeling the module name or function
- Fully assembled board, ready to use
- Compatibility with the Pimoroni Yukon system
- Dimensions: 24 × 20 × 5.3 mm
