Feather RP2350 - Development board with RP2350 microcontroller and 8MB PSRAM
ID: 1196814
5902186301726
zł78.54
Tax included
zł63.85 tax excl.
A modern development board in the Feather format, equipped with a dual-core Raspberry Pi RP2350 Cortex M33 microcontroller clocked at 150 MHz and 8 MB of PSRAM, ideal for advanced IoT projects and Micropython/CircuitPython applications. The board offers a wide range of ports, including an HSTX 22-pin connector, USB-C with bootloader, and STEMMA QT, as well as numerous GPIOs and an integrated LiPo battery charger, combining high performance with convenience of use. Adafruit 6130
Description

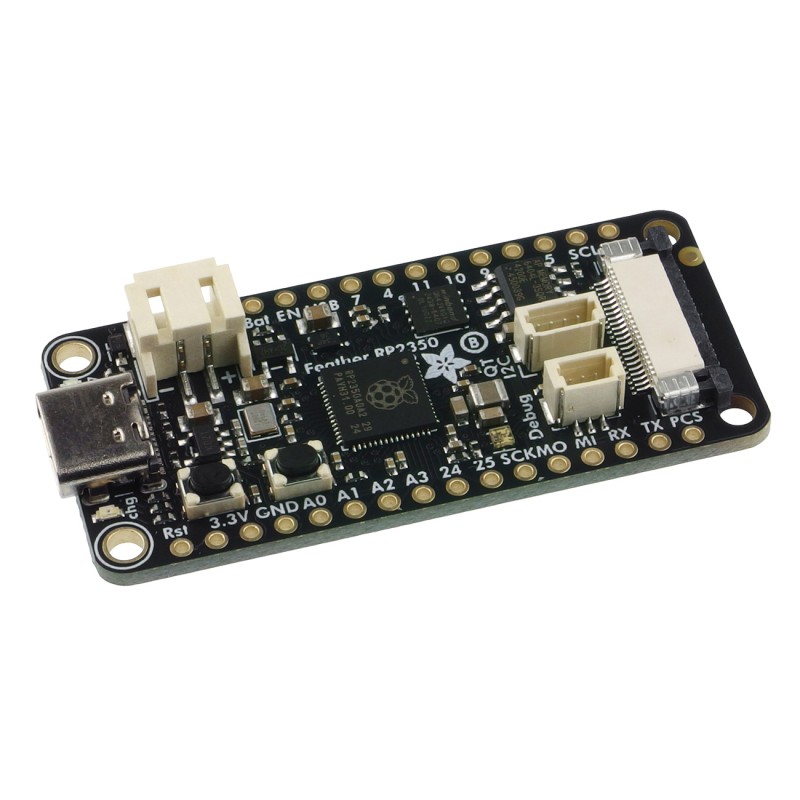

Feather RP2350 HSTX is a modern Feather-format development board equipped with the new Raspberry Pi RP2350 microcontroller featuring a dual-core Cortex M33 processor clocked at 150 MHz. Thanks to its 8 MB PSRAM, it is ideal for projects requiring large memory buffers, such as advanced IoT applications or Micropython/CircuitPython. The board offers numerous features and ports, including a 22-pin HSTX connector for high-speed data transfer, a USB-C port with a built-in ROM bootloader, and a STEMMA QT connector for easy sensor and accessory connection. The RP2350 is a significant advancement over the popular RP2040 — providing twice the SRAM, hardware floating-point support, and a modern ARM Cortex-M33 core, resulting in substantially higher performance. Additionally, it offers 29 GPIOs: 21 on standard Feather pins and 8 on the HSTX connector, making this board very versatile. Integrated LiPo battery charging, charging status indicator, as well as reset and BOOTSEL buttons facilitate operation. Feather RP2350 HSTX is an excellent choice for advanced projects requiring power, flexibility, and convenience in a compact format.
Features
- Microcontroller: RP2350 Cortex M33 dual core, 150 MHz
- RAM: 520 KB SRAM + 8 MB QSPI PSRAM
- Flash Memory: 8 MB QSPI (external)
- Connectors: USB-C, 22-pin HSTX, STEMMA QT, 3-pin JST SH for SWD debugging
- Interfaces: 2x I2C, 2x SPI, 2x UART, 21 GPIO
- 24 PWM channels
- 4x 12-bit ADCs
- Integrated LiPo battery charger (200 mA+) with status indicator
- Buttons: Reset and BOOTSEL (bootloader)
- Built-in red LED (pin 7) and RGB NeoPixel
- 12 MHz crystal oscillator
- 3.3V regulator with max current of 500 mA
- Support for MicroPython, CircuitPython, C/C++, Arduino
- Dimensions: 52.2 x 22.8 x 7.2 mm
- Weight: 5.6 g
Kit contains
- Feather RP2350 development board
- 2 x goldpin headers
1196814
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 8 MB
- Number of I/O
- 21
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 50,8 mm
- Width
- 22,8 mm
- USB connector type
- USB type C
