BME680 Air Quality Environmental Sensor I2C Qwiic - Soldered
ID: 1208257
zł70.26
Tax included
zł57.12 tax excl.
BME680 environmental sensor module for measuring temperature, humidity, atmospheric pressure, and parameters used for air quality assessment. It communicates over I2C at address 0x76 and features two Qwiic connectors for integration with compatible boards. The breakout supports 3.3V and 5V power supplies. Soldered 333035
Description

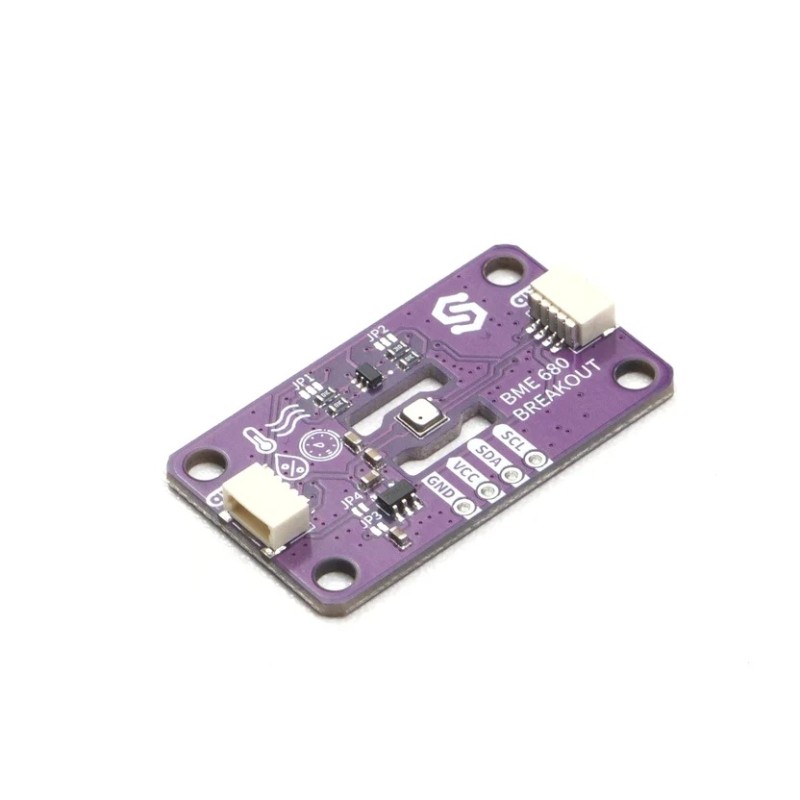

The device Enviromental & Air Quality Sensor BME680 Breakout by Soldered uses the BME680 sensor from Bosch to measure temperature, relative humidity, atmospheric pressure, and gas sensor resistance. Gas sensor data can be processed to determine an IAQ air quality index. Altitude can also be calculated from atmospheric pressure measurements.
The temperature measurement range is -40 to 85°C, relative humidity range is 0–100% RH, and pressure range is 30–110kPa. The manufacturer specifies a temperature accuracy of ±1°C, humidity accuracy of ±3% RH, and pressure accuracy of ±12Pa. The specified IAQ index range is 0–500.
Communication with a microcontroller is provided through the I2C bus with a fixed address of 0x76. The board features two Qwiic connectors for connection to compatible development boards and additional modules without separate SDA and SCL wiring. VCC, GND, SDA, and SCL pins are also available for conventional header connections.
The board uses 3.3V logic and includes a regulator allowing operation from a 3.3V or 5V supply. The manufacturer specifies a maximum current consumption of 849µA during measurement and 0.15µA in idle mode. Board dimensions are 22 × 22mm. Applications include weather stations, environmental monitoring devices, building automation systems, and air quality monitoring equipment.
Features
- Measurements
- Sensor: BME680
- Temperature measurement: -40 to 85°C
- Temperature accuracy: ±1°C
- Relative humidity measurement: 0–100% RH
- Humidity accuracy: ±3% RH
- Pressure measurement: 30–110kPa
- Pressure accuracy: ±12Pa
- Gas sensor resistance measurement
- IAQ air quality index range: 0–500
- Altitude calculation based on atmospheric pressure
- Communication
- Interface: I2C
- I2C address: 0x76
- Connectors: 2 × Qwiic
- Pins: VCC, GND, SDA, SCL
- Power supply and mechanical parameters
- Logic level: 3.3V
- Board supply: 3.3V or 5V
- Maximum current consumption during measurement: 849µA
- Idle current consumption: 0.15µA
- Dimensions: 22 × 22mm
- Header pin hole diameter: 1.5mm
- Mounting hole diameter: 3.2mm
- Mounting holes designed for M3 screws
1208257
Data sheet
- Interface
- I2C
- Type of sensor
- BME680
- Power supply voltage
- 3,3 - 5 V
- Concentration measurement
- VOC
- Sensor type
- Pressure, temperature, humidity, volatile organic compounds
