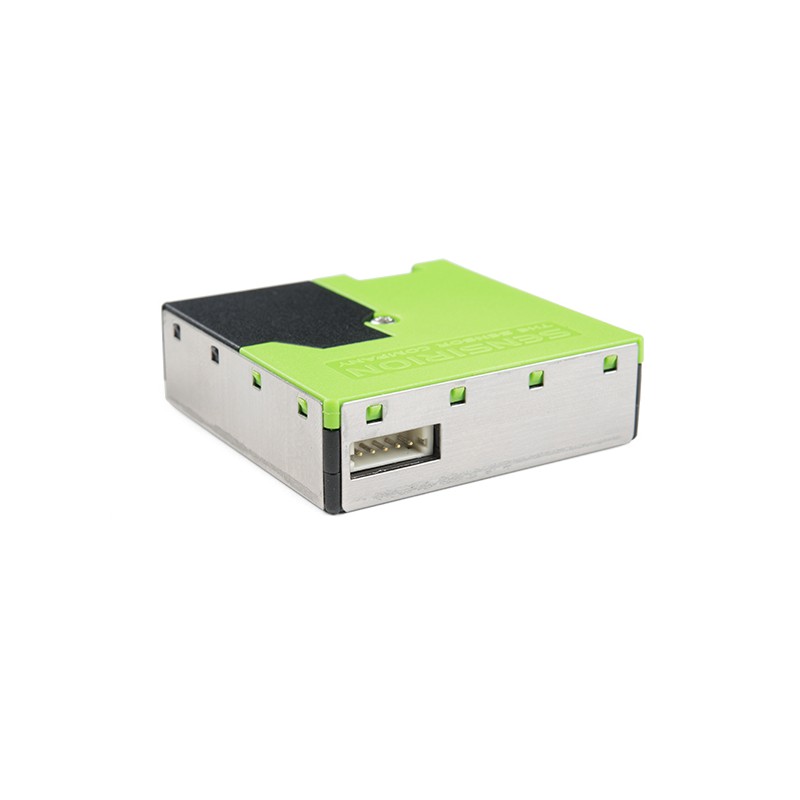

  • Side view
ID: 1183648
5906623418312
zł286.50
Tax included

zł232.93 tax excl.

An optical particle sensor that uses laser scattering and Sensirion's innovative contamination resistance technology. It enables users to measure mass concentration and particle number. SparkFun SEN-15103

3 weeks
Awaiting delivery
Kamami is the official distributor of Sparkfun modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Optical particle sensor that uses laser scattering and Sensirion's innovative pollution resistance technology. It allows users to measure mass concentration and particle counts of 1 µg/m^3, 2.5 µg/m^3, 4 µg/m^3 and 10 µg/m^3. The compact housing, combined with a sensor lifetime of more than eight years and a self-cleaning procedure, makes the SPS30 an ideal sensor for projects in hard-to-reach locations. The module has a 5-pin interface that can communicate via two different protocols, UART and I2C (the Arduino library does not fully support I2C support). The SPS30 requires a 5 V power supply, but can work with 3.3 V and 5 V microcontrollers.

Features

  • Mass concentration range: 0 to 1000 μg/m3
  • Mass concentration magnitude range:
    • PM1.0: 0.3 to 1.0 μm
    • PM2.5: 0.3 to 2.5 μm
    • PM4: 0.3 to 4.0 μm
    • PM10: 0.3 to 10.0 μm
  • Maximum long-term mass concentration precision:
    • 0 to 100 μg/m3 ±1.25 μg/m3/year
    • 100 to 1000 μg/m3 ±1,25 μg/m3/year
  • Numerical concentration range: 0 to 3'000 #/cm3
  • Numerical concentration size range:
    • PM0.5: 0.3 to 0.5 μm
    • PM1.0: 0.3 to 1.0 μm
    • PM2.5: 0.3 to 2.5 μm
    • PM4: 0.3 to 4.0 μm
    • PM10: 0.3 to 10.0 μm
  • Maximum long-term numerical concentration precision:
    • 0 to 1000 #/cm3 ±12.5 #/cm3/year
    • 1000 to 3000 #/cm3 ±1.25 #/cm3/year
  • I2C, UART interface
  • Weight: 36.4 g

Kit contains

  • SPS30 sensor
  • 5-pin 150 mm cable
1183648

Data sheet

Interface
I2C/UART
Type of sensor
inny
Power supply voltage
5 V
Concentration measurement
Cząstek stałych
