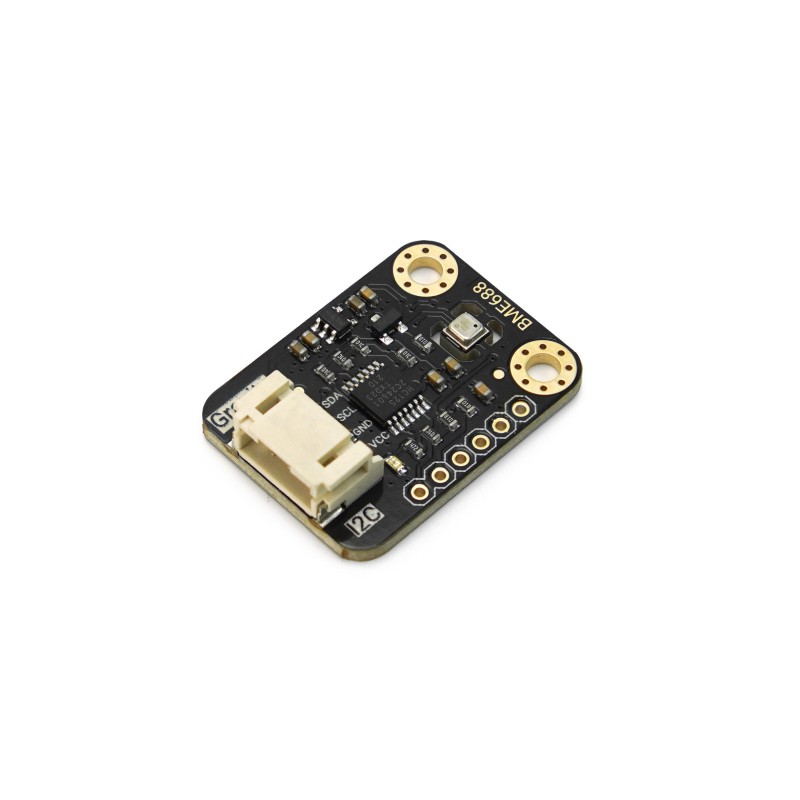

Gravity: BME688 AI Environmental Sensor - BME688 environmental sensor module
ID: 1196958
5902186301009
zł132.15
Tax included
zł107.44 tax excl.
Compact MEMS environmental sensor capable of measuring temperature, humidity, pressure and VOC, with I2C and SPI support and AI-powered gas analysis. Ideal for projects such as weather stations, smart home systems and air quality monitors, it provides high measurement precision and integration flexibility. DFRobot SEN0617
Description
The DFRobot Gravity BME688 Environmental Sensor is an advanced, compact MEMS sensor that enables precise measurement of temperature, humidity, atmospheric pressure, and volatile organic compounds (VOCs). With support for both I2C and SPI protocols, it can be easily integrated into various electronic systems. A standout feature of the sensor is its gas analysis capability using artificial intelligence, making it ideal for air quality monitoring and industrial safety systems.
This device is perfect for applications such as DIY weather stations, portable environmental monitors, smart home systems, and agricultural condition monitoring. With improved temperature accuracy (±0.5°C) and a built-in heating element, it delivers stable and reliable data. Compatibility with Bosch BME AI-Studio and the BSEC2-Arduino library allows for the creation of custom gas analysis profiles tailored to specific use cases. The sensor’s compact size makes it easy to implement even in constrained spaces.
Features
- Communication Interface: I2C/SPI
- Temperature Measurement Range: -40 to +85°C
- Temperature Accuracy: ±0.5°C (0–65°C)
- Humidity Range: 0 to 100% RH
- Humidity Accuracy: ±3% RH (20 to 80% RH at 25°C)
- Pressure Range: 300 to 1100 hPa
- Pressure Accuracy: ±0.6 hPa (300 to 1100 hPa at 0–65°C)
- Supply Voltage: 3.3 to 5V DC
- Current Consumption: 5mA (25mA during active VOC measurement)
- Dimensions: 30 x 22 mm
Kit contains
- Gravity: I2C BME688 Environmental Sensor
- Gravity UART/I2C Cable
- XH2.54 10-pin Connector
1196958
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- BME688
- Power supply voltage
- 3,3 - 5 V
- Concentration measurement
- VOC
