zł114.39 tax excl.
Laser sensor of air pollution with PM2,5 and PM10 particles. It allows for precise analysis of the amount of pollutants in the environment, has small dimensions and a built-in silent transfer fan. The data is output to the UART interface and via the PWM signal. Nova Fitness SDS018
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Nova Fitness SDS018 is a laser sensor of air pollution with PM2,5 and PM10 particles. It allows for precise analysis of the amount of pollutants in the environment, has small dimensions and a built-in silent transfer fan. The data is output to the UART interface and via the PWM signal.
properties
- Measured parameters: concentration of PM2.5 and PM10
- Measurement range: 0.0-999.9 μg / m 3
- Power supply: 5 V
- Maximum power consumption during operation: 60 mA ± 10 mA
- Power consumption during rest: <4 mA
- Permissible operating temperature: -10 ~ 50 ° C
- Permissible operating humidity: 0-90% RH
- Permissible operating pressure: 86-110 KPa
- Response time: 1 sec
- Frequency of measurements: 1 Hz
- Minimum detectable particle size: 0.3 μm
- Maximum relative error: ± 15% and ± 10 μg / m 3
- Dimensions: 59 x 45 x 20 mm
Connection
pin | Importance |
1 | Not connected |
2 | PM2.5: 0-999 μg / m3; PWM |
3 | 5 V - power supply |
4 | PM10: 0-999 μg / m3; PWM |
5 | GND |
6 | RX UART (TTL) 3.3 V |
7 | TX UART (TTL) 3.3 V |

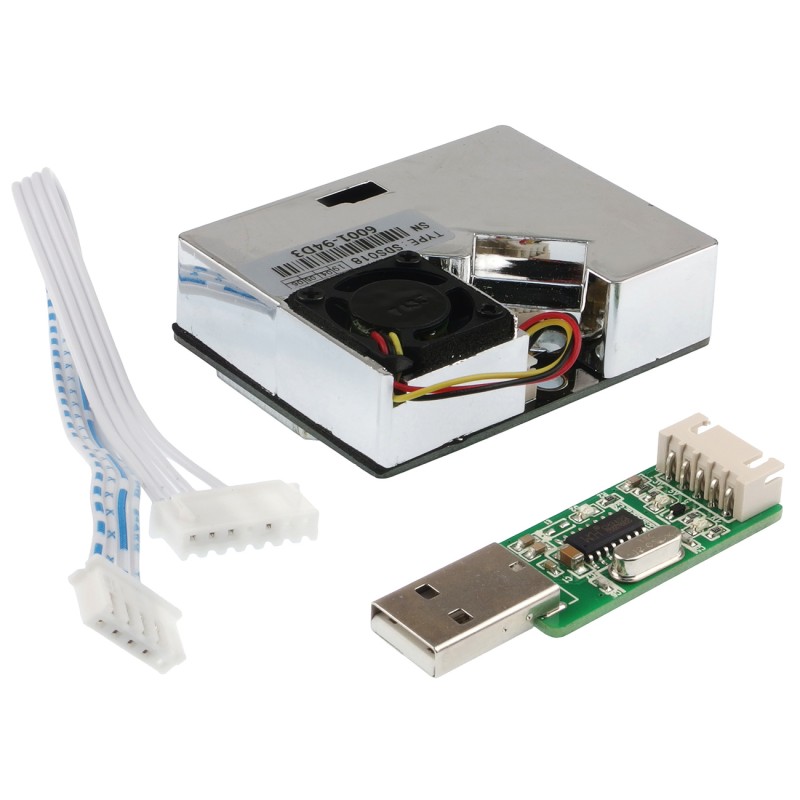

Included
- SDS018 dust sensor
- USB / UART converter
- 4-wire connection cable
Data sheet
- Interface
- UART/sygnał analogowy
- Type of sensor
- inny
- Power supply voltage
- 5 V
- Concentration measurement
- PM2.5/PM10
