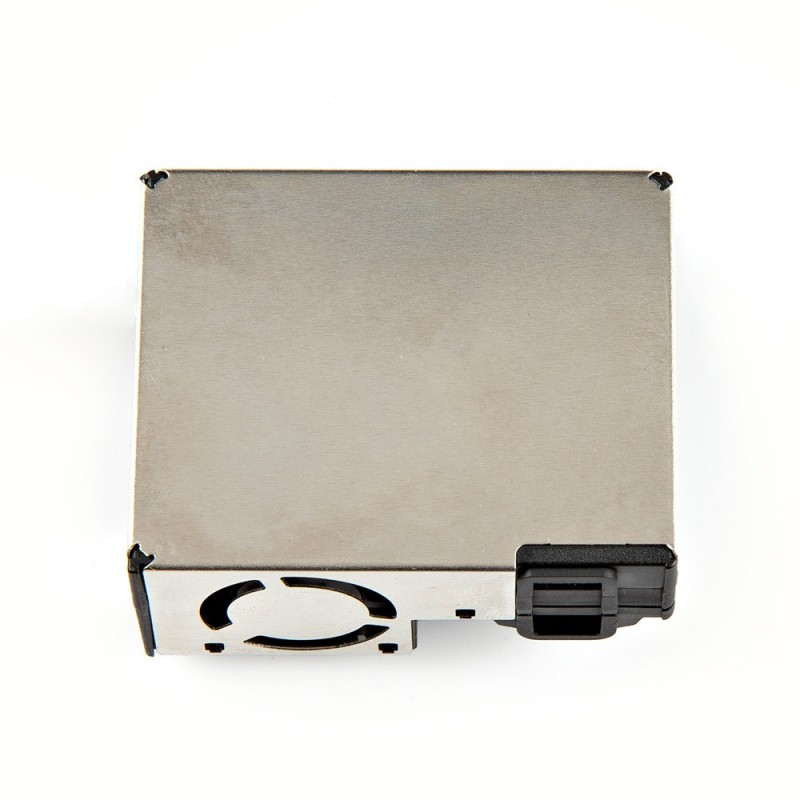

Sensirion Particle SEN55 - particulate, VOC, humidity and temperature sensor
ID: 1188474
5902186319202
zł139.00
Tax included
zł113.01 tax excl.
The SEN55 sensor module from Sensirion, which combines a sensor allowing the measurement of particulate matter, volatile organic compounds, NOx, humidity and temperature in one housing. SparkFun SEN-23715
Description
The SEN55 sensor module from Sensirion, which combines a sensor allowing the measurement of particulate matter, volatile organic compounds, NOx, humidity and temperature in one housing. It provides fully calibrated outputs with an I2C digital interface, a 24-hour service life of up to 10 years, and a compact housing. Combining all measurement parameters in one device allows users to reduce device development time using a comprehensive solution. Additionally, Sensirion Temperature Acceleration Routine (STAR) accelerates the device's response to changes in ambient temperature to provide end users with a better UX and more accurate measurements.
SEN55 uses the JST GHR connector. The sensor communicates via the I2C interface and is powered by 5 V. The manufacturer provides an Arduino library that makes it easier to start working with the sensor and test its capabilities.
Features
- Properties
- Supply voltage: 4.5V
- Average supply current: 63000uA
- Max. supply current: 110000uA
- Interfaces: I²C
- Size (LxWxH): 52.8 x 43.6 x 22.3 mm³
- Particulate Matter
- Mass concentration precision: ±10%
- Mass concentration range: 0 - 1000μg/m³
- Lifetime: > 10 years
- Particle size range: PM1.0, PM2.5, PM4 and PM10
- Temperature
- Typ. temperature accuracy: 0.45°C
- Operating temperature range: -10 - 50°C
- Response time(τ63%): < 60s
- Humidity
- Typ. relative humidity accuracy: 4.5 %RH
- Operating relative humidity range: 0 - 90 %RH
- Response time(τ63%): 20s
- VOC
- Sensor output: 0-500 VOC Index
- Measurement range: 0 - 1000ppm
- Response time(τ63%): < 10s
- Device-to-device var.: ±15% m.v.
- Limit of detection: < 0.05 ppm of ethanol equivalents or < 10 % of concentration setpoint, whichever is larger
- Switch-on time: 1h
- On-chip humidity compensation: Yes
1188474
Data sheet
- Interface
- I2C
- Type of sensor
- SEN55
- Power supply voltage
- 4.5V
- Concentration measurement
- PM1.0/PM2.5/PM10
