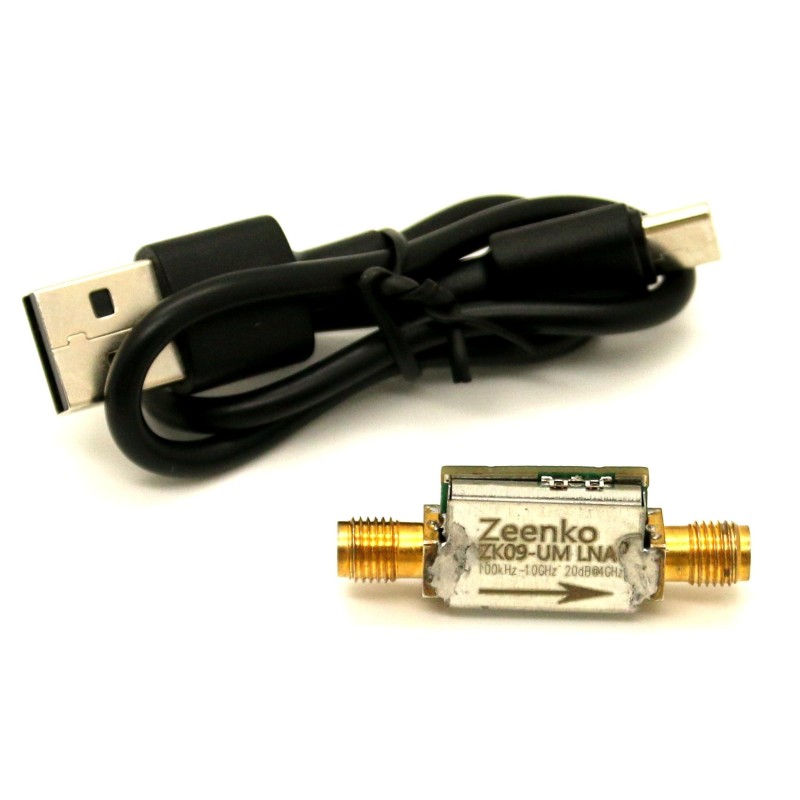

Low-noise RF amplifier 100 kHz – 10 GHz ZK09-UM Zeenko UM Series, USB-C
search
  • Low-noise RF amplifier 100 kHz – 10 GHz ZK09-UM Zeenko UM Series, USB-C
ID: 1201361
zł113.87
Tax included

zł92.58 tax excl.

Zeenko ZK09-UM is a compact low-noise RF amplifier operating in the 100 kHz to 10 GHz band, powered via USB-C and equipped with on-chip bias technology. It provides high linearity, stable gain, and a wide operating bandwidth, serving as an alternative to popular microwave amplifiers in laboratory and measurement applications.

6 weeks
Awaiting delivery

Description

The ZK09-UM is an ultra-wideband low-noise amplifier (LNA) from Zeenko, designed to operate in the 100 kHz to 10 GHz range. The module uses on-chip bias technology, eliminating the need for external bias adjustment, and draws 52 mA of supply current. It offers good gain flatness and stable operation across the wide band, making it suitable for measurement applications, receiver front-ends, and antenna systems.

The ZK09-UM can be used as a replacement for amplifiers such as the ADM-8095, ADM-8625, and HMC8413, providing high linearity and a low noise figure in applications requiring a broad frequency range.

Properties

  • Frequency range: 100 kHz – 10 GHz
  • Power supply: USB Type-C, 5 V
  • Supply current: 52 mA
  • Biasing: on-chip (no external adjustment required)
  • Gain:
  • 21 dB @ 100 kHz
  • 21.5 dB @ 5 MHz
  • 21.5 dB @ 10 MHz
  • 21.5 dB @ 100 MHz
  • 21.5 dB @ 1 GHz
  • 21 dB @ 2 GHz
  • 18 dB @ 5 GHz
  • 16.5 dB @ 8 GHz
  • 14 dB @ 9 GHz
  • 13 dB @ 10 GHz
  • Noise figure (NF):
  • 6.7 dB @ 10 MHz
  • 2.2 dB @ 100 MHz
  • 2 dB @ 1 GHz
  • 1.8 dB @ 2 GHz
  • 2.3 dB @ 3 GHz
  • 2.4 dB @ 4 GHz
  • 2.5 dB @ 5 GHz
  • 2.8 dB @ 6 GHz
  • 3.1 dB @ 7 GHz
  • 3.8 dB @ 9 GHz
  • 3.9 dB @ 10 GHz
  • OP1dB (1 dB compression point):
  • 11 dBm @ 10 MHz
  • 13 dBm @ 100 MHz
  • 13 dBm @ 1 GHz
  • 13 dBm @ 2 GHz
  • 13 dBm @ 3 GHz
  • 13 dBm @ 4 GHz
  • 13 dBm @ 5 GHz
  • 12 dBm @ 6 GHz
  • 11 dBm @ 7 GHz
  • 10 dBm @ 9 GHz
  • 9 dBm @ 10 GHz
  • OIP3 (third-order intercept point):
  • 24 dBm @ 10 MHz
  • 23 dBm @ 100 MHz
  • 22 dBm @ 1 GHz
  • 22 dBm @ 2 GHz
  • 22 dBm @ 3 GHz
  • 22 dBm @ 4 GHz
  • 22 dBm @ 5 GHz
  • 22 dBm @ 6 GHz
  • 22 dBm @ 7 GHz
  • 22 dBm @ 9 GHz
  • 22 dBm @ 10 GHz
  • Notes: ultra-wideband, low-noise, good gain flatness
  • Can be used as a replacement for: ADM-8095, ADM-8625, HMC8413
