DVB-T antenna amplifier LA20 12 V
ID: 1199806
5900804116677
zł12.02
Tax included
zł9.77 tax excl.

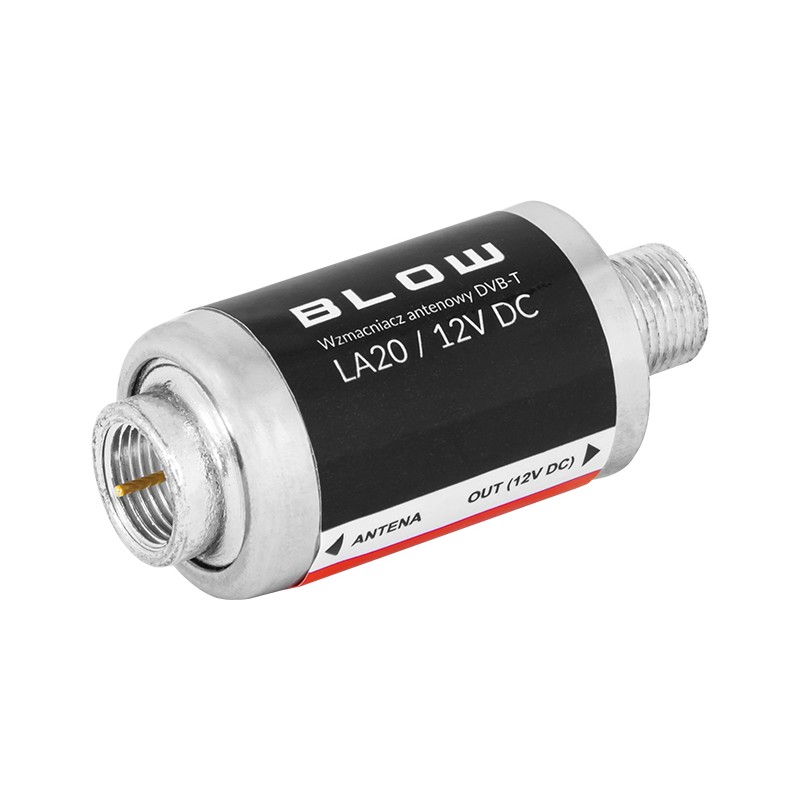

DVB-T amplifier LA20 by BLOW with 20 dB gain, powered by 12 V DC via coaxial cable. Designed to improve antenna signal quality in terrestrial TV installations.
Description
The BLOW LA20 DVB-T antenna amplifier is designed to enhance TV signal reception in installations with passive antennas. Powered with 12 V DC directly through the coaxial cable from the receiver. Made of durable zinc cast with a nickel-plated coating, it offers increased resistance to electromagnetic interference and weather conditions. Its compact size allows for easy installation in standard antenna systems.
Features
- Frequency range: 47–1000 MHz
- Gain: 20 ±1.5 dB
- Signal attenuation: 10 dB
- Power supply: 12 V DC
- Current consumption: 40 mA
- Input/output impedance: 75 Ω
- Connectors: F-type
- Operating temperature range: –10°C to +45°C
- Dimensions: 20 × 40 mm
- Housing: zinc cast, nickel-plated
1199806
Manufacturer Prolech sp. z o. o. Stary Puznów 58 B 08-400 Garwolin Poland biuro@prolech.pl
Responsible person Prolech sp. z o. o. Stary Puznów 58 B 08-400 Garwolin Poland biuro@prolech.pl
