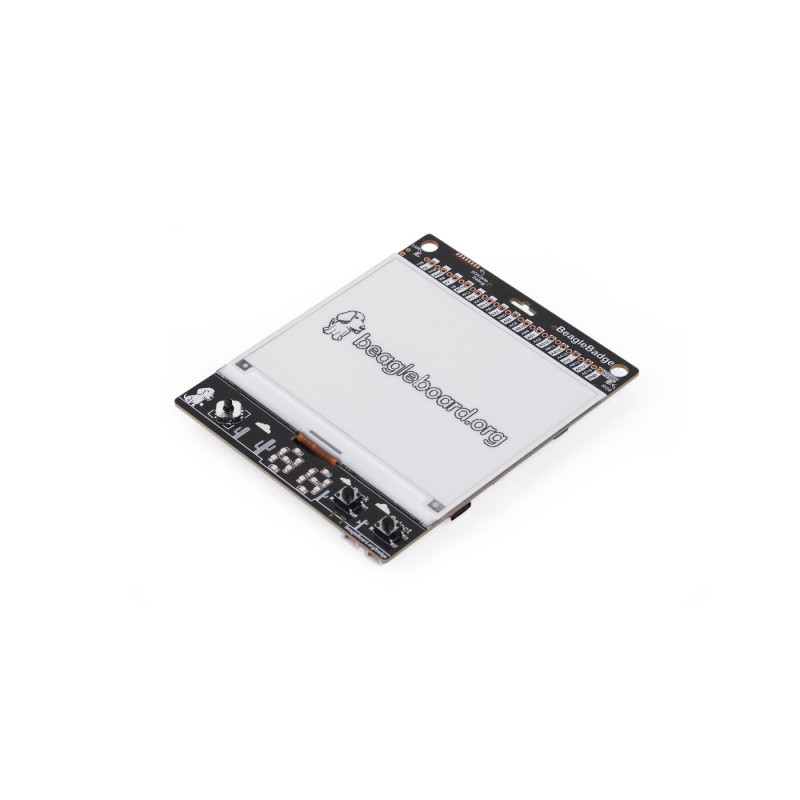

BeagleBadge - development board with TI AM62L32 processor - Seeed Studio 100061953

Description

BeagleBadge is a modern, fully programmable platform designed for IoT, HMI, and portable interactive systems. The device combines high performance with low power consumption thanks to the TI AM62L32 chip, featuring a dual-core Arm Cortex-A53 processor clocked at 1.25 GHz. One of its key elements is a large 4.2" e-paper display, which provides excellent readability with minimal power usage, making it ideal for mobile and long-term applications. BeagleBadge offers an advanced user interface including a 4-direction joystick, touch buttons, RGB LED, and two 7-segment displays, enabling the creation of intuitive and interactive applications. Built-in sensors such as an IMU and ambient light sensor allow development of systems that respond to motion and environmental conditions. The platform is designed for maximum flexibility, offering extensive expansion options via Grove, Qwiic, and mikroBUS connectors.

The device stands out with rich connectivity options, including Wi-Fi 6, Bluetooth 5.2, and LoRaWAN, enabling both local and long-range wireless communication. The use of BeagleMod CC3301 and Wio SX1262 modules ensures stable and efficient connections. The platform supports popular development environments such as Linux, Zephyr RTOS, LVGL, and MicroPython, allowing quick project startup and development of advanced graphical and system applications. Additionally, integration with Meshtastic and ActivityPub enables the creation of off-grid communication systems. Built-in memory includes 2 GB LPDDR4 RAM and 4 GB eMMC, providing sufficient space for applications and data.

With its compact design, extensive connectivity, and rich set of interfaces, BeagleBadge is an excellent tool for building information panels, IoT systems, and portable user interfaces. It is a versatile platform for developers, engineers, and electronics enthusiasts looking to create innovative solutions.

Features

• Processor: TI AM62L32 (low-power SoC for IoT and HMI)
• CPU architecture: Dual-core Arm Cortex-A53 @ 1.25 GHz
• RAM: 2GB LPDDR4 (128M x 16bit, 1600MHz, 3200Mbps)
• eMMC storage: 4GB
• Flash memory: 256Mb OSPI flash
• EEPROM: 32Kb
• Wireless connectivity: Wi-Fi 6 (2.4GHz) and Bluetooth 5.2 (BeagleMod CC3301, MHF4 connector)
• LoRaWAN: Wio SX1262 module (u.FL connector)
• Display: 4.2" e-paper (24-pin FPC connector)
• Additional display interface: 1x MIPI DSI (LCD)
• Sensors: IMU, ambient light sensor, temperature and humidity sensor (not populated)
• Expansion connectors: 1x mikroBUS, 1x Grove, 2x QWIIC
• External ports: USB 2.0 Type-A host, MicroSD card slot
• User interface: reset button, 2 buttons (Back/Select)
• Joystick: 4-direction with push function
• Outputs: passive buzzer
• Indicators: RGB LED, 2x 7-segment displays
• Power supply: USB Type-C (power and debugging)
• Battery connector: compatible with BL-5C (charge level monitoring)
• Supported systems: Linux, Zephyr RTOS
• Supported libraries and environments: LVGL, MicroPython
• Integrations: Meshtastic, ActivityPub
• Dimensions: 111 × 92 × 18 mm
