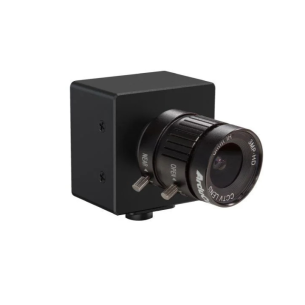

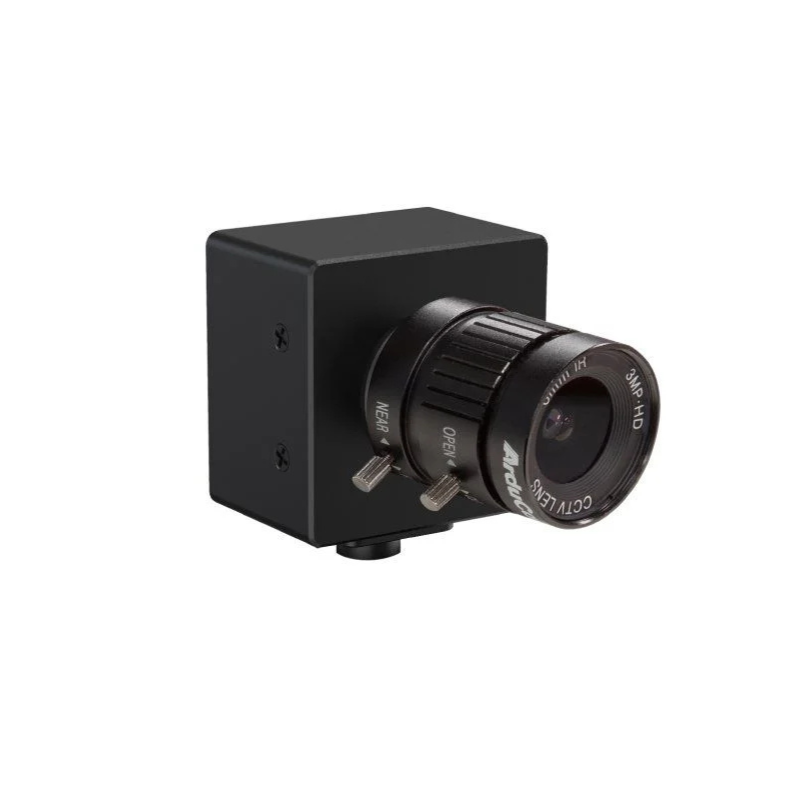

Arducam B0499 IMX296 1.58MP USB3.0 - USB global shutter camera
ID: 1195326
zł921.05
Tax included
zł748.82 tax excl.
USB 3.0 camera with Sony IMX296 1.58 MP global shutter sensor, resolution 1456 x 1088 px at 44 fps, USB-C interface, 6 mm CS lens, YUY2 output, compatible with Windows and Linux without additional drivers. ArduCam B0499
Description
Industrial USB 3.0 camera equipped with a Sony IMX296 1.58 MP global shutter sensor, designed for capturing fast-moving objects without distortion. Global shutter enables simultaneous exposure of the entire frame, eliminating rolling shutter artifacts and ensuring accurate motion reproduction in applications such as machine vision, metrology, 3D scanning and monitoring.
The device outputs uncompressed YUY2 video at a resolution of 1456 x 1088 px with frame rates up to 44 fps via USB 3.0, with backward compatibility for USB 2.0. The camera includes a 6 mm CS mount lens with manual focus and an onboard ISP for image processing. UVC support enables plug and play operation on Windows and Linux systems without additional drivers. Tripod or mounting holder is not included in the package.
Features
- Sensor: Sony IMX296
- Shutter type: Global shutter
- Resolution: 1456 x 1088 px
- Output format: YUY2
- Pixel size: 3.45 µm x 3.45 µm
- Frame rate: 1456 x 1088 @ 44 fps USB 3.0, 10 fps USB 2.0
- Optical format: 1/2.9"
- Lens: 6 mm, CS mount, F1.2
- Field of view: 60° D / 50° H / 38° V
- Focus range: 3 m - ∞
- IR filter: built-in IR-cut filter
- Interface: USB 3.2 Gen 1 Type-C
- Compatibility: UVC
- Supported systems: Windows, Linux
- Supply voltage: 5 V
- Power consumption: 1.62 - 1.89 W
- Operating temperature: 0°C - 70°C
- Dimensions: 34 x 34 mm
Kit includes
- 1 x Arducam B0499 camera with enclosure
- 1 x USB A to USB-C cable 1 m
1195326
Data sheet
- Resolution
- 1456 x 1088 px
- Interface
- USB 3.2
- Sensor
- Sony IMX296
- IR filter
- Yes
- Lens assembly
- CS mount
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
