Nano Base Board (B) for Raspberry Pi CM5 - Waveshare 30581
ID: 1197716
5902186305151
zł73.97
Tax included
zł60.14 tax excl.
CM5-NANO-B is a base board for Raspberry Pi Compute Module 5, offering full functionality in a compact form. With support for high-speed interfaces such as USB 3.2, HDMI 4K, PCIe, and MIPI, it serves as an ideal platform for prototyping and deploying embedded systems. The ability to integrate with DSI/CSI, use external cooling, and connect to a Gigabit Ethernet network makes the board well-suited for industrial, IoT, and consumer applications. Variant suitable for CM5 Lite and eMMC versions – the Compute Module 5 itself must be purchased separately.
Description

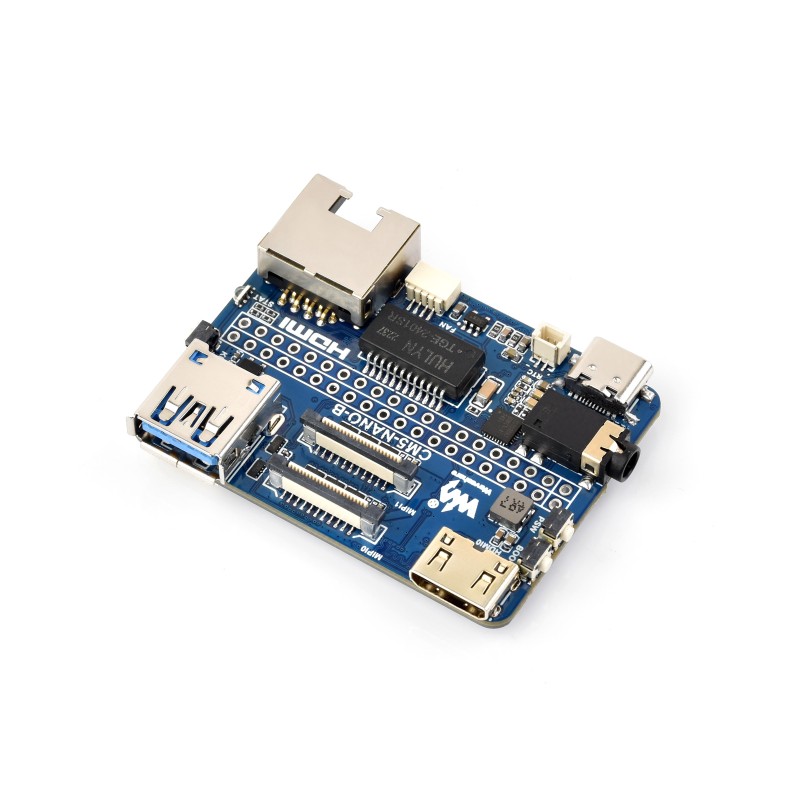

The compact CM5-NANO-B base board is designed for use with the Raspberry Pi Compute Module 5 (CM5). The board shares the same dimensions as the CM5 (55 × 41 mm), enabling integration in space-constrained environments. It is designed as a universal platform for evaluating the functionality of the CM5 or for direct integration into end products. It supports all CM5 variants, including eMMC and Lite (without eMMC) versions. With a range of peripheral interfaces such as USB 3.2, HDMI, MIPI, PCIe, Ethernet, and 40-pin GPIO, it enables the development of advanced embedded and industrial applications.
Features
- Compatibility: all variants of Raspberry Pi Compute Module 5
- Dimensions: 55 mm × 41 mm (identical to CM5)
- Network: Gigabit Ethernet (RJ45)
- USB interfaces: 1× USB 3.2 Gen1 (Type-A)
- Video and audio: 1× mini HDMI (4K), 1× 3.5 mm audio output (USB)
- MIPI: 2× 4-lane interfaces (22-pin 0.5 mm FPC) for DSI/CSI
- PCIe: 16-pin PCIe Gen2/3 x1 connector
- Power: DC 5 V / 5 A
- Storage: TF card slot for Lite version
- Connectors: 40-pin GPIO, 2-pin RTC (JST-SH), 4-pin PWM FAN (JST-SH)
- BOOT button: activates programming mode
- PSW button: power switch
- RGB LED: dual (power and status)
- Additional user button: GPIO21
Included
- CM5-NANO-B base board
- 2× 20-pin colored straight connectors
