Panda PWR Intelligent Power Management Module - intelligent power supply for 3D printers
ID: 1194724
5906623499397
zł163.09
Tax included
zł132.59 tax excl.
An intelligent power management module that optimizes the power supply of 3D printers, offering functions such as remote control via a local network and monitoring of energy parameters. With a shutdown timer and support for up to 10 printers in combination with BIQU Panda Touch, the module increases energy efficiency and simplifies device management, while overvoltage, overcurrent and short circuit protections ensure safe use. BIGTREETECH Panda PWR Intelligent Power Management Module
Description
Panda PWR Intelligent Power Management Module is an advanced solution designed to optimize power management and enhance the efficiency of 3D printers. With features such as remote control via a local network and advanced monitoring of energy parameters, this device is suitable for both beginners and advanced users. Remote management of power, voltage, and USB peripherals can be performed using a mobile phone or computer, significantly improving user convenience. Panda PWR also features a shutdown timer, enabling automatic power-off to enhance energy efficiency. This function operates even offline, ensuring safe operation at all times. Additionally, when paired with the BIQU Panda Touch, the module allows control of up to 10 3D printers simultaneously, increasing productivity and simplifying device management. With two USB ports, Panda PWR offers extended device support, including both intermittent and continuous power supply options to meet various needs. Moreover, the module is equipped with protection systems against overvoltage, overcurrent, and short circuits, ensuring reliable and safe operation.
Features
- IEC-C14 input: 100VAC to 240VAC
- IEC-C13 output: 100VAC to 220VAC
- USB Type-C port: 5V
- Maximum output current: 1.5A + 1.5A
- USB1 control: intermittent power
- USB2 control: continuous power
- Protection against overvoltage, overcurrent, and short circuits
- Compatibility: FDM 3D printers supporting Klipper
- Requirement: Same LAN with the same IP address
- Dimensions: 141.66 x 65.66 x 34.5 mm
- Cable length: 500 mm

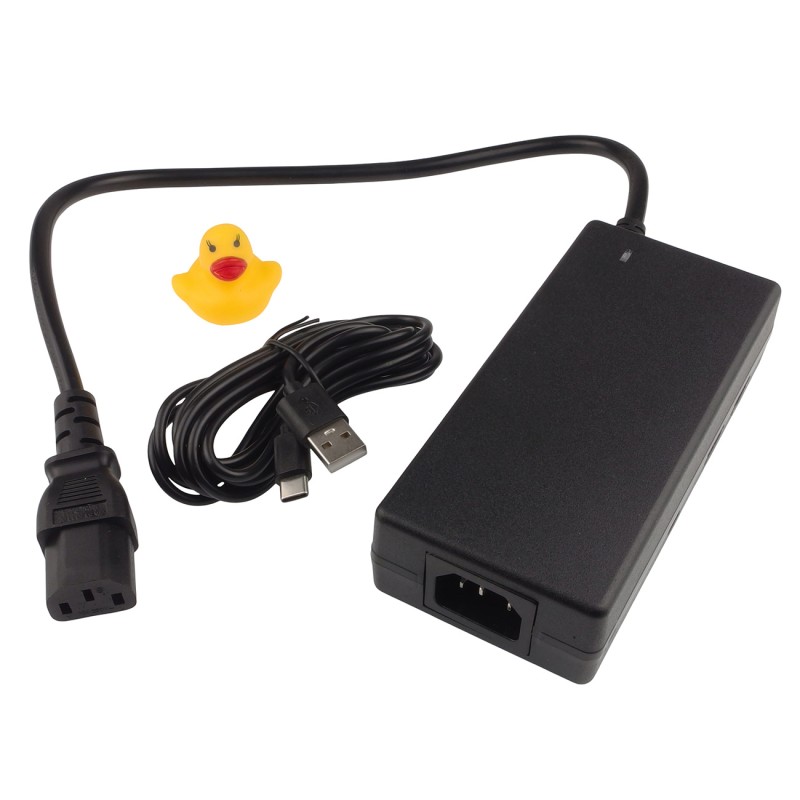

Kit contains
- Panda PWR
- USB-C charging cable
- BTT Duck
