USB-UART (TTL) FT232RNL module with soldered connector - Waveshare 27351
ID: 1196638
5902186303911
zł25.25
Tax included
zł20.53 tax excl.
USB-TO-TTL-FT232-M is a compact USB-to-UART converter with a pre-soldered connector, designed for quick and secure connection to microcontrollers and serial modules. Featuring the FT232RNL chip, ESD protection, and LED indicators, the module is ideal for development, diagnostics, and embedded applications. A perfect choice for embedded systems engineers and prototype developers.
Description

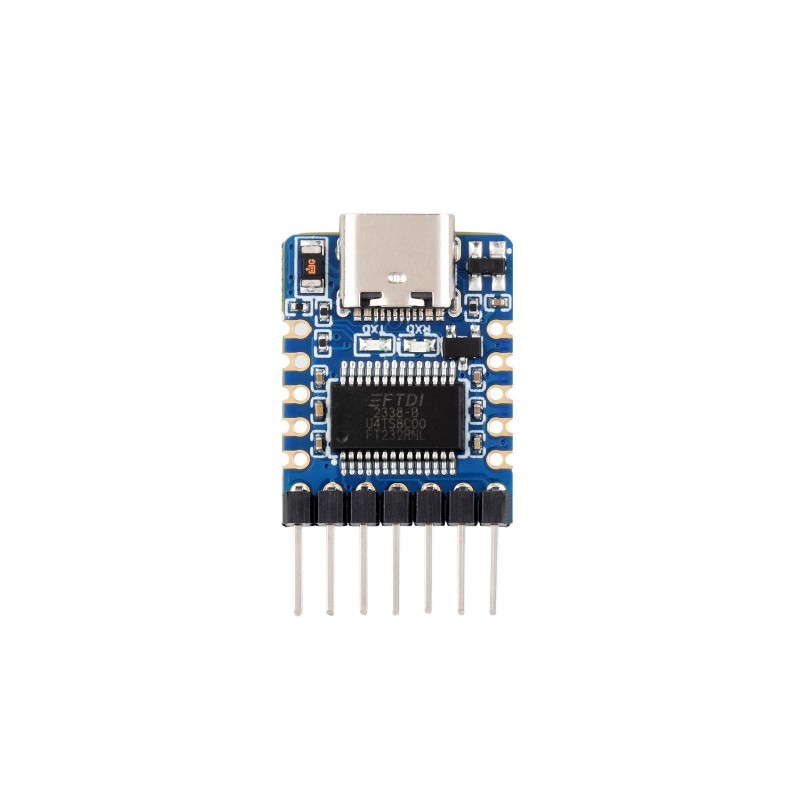

The USB-TO-TTL-FT232-M is a miniature USB-to-UART (TTL) converter based on the FT232RNL chip, featuring a pre-soldered goldpin header for direct connection to prototyping boards and devices with a serial interface. It supports transmission speeds from 300 bps to 3 Mbps and ensures stable communication across various operating systems.
Overvoltage and overload protection is provided by ESD diodes and a resettable fuse. TXD and RXD LED indicators allow for quick transmission diagnostics. The default VCC voltage is 3.3 V, with the option to switch to 5 V via solder pads. The USB Type-C port ensures convenient connection to computers and devices running Windows, Linux, macOS, or Android.
Features
- FT232RNL chip – stable transmission, broad compatibility
- UART speed: 300 bps – 3 Mbps
- Pre-soldered goldpin header – ready for immediate use
- Short-circuit and overvoltage protection – ESD diodes, resettable fuse
- TXD and RXD LED indicators
- Default VCC: 3.3 V, switchable to 5 V via solder pads
- Pinout: TXD, RXD, RTS, CTS, VCC, GND, 5V
- USB Type-C connector – secure and durable connection
- Dimensions: 18 × 21.5 mm
1196638
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
