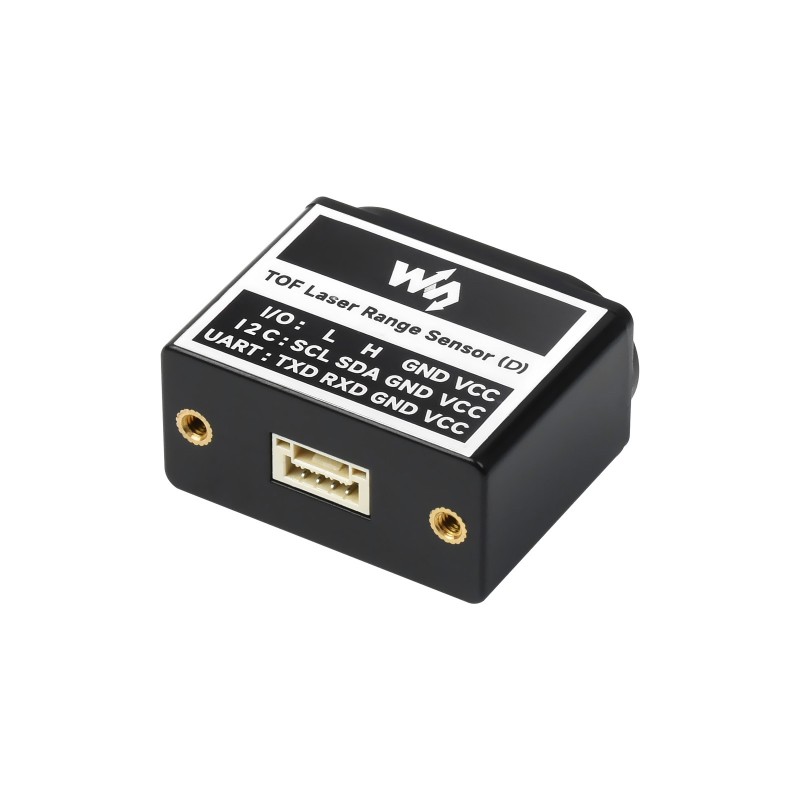

TOF Distance Sensor 40m UART/I2C/IO - Waveshare 28760
ID: 1202995
zł114.91
Tax included
zł93.42 tax excl.
TOF distance sensor with embedded MCU and ranging algorithm, measuring range up to 40 m, accuracy ±3 cm, UART 3.3 V TTL / I2C / IO interface, supply voltage 4.3 - 5.2 V. Waveshare TOF Laser Range Sensor (D)
Description
The Waveshare 28760 uses TOF (time of flight) technology for non-contact distance measurement up to 40 m. The module integrates a microcontroller and ranging algorithm, enabling direct distance data output via UART or I2C without requiring complex calculations on the host system. Typical measurement accuracy reaches ±3 cm across the full operating range.
The sensor operates at a wavelength of 905 nm and features a very narrow field of view of 1° - 2°, improving resistance to ambient light interference and enabling precise measurements in both indoor and outdoor environments. Ambient light tolerance reaches up to 100 000 lx. The module supports UART communication at 3.3 V TTL logic level, I2C bus with cascading capability for up to 8 devices, and an I/O mode in which distance parameters are not provided.
Version 28760 corresponds to the 40 m variant of the TOF Laser Range Sensor series. The module is suitable for distance measurement systems, mobile robotics for obstacle avoidance and route planning, ceiling detection, stacking detection, and industrial automation applications.
Features
- Sensor type: TOF (time of flight)
- Model: TOF Laser Range Sensor (D)

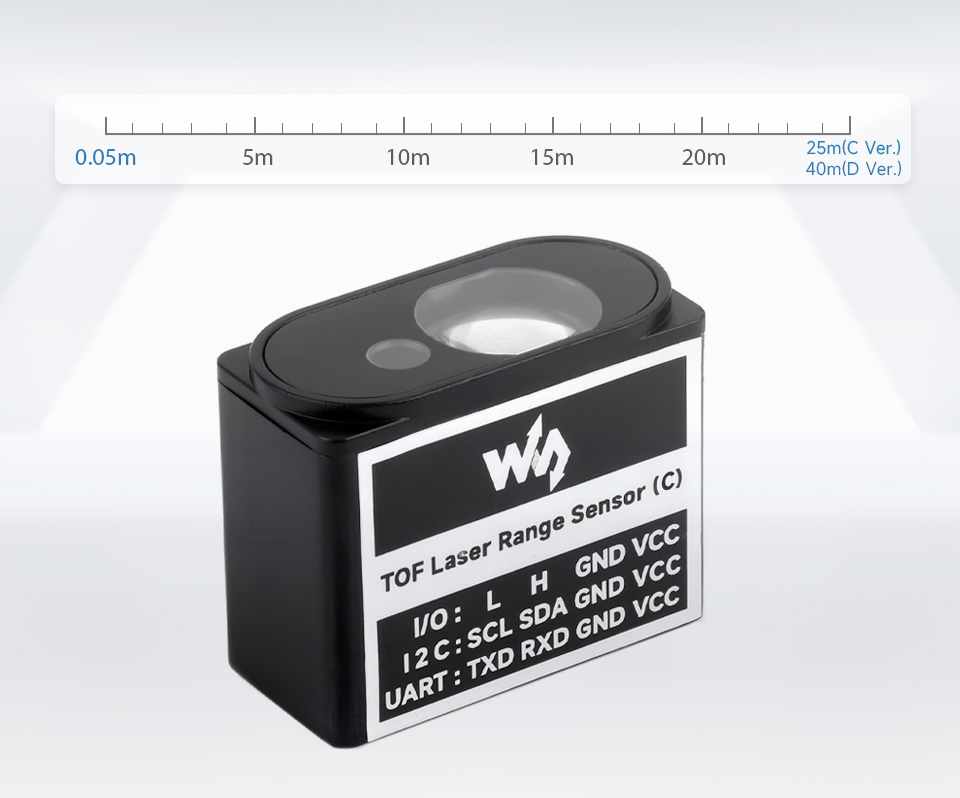

- Measurement range: 0.05 - 40 m
- Typical accuracy: ±3 cm
- Wavelength: 905 nm
- Field of view FOV: 1° - 2°
- Interface: UART 3.3 V TTL / I2C / IO
- I2C address: 0x08 + module ID
- UART baud rate: 4.8 Kbps - 3000 Kbps
- Default UART baud rate: 921.6 Kbps
- I2C speed: up to 400 Kbps
- Supply voltage: 4.3 - 5.2 V
- Power consumption: 250 mW at 5 V
- Weight: 7.5 g
- Operating temperature: -10°C - 60°C
- Dimensions: 22.7 x 28 x 13.6 mm
Kit includes
- TOF Laser Range Sensor (D) 40 m
- GH1.25 4PIN cable
- GH1.25 4PIN squid cable
1202995
Data sheet
- Interface
- I2C/UART
- Type of sensor
- ToF
- Minimum distance
- 5 cm
- Maximum distance
- 40 m
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
